At its heart lies a Beyma coaxial driver, delivering phase-coherent audio and natural vocal reproduction with precise 70° conical dispersion. This custom design provides a more focused and uniform sound field than conventional point-source systems, making GPL-5 ideal for theatres, bars, nightclubs, and live venues.

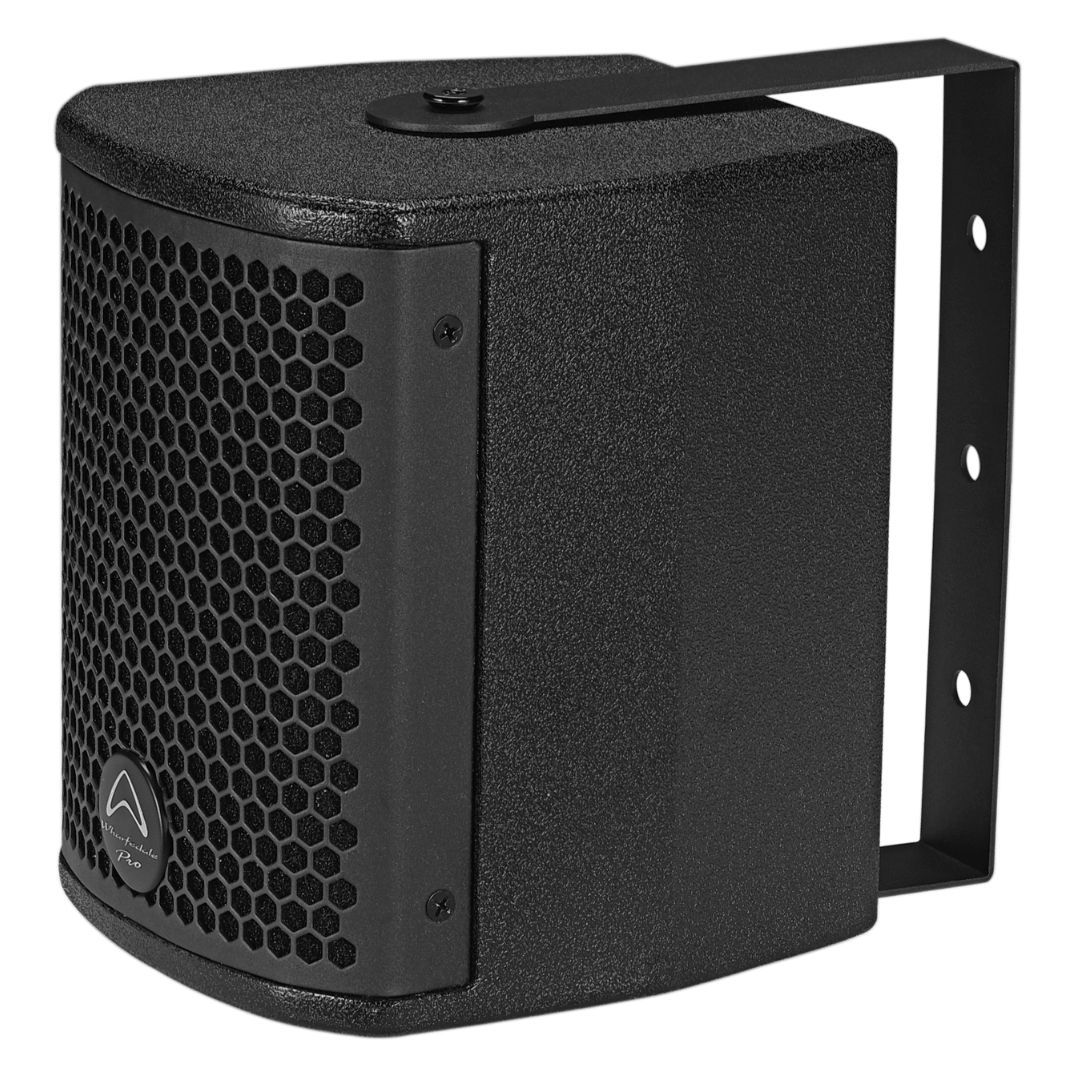

GPL-5 can be quickly fixed to a wall using optional wall brackets or the included steel yoke, allowing for flexible mounting and clean installation. Constructed from birch plywood and finished in black or white, GPL-5 combines durability with a discreet aesthetic suited for architectural integration.

Handling 200 W continuous (800 W peak) power and producing up to 125 dB max SPL @ 1 m, GPL-5 delivers clean, full-range sound with impressive definition. FIR preset libraries and EASE .gll files are available for accurate system design and seamless integration.

Technical Specifications
  • Active or Passive: Passive
  • System Type: Full-Range
  • Configuration: Coaxial 2-way
  • System Continuous Power: 200 W
  • System Programme Power: 400 W
  • System Peak Power: 800 W
  • Max SPL @ 1m: 125 dB
  • Freq Response (+/-3 dB): 80 Hz - 20 kHz
  • Freq Range (-10 dB): 68 Hz - 25 kHz
  • Bi-amp Mode Switch: No
  • Bluetooth: No
  • IP Certification: None
  • Driver Brand: Beyma
  • LF Driver Size: 5"
  • LF Voice Coil Size: 1.5"
  • LF Rated Impedance: 8 Ω
  • LF Power (RE:AES2-2012): 150 W
  • HF Driver Type: Compression Driver
  • HF Voice Coil Size: 1.5"

    HF Diaphragm Material: PM4
  • HF Exit Size: 1"
  • HF Power (RE:AES2-2012): 25 W
  • Preset Library: Yes

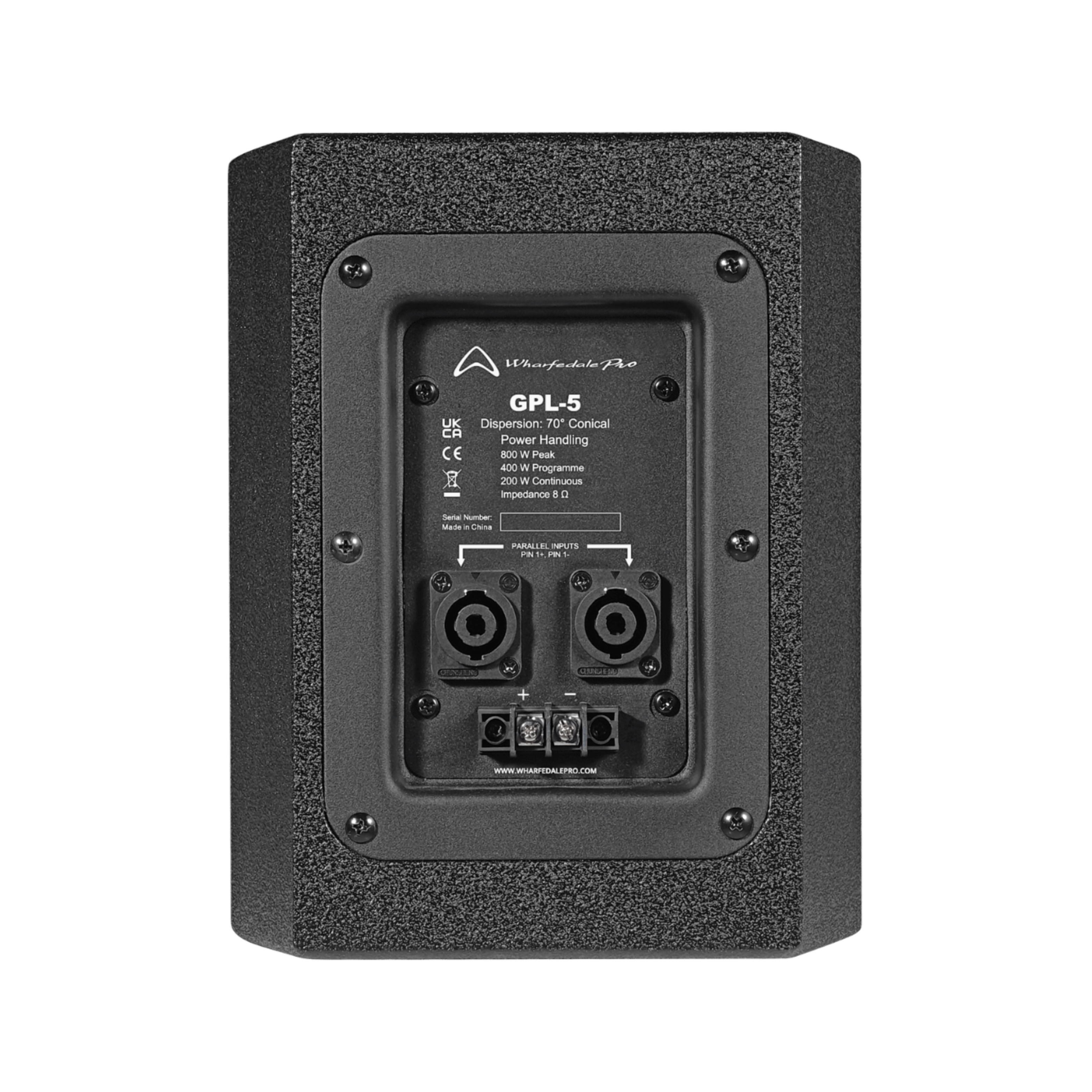

  • Input Connector: 2 x 4 Pole Speaker Connector
  • Waveguide Type: Spherical
  • Enclosure Material: Birch Plywood
  • Grille Material and Finish: Steel Black or White
  • Finish: Black or White Tough-Tone paint
  • Deployment: Flying, Wall Mount
  • Pole Mount: None
  • Brackets Included: Yes
  • Rigging: Yes
  • M8: 4
  • M10: 2
  • Nominal Coverage (H x V): 70° conical
  • Sensitivity 2.83 V / 1 M: 96 dB
  • System Rated Impedance: 8 Ω
