Powered by an 18″ LF driver with a 4.0″ voice coil, GPL-118B combines power and precision, producing tight, controlled bass with excellent transient response. Its finely tuned bass-reflex enclosure enhances low-end output while maintaining clarity and definition, making it ideal for theatres, clubs, and live venues demanding impactful yet refined low-frequency reproduction.

Constructed from birch plywood and finished in durable black or white Tough-Tone paint, GPL-118B integrates seamlessly into fixed installations. 4 pole speaker connectors and barrier strip connectors provide secure, flexible connectivity options for professional audio systems.

Handling 1000 W continuous (4000 W peak) power and achieving 140 dB max SPL at 1 m, GPL-118B delivers deep, powerful performance with the reliability expected from Wharfedale Pro. FIR preset libraries and EASE .gll files are available for accurate system configuration with GPL full-range loudspeakers.

Technical Specifications
  • Active or Passive: Passive
  • System Type: Subwoofer
  • Configuration: Bass-reflex
  • System Continuous Power: 1000 W
  • System Programme Power: 2000 W
  • System Peak Power: 4000 W
  • Max SPL @ 1m: 140 dB (Half Space)
  • Freq Range (-10 dB): 28 Hz - 100 Hz
  • Bi-amp Mode Switch: No
  • Bluetooth: No
  • IP Certification: None
  • Driver Brand: Wharfedale Pro
  • LF Driver Size: 18"
  • LF Voice Coil Size: 4"
  • LF Rated Impedance: 8 Ω
  • LF Power (RE:AES2-2012): 1000 W
  • Preset Library: Yes

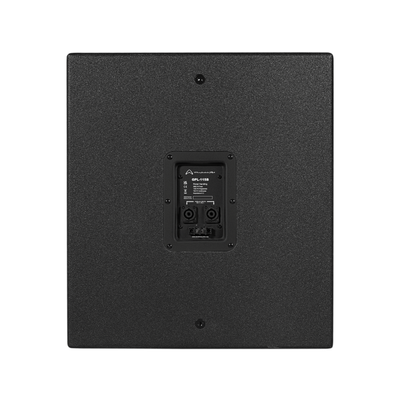

  • Input Connector: 2 x 4 Pole Speaker Connector, 1 x Barrier Strip

    Enclosure Material: Birch Plywood
  • Grille Material and Finish: Steel Black or White
  • Finish: Black or White Tough-Tone paint
  • Handles: 4
  • Deployment: Ground
  • Pole Mount: None
  • Brackets Included: No
  • Rigging: Yes
  • M10: 12
  • Sensitivity 2.83 V / 1 M: Half space 105 dB
  • System Rated Impedance: 8 \(\Omega \)
  • Recommended HPF - BW 18 dB/OCT: 28 Hz
  • Transformer (T): No
  • Included Accessory: Quick Start Guide
