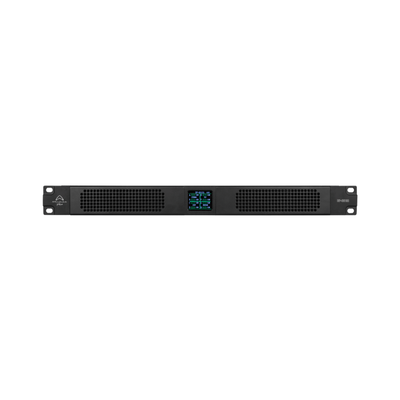

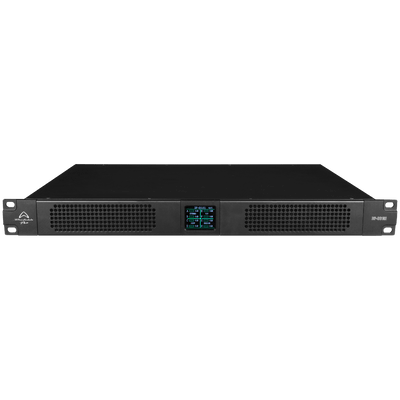

Delivering 150 W per channel across low-impedance (2–8 Ω) and high-impedance (70 V/100 V) systems, it can also operate in Bridge mode for up to 4 x 300 W, offering outstanding adaptability for complex multi-zone setups. A 1.8″ colour display on the front panel provides quick access to system status and configuration, while a removable grille allows for easy maintenance and a clean, professional appearance.

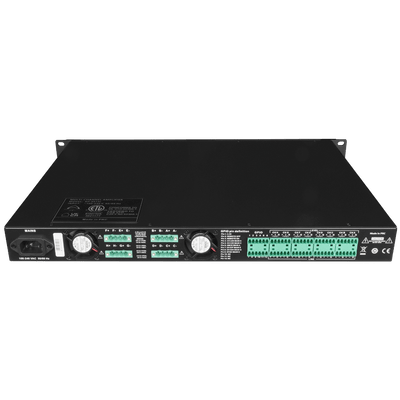

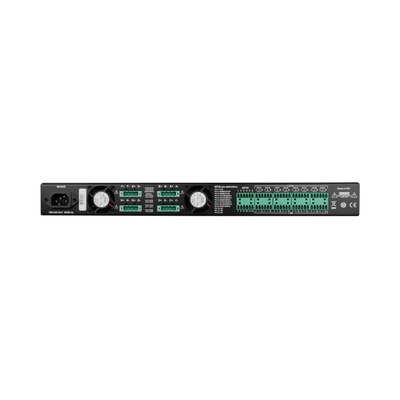

Equipped with GPIO functionality for remote control and linking, along with Phoenix connectors for inputs, outputs and remote level adjustment, installation is simple and secure. With built-in protection against overload, short-circuit and thermal faults, the compact 1U DP-8015i delivers dependable power and precision for professional installation environments.

Technical Specifications
  • Amp Channels: 8
  • Topology: Class D
  • Stable at 2 Ohms: Yes
  • 8Ω: 8 x 150 W
  • 4Ω: 8 x 150 W
  • 2Ω: 8 x 150 W
  • 16Ω Bridged: 4 x 300 W
  • 8Ω Bridged: 4 x 300 W
  • 4Ω Bridged: 4 x 300 W
  • Control: GPIO
  • Input Connectors: Phoenix MC 1, 5/12-ST-3, 81
  • Output Connectors: Phoenix PC 5/8-STF1-7, 62
  • Link Connectors: Phoenix MC 1, 5/6-ST-3, 81
  • Mode Switch: Lo-Z / Hi-Z / 100 V / 70 V / Mono / Bridge Mode
  • DSP Features: None
  • Hi-Z: Yes
  • 100V Hi-Z: 8 x 150 W

    70V Hi-Z: 8 x 150 W
  • Input Gain/Sensitivity Switch: 0.775 V / 1 V
  • Slew Rate: >50 V / us
  • Output RMS Voltage (V): 34.7 V
  • THD+N: Typical: 0.05% (10% Rated Power, 8 Ω)
  • Crosstalk: ≥70 dB (20 Hz-1 kHz, Below Rated Power)
  • Amplifier Frequency Response: Lo-Z Typical: ±0.5 dB (10% Rated Power, 20 Hz-20 kHz); Hi-Z Typical: ±0.5 dB (10% Rated Power, 40 Hz-16 kHz)
  • Amplifier Input Impedance: 20 kΩ (Balanced), 10 kΩ (Unbalanced)
  • Damping Factor: Typical: 300 (20 Hz-200 Hz, Lo-Z, 8 Ω)
  • SNR: ≥100 dB (A weighted, 20 Hz-20 kHz, 8 Ω)
  • Protection: Under voltage, DC, Over temperature, Limiter, Overload, Short.
  • Main Power: 100-240 V AC, ±10%, 50/60 Hz
  • Included Accessory: User Manual, 4 x rubber feet, 10 x 6P Plug-in connector, pitch: 3.81 mm, 4 x 4P Plug-in connector, pitch: 7.62 mm, AC Power cord
