Product details

More Information

The DSP Controller software provides powerful functionality for both DP-F and DP-N Series amplifiers. It offers amp grouping, precise EQ and level control, and access to a comprehensive preset library. With built-in SMAART API compatibility, it integrates seamlessly with leading system analysis tools for fast, efficient tuning and optimisation.. Available to download below.

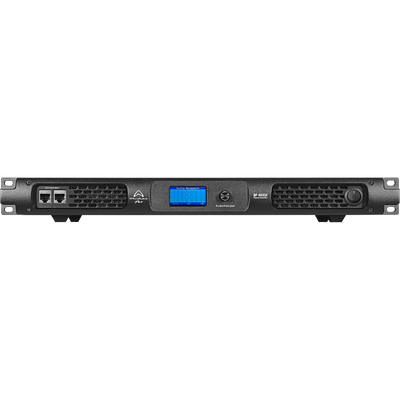

Compact, efficient and road-ready, DP-4035F delivers powerful Class D performance with intuitive digital control, making it a reliable choice for professionals seeking flexibility and precision in one streamlined package.

Technical Specifications

Power Output(Measured at THD=1%, 1 kHz, all channels driven simultaneously)Audiomaxx India +1

  • 8Ω Stereo: 4 x 350 W
  • 4Ω Stereo: 4 x 595 W
  • 2Ω Stereo: 4 x 1010 W
  • 16Ω Bridged: 2 x 700 W
  • 8Ω Bridged: 2 x 1190 W
  • 4Ω Bridged: 2 x 2020 W
  • 100V Bridged: 2 x 2020 W
  • 70V Bridged: 2 x 1225 W
    Audio Performance
  • DSP/Network: Internal DSP with FIR filtering (512 taps); Dual Ethernet ports for remote control
  • SNR: ≥105 dB (Default Gain, A-weighted, 20 Hz–20 kHz, 8Ω)
  • THD+N: 0.05% (10% power, 8Ω)
  • Freq Response: 20 Hz – 20 kHz (+0, -0.5 dB)
  • Damping Factor: ≥1000 (20 Hz – 200 Hz, 8Ω)
  • Slew Rate: >50 V/μs
  • Input Impedance: 20 kΩ (Balanced), 10 kΩ (Unbalanced)
  • Max Input Level: +21 dBu (8.7 Vrms)

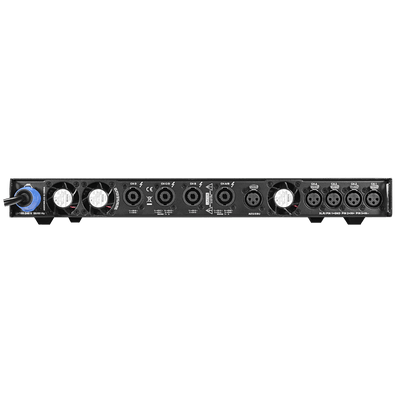

    Physical & Connectivity
  • Inputs: 4 x XLR, AES/EBU, Dual RJ45 Ethernet
  • Outputs: 4 x speakON compatible
  • Dimensions (W x H x D): 483 x 45 x 376 mm (1U Rack)
  • Net Weight: 8.0 kg
  • Mains Power: 90–260 V AC, 50/60 Hz
