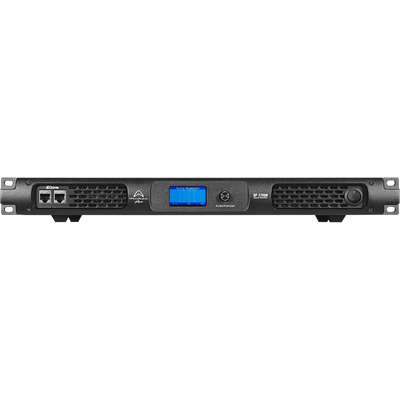

WHARFEDALE PRO DP 2200 N
WHARFEDALE PRO DP 2200 N
WHARFEDALE PRO DP 2200 N

WHARFEDALE PRO DP 2200 N

Stable down to 2 Ohms and with huge Class D power, the DP-2200N is a 2-channel amplifier from our DP-N Series, combining advanced DSP control and Dante® connectivity for professional live sound and fixed installation systems.

Delivering 2000 W per channel at 8 Ω, 3400 W at 4 Ω, and up to 9520 W bridged at 4 Ω, it provides exceptional headroom and stability across demanding applications. The DP-N Series introduces major upgrades including an IPS colour display, updated DSP controller software with expanded internal functions, locking XLR connectors and AES/EBU digital inputs — giving engineers precise control and flexible signal routing.

Enquire Now

Product details

More Information

The DSP Controller software provides powerful functionality for both DP-F and DP-N Series amplifiers. It offers amp grouping, precise EQ and level control, and access to a comprehensive preset library. With built-in SMAART API compatibility, it integrates seamlessly with leading system analysis tools for fast, efficient tuning and optimisation.. Available to download below.

Supporting both 70 V and 100 V Hi-Z operation, DP-2200N integrates seamlessly into large distributed systems. Designed for reliability, efficiency and clarity, it’s a powerhouse amplifier that delivers next-generation control and performance in a robust, touring-ready format.

Technical Specifications

Power Output(Measured at THD=1%, 1 kHz, all channels driven simultaneously)

  • 8Ω Stereo: 2 x 2000 W
  • 4Ω Stereo: 2 x 3400 W
  • 2Ω Stereo: 2 x 4760 W
  • 16Ω Bridged: 1 x 4000 W
  • 8Ω Bridged: 1 x 6800 W
  • 4Ω Bridged: 1 x 9520 W
  • 100V Hi-Z: 2 x 3400 W
  • 70V Hi-Z: 2 x 2400 W

Audio Performance

  • DSP/Network: Internal DSP with FIR filtering (512 taps); Dante™ (4x4) enabled
  • SNR: ≥105 dB (Default Gain, A-weighted, 20 Hz–20 kHz, 8Ω)
  • THD+N: 0.05% (10% power, 8Ω)
  • Freq Response: 20 Hz – 20 kHz (+0, -0.5 dB)
  • Damping Factor: ≥1000 (20 Hz – 200 Hz, 8Ω)
  • Slew Rate: >50 V/μs
  • Input Impedance: 20 kΩ (Balanced), 10 kΩ (Unbalanced)
  • Max Input Level: +21 dBu (8.7 Vrms)

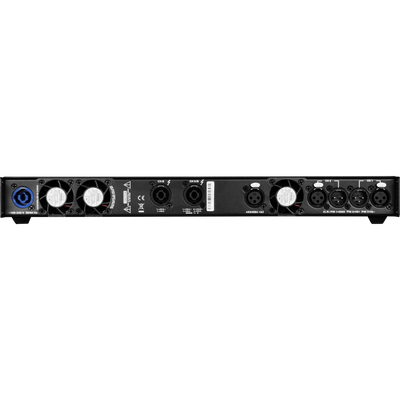

    Physical & Connectivity
  • Inputs: 2 x XLR, Dante™, AES/EBU
  • Outputs: 2 x speakON compatible
  • Dimensions (W x H x D): 483 x 45 x 376 mm (1U Rack)
  • Net Weight: 9.3 kg
  • Mains Power: 90–260 V AC, 50/60 Hz
