Product details

More Information

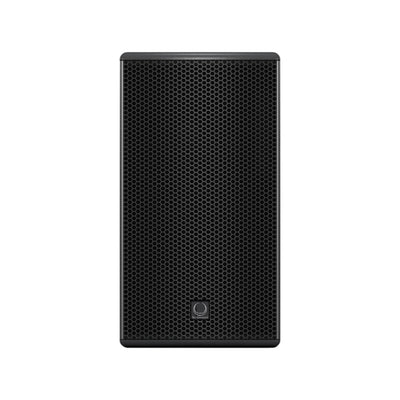

  • 2-way full-range loudspeaker designed for portable PA and installation applications
  • 150W continuous power handling and 600W peak power capacity
  • Suitable for front-fill and stage monitor applications
  • Equipped with a 6.5" low-frequency driver with low-mass voice coil for enhanced transient response
  • Features an aluminum dome 1" neodymium compression driver
  • Rotatable converging elliptical waveguide with 100° horizontal x 60° vertical dispersion
  • Constructed with a 12mm birch plywood enclosure
  • Finished with durable semi-matte black paint coating
  • Rugged powder-coated perforated steel mesh grille for driver protection
  • Multiple internal rigging points for bracket mounting and suspension in any orientation
  • Neutrik speakON NL4 connectors for reliable and long-life connectivity
Technical Specifications
  • Frequency Response (±3 dB): 80 Hz – 18 kHz
  • Frequency Range (-10 dB): 65 Hz – 20 kHz
  • Nominal Dispersion: 100° x 60° (H x V) @ -6 dB points, rotatable
  • Directivity Factor (Q): 8
  • Directivity Index (DI): 9
  • Power Handling: 150 W continuous / 600 W peak
  • Sensitivity: 88 dB (1 W @ 1 m)
  • Maximum SPL: 110 dB continuous / 116 dB peak
  • Nominal Impedance: 16 Ohms
  • Crossover Type: Passive
  • LF Driver: 1 x 6" (162 mm) low-frequency driver
  • HF Driver: 1 x 1" (25 mm) compression driver
