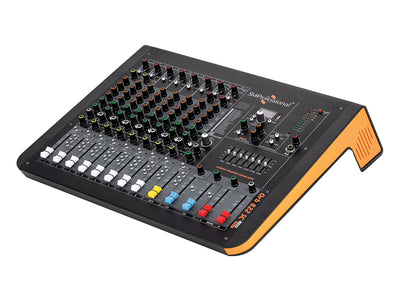

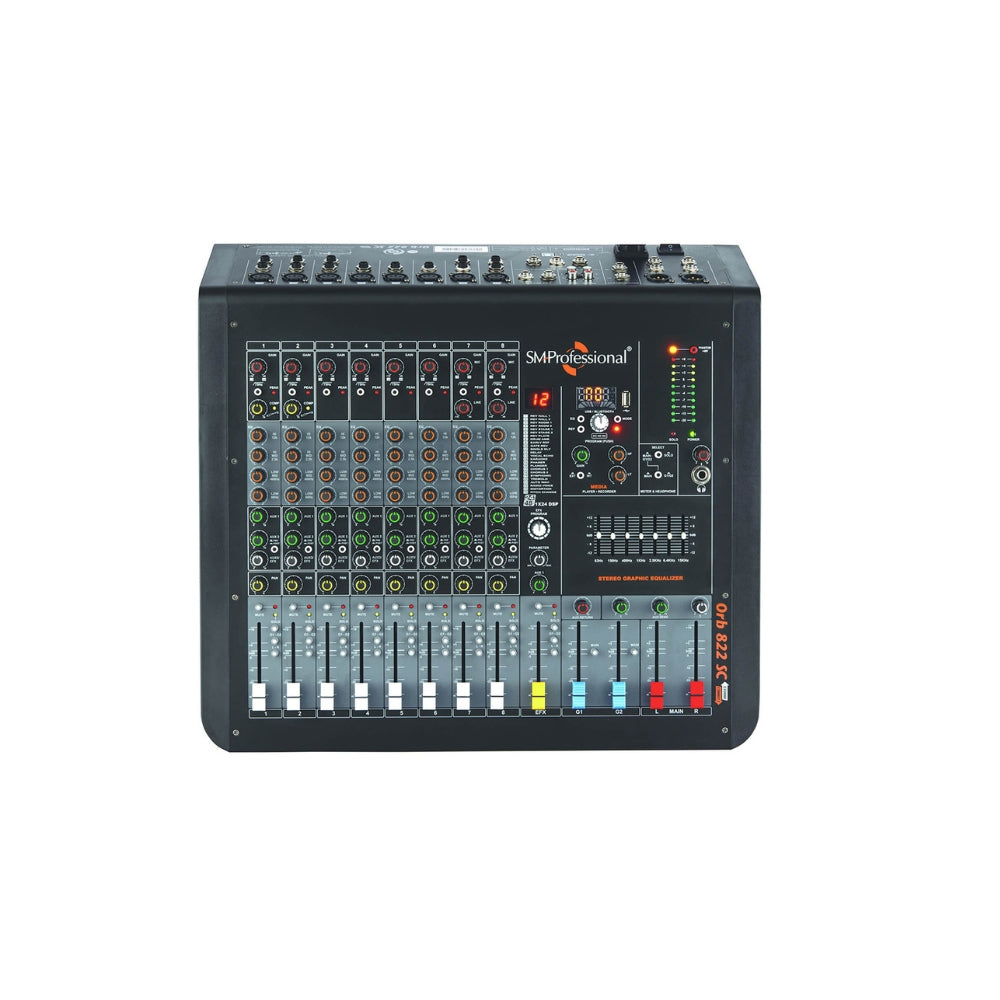

The Orb 822 SC is a compact 8 channel mixer with dual functionality of playback and recording on a pen drive or on a PC via USB audio interface, One Knob compression, DSP-based multi-EFX processor and a host of professional-grade features for live, install and recording applications.

Enquire Now

Product details

Technical Specifications

  Professional 8 channel audio mixing console with 8 mic / 10 line inputs.

•   MON:Ster (mono-stereo) inputs for full flexibility.

•   Gain with ultra low-noise preamps with wide headroom and dynamic range.

•   One Knob Compressor on 2 channels.

•   Built-in multi-EFX processor with 24 DSP presets and editable parameters.

•   Provisions to route EFX to monitor via Aux 1.

•   Dual USB audio interface with plug & play connectivity for recording and playback using a PC.

•   USB MP3 media player & recorder with Bluetooth.

•   Level control, 2-band EQ with internal/external media input selection.

•   4-band EQ on all inputs.

•   Insert (send/return) on first 3 mono channels and master output.

•   3 Aux sends (2 pre/post & 1 post) with stereo Aux returns.

•   2 sub groups with individual ¼” outputs.

•   Balanced XLR and ¼” jack main outputs.

•   Mute, solo, group (G1-G2) and main (L-R) routing per channel.

•   Peak, comp, mute and solo LEDs per channel.

•   Stereo RCA input and record output.

•   7-band stereo graphic equalizer on main output.

•   ¼” headphone output with level control.

•   Globally switched +48V Phantom power supply.

•   Responsive 60mm faders.

•   Dual 10-segment LED meter for main, group and solo outputs.

•   Ergonomic angled-design for better visibility.

•   Clutter-free rear panel input and output connectivity.
