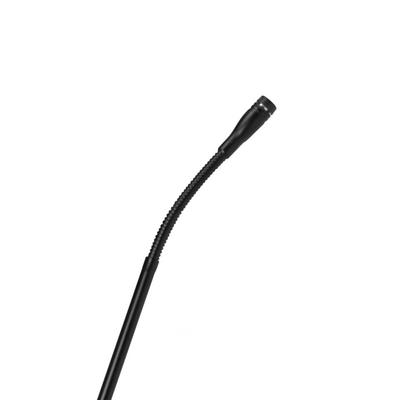

SHURE MX424/C
SHURE MX424/C

SHURE MX424/C

The right speech doesn’t just inform. It can excite and even transform those who hear it. So, we designed the MX424 to treat spoken audio with the detail and respect it deserves. The MX424 provides clarity that commands attention, with maximum length to accommodate deep tables and expansive work surfaces.

Enquire Now

Product details

More Information

In the Box

  • 1 65B8264 Flange
  • 1 65B8265 Retainer
  • 1 80A439 Isolation Ring
  • 1 RK412WS Snap-fit Foam Windscreen (1 furnished, 4 in replacement kit)
  • 1 A400SM Shock Mount
  • 1 80A67 Hex Wrench #4
Technical Specifications

Specifications

Type

Electret Condenser

Frequency Response

50–17000 Hz

Polar Pattern

MX412/C, MX418/C, MX424/CCardioidMX412/S, MX418/S, MX424/SSupercardioid

Output Impedance

180 Ω

Output Configuration

Active Balanced

Sensitivity

@ 1 kHz, open circuit voltage

Cardioid–35 dBV/Pa(18  mV)Supercardioid–34 dBV/Pa(21  mV)

1 Pa=94 dB SPL

Maximum SPL

1 kHz at 1% THD, 1 kΩ load

Cardioid124 dBSupercardioid123 dB

Self Noise

A-weighted

Cardioid28 dB SPLSupercardioid27 dB SPL

Signal-to-Noise Ratio

Ref. 94 dB SPL at 1 kHz

Cardioid66 dBSupercardioid68 dB

Dynamic Range

1 kΩ load, @ 1 kHz

96 dB

Common Mode Rejection

10 Hz to 100 kHz

45 dB, minimum

Clipping Level

at 1% THD

–6 dBV (0.5 V)

Polarity

Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector

Mute Switch

MX412S/MX418S

–50 dBminimum
