SHURE KSM8/B

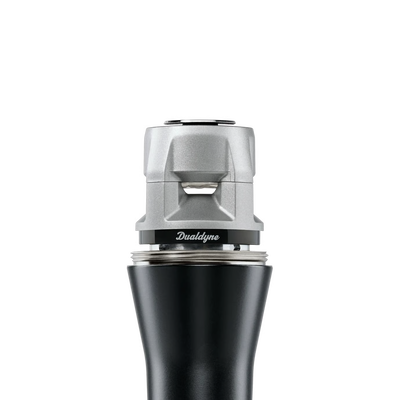

• Patented cartridge design features two ultra-thin diaphragms (one active and one passive) and a groundbreaking inverted airflow system
• Exceptional control of proximity effect greatly increases working distance without on-axis coloration
• Neutral mid- and high-frequency reproduction due to controlled proximity effect results in the most natural-sounding dynamic microphone available
• Neodymium magnet resides in a micro-injection mold of aerospace SoftMag material, maximizing the magnetic field for the highest output level
• Re-imagined Shure Pumping Pneumatic Shock Mount features tuned cavities, specific resistances, and precisely machined components fully integrated into the cartridge's acoustic properties, delivering exceptional rejection of handling noise without any loss of low-frequency response
• Patent-pending Diaphragm Stabilization System technology protects and stabilizes the active diaphragm from unwanted movement from plosives or impact
• Dent-resistant, hardened carbon-steel grille design lined with hydrophobic woven fabric provides exceptional water, plosive and wind protection

Meticulously crafted for world-class vocal performances and presentations in elite venues, the KSM8 Dualdyne is the revolutionary dynamic microphone that only Shure could make.

Type

Dual Diaphragm Dynamic (moving coil)

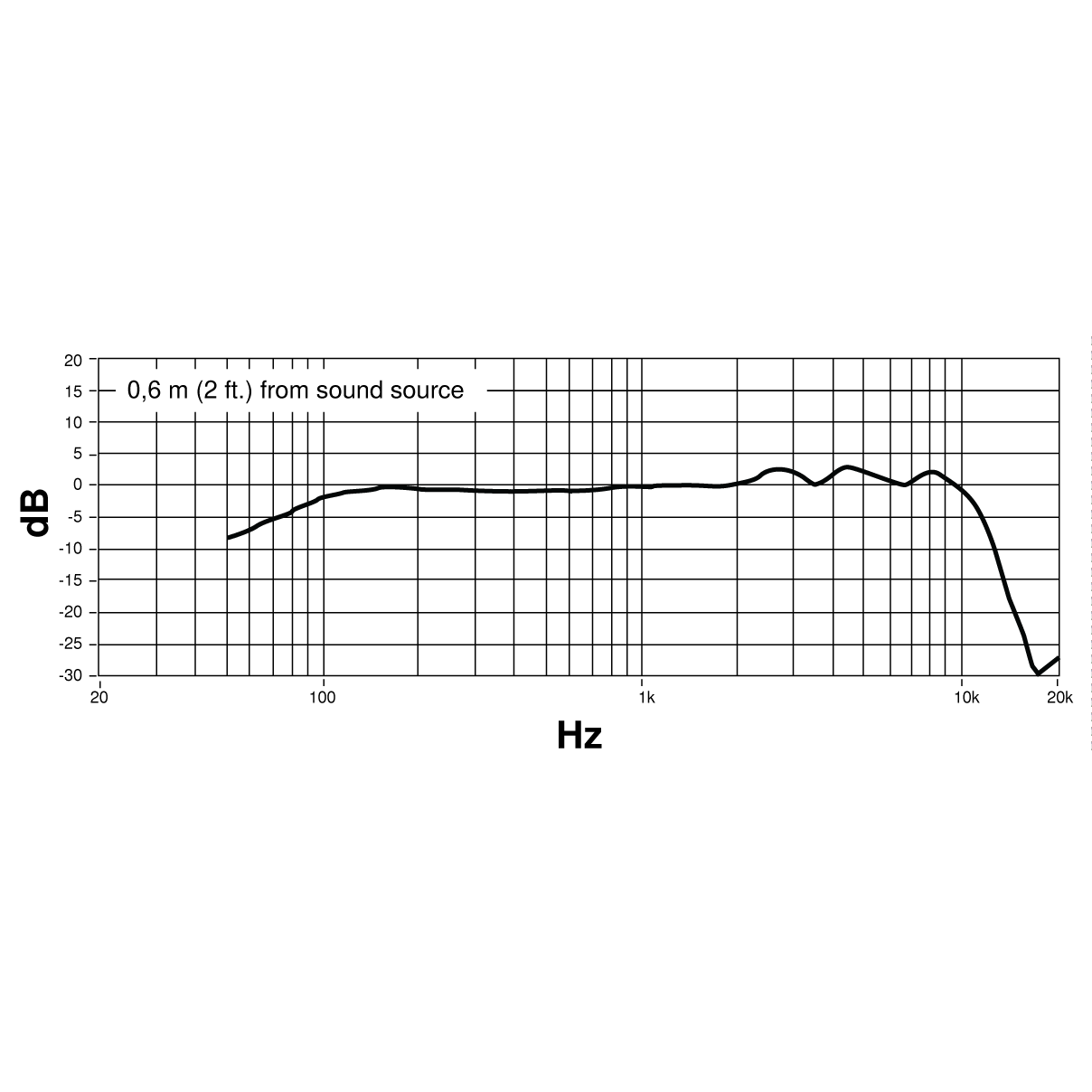

Frequency Response

40 to 16,000 Hz

Polar Pattern

Cardioid

Output Impedance

300 Ω

Sensitivity

at 1 kHz, open circuit voltage

-51.5 dBV/Pa[1] (2.66 mV)

Polarity

Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3

Net Weight

330 g (11.64oz.)

Connector

Three-pin professional audio (XLR), male

Housing

Die-cast Aluminum with Paint or Brushed Nickel Finish

[1] 1 Pa=94  dB SPL
