Key features include:*Stated features require Firmware Version 3.0 or greater

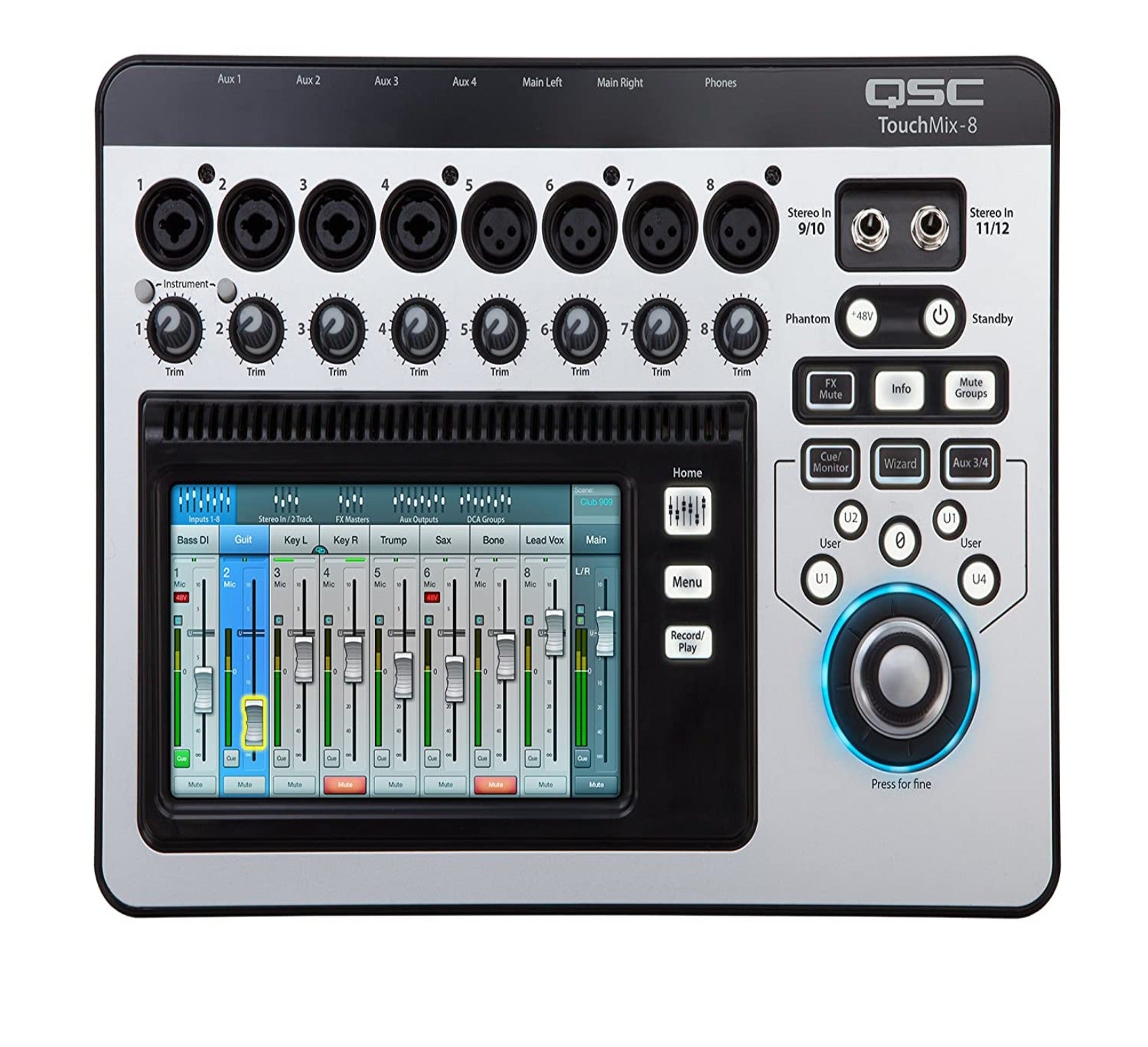

  • Capacitive touchscreen offers a wealth of on-screen information while also providing confident hands-on control
  • 120 presets provide real-world live sound settings for commonly-used instruments and microphones (see Presets Listing under Resources / Support)
  • Simple and Advanced modes offer either basic or comprehensive controls
  • Anti-Feedback and Room Tuning Wizards simplify complex equalization tasks
  • Real-time analyzer (RTA) provides instantaneous display of channel tonal balance and room response
  • 4 Aux outputs provide ample monitor configuration options
  • 14-channel direct-to-hard drive record/playback — capture and recall performances without the need for an external computer
  • MP3 playback direct from USB
  • On-board multi-language user guide
  • Download future upgrades directly from the Internet
Technical Specifications

Tech Specs

  • Type:Digital
  • Channels:14
  • Inputs - Mic Preamps:4 x XLR/TRS Combo, 4 x XLR
  • Phantom Power:8 channels
  • Inputs - Line:2 x 1/4" (TRS, Stereo)
  • Inputs - Other:Stereo USB / MP3 playback

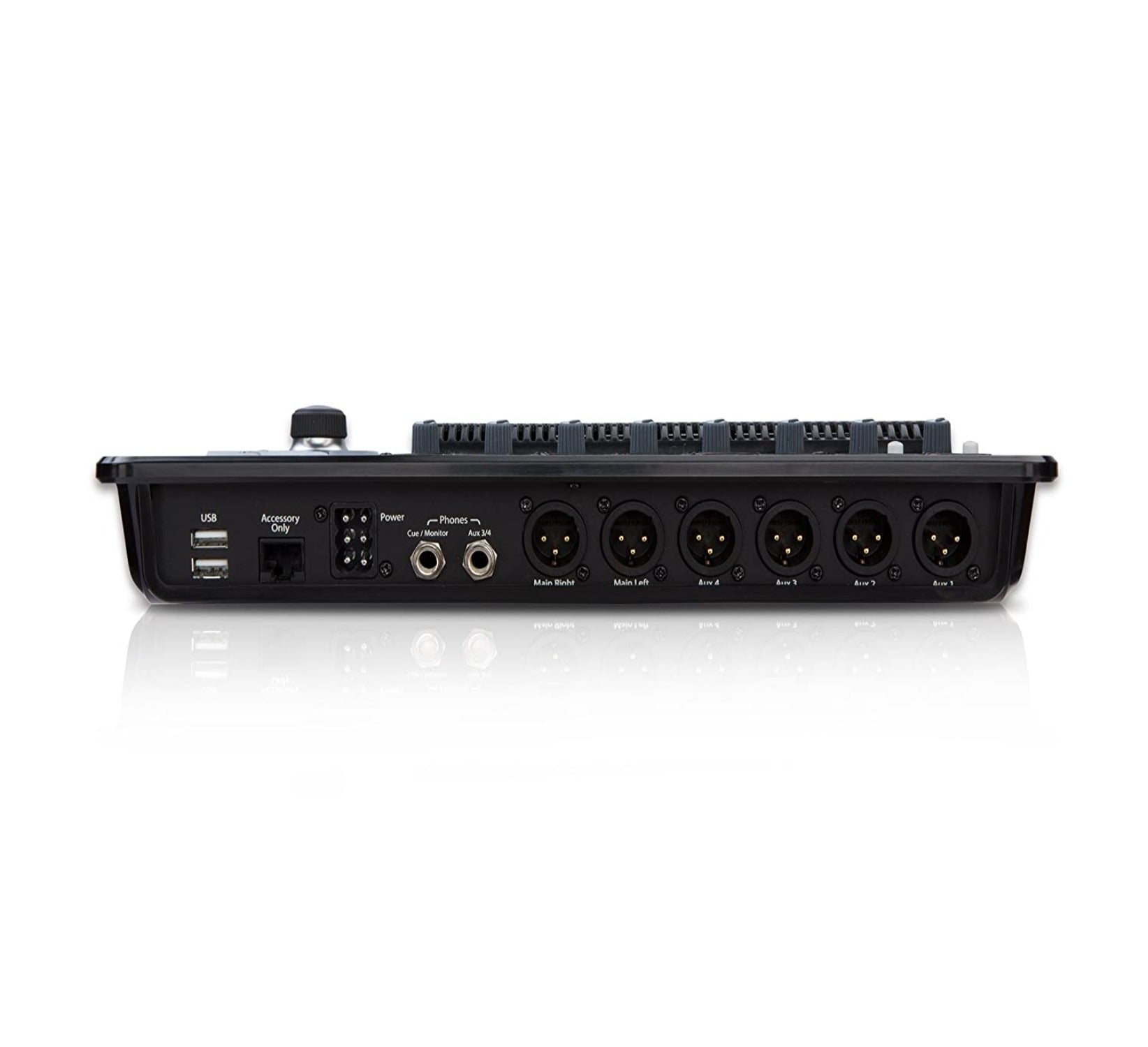

  • Outputs - Main:2 x XLR
  • Outputs - Other:4 x XLR (Aux)
  • Aux Sends:6 x External, 4 x Internal (FX)
  • Busses/Groups:8 x DCA Groups (With Mute), 8 x Mute Groups
  • Headphones:2 x 1/4"
  • USB:2 x Type A
  • EQ Bands:4-band Parametric (Per Channel), 1/3-octave Graphic (Main/Aux Outputs)
  • Effects:Reverb, Chorus, Delay, Echo, Pitch Correct
  • Screen:7" Color Touch Screen
  • Rackmountable:Yes (kit sold separately)
  • Height:3.1"
  • Depth:9.8"
  • Width:13.1"
  • Weight:4.3 lbs.
