QSC TouchMix 16

QSC TouchMix 16

TouchMix® is quite simply the most powerful, compact mixer ever created. It offers the features, capabilities and sound quality of the world's most esteemed large format consoles in a highly compact and portable package that’s small enough to be carry-on luggage. Perfect for musicians, bands, AV production professionals and small performance venues, the TouchMix-16 goes "Beyond Mixing" by offering Wizards, Presets and other beneficial tools that help both seasoned audio professionals and novices alike get great results quickly and easily.

Its 22 mixing channels (16 Mic/Line, 4 Line, Stereo USB) and 12 outputs offer ample signal management flexibility while advanced features such as class-A microphone preamps, Anti-Feedback and Room Tuning Wizards, real-time analyzer (RTA) and 20-channel direct-to-external-drive recording make it equally competent as both a professional live sound or recording tool.

The touch-and-turn interface of TouchMix allows for tactile control over fader and mixer parameters while also providing a hardware connection to the mixer. Mixer functions and displays are duplicated via iOS® or Android® devices over Wi-Fi, providing both portable, wireless connectivity as well as additional control of mixer functionality.

The TouchMix-16 comes complete with USB Wi-Fi adapter and carrying case.

More Information

QSC TouchMix-16 Features:

  • Large touchscreen for hands-on control and intuitive navigation
  • Anti-feedback and Room Tuning Wizards speed up your workflow by simplifying repetitive and complex equalization tasks
  • Built-in Real Time Analysis Tools identify sonic trouble fast with 2 individual Real Time Analyzers
  • Record all input channels direct to an external hard drive, no computer required
  • Outstanding sound quality from Class A mic preamps
  • All outputs are equipped with 1/3-octave graphic EQ, 6-band parametric EQ, limiter, delay, and 8-band notch filter
  • Mono mix outputs can also be configured as stereo pairs for stereo monitoring
  • Over 100 presets for instruments, microphones, and other audio sources make show setup fast and easy, especially for novice mixers
  • Connect wirelessly to iOS or Android devices with included Wi-Fi adapter
  • Carry case included

Technical Specification

Tech Specs

  • Type:Digital
  • Channels:22
  • Inputs - Mic Preamps:4 x XLR-1/4" combo, 12 x XLR
  • Phantom Power:16 x Channels
  • Inputs - Line:2 x 1/4" TRS (stereo inputs)
  • Inputs - Other:Stereo USB / MP3 playback

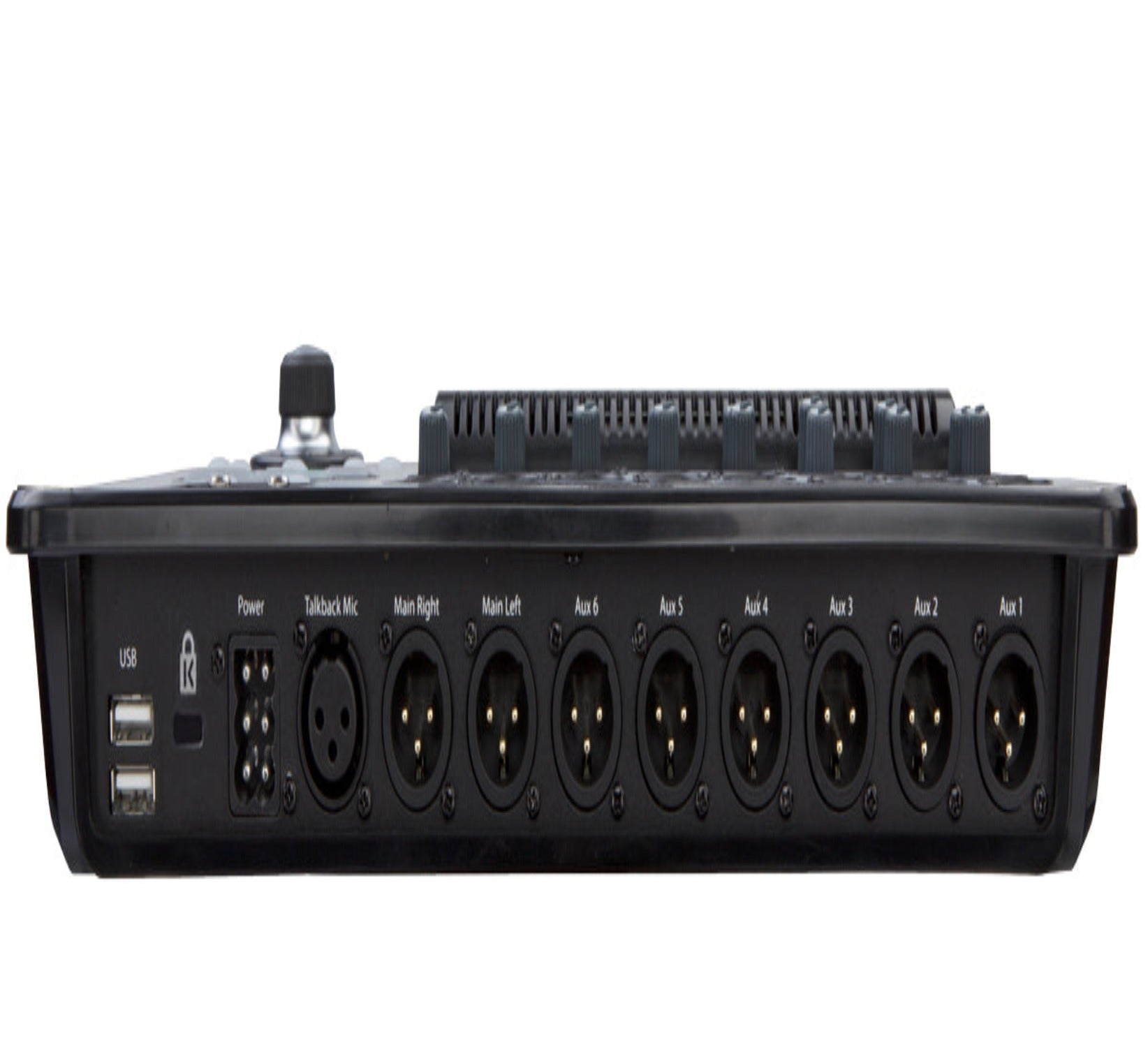

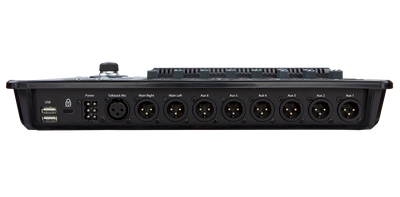

  • Outputs - Main:2 x XLR
  • Outputs - Other:6 x XLR (aux), 2 x 1/4" TRS (stereo aux out)
  • Aux Sends:8 x External, 4 x Internal (FX)
  • Busses/Groups:8 x DCA Groups (With Mute), 8 x Mute Groups
  • Talkback:Yes, 1 x XLR
  • Headphones:2 x 1/4"
  • Computer Connectivity:2 x USB Type A (one reserved for Wi-Fi plug)
  • EQ Bands:4-band Parametric (Per Channel), 1/3-octave Graphic (Main/Aux Outputs)
  • Effects:Reverb, Chorus, Delay, Echo, Pitch Correct
  • Screen:Color Touch Screen
  • Rackmountable:Yes (kit sold separately)
  • Height:2.3"
  • Depth:11.5"
  • Width:14.2"
  • Weight:5.9 lbs.
  • Manufacturer Part Number:TOUCHMIX-16
