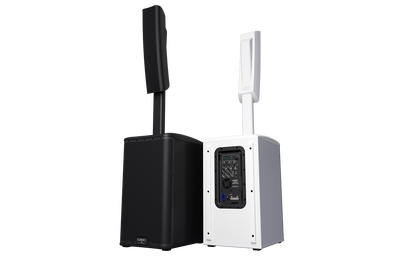

Building on the legacy of the World of K® portfolio, the KC12 is a 3-way, 3000-watt loudspeaker system encompassing the visual aesthetic of a column loudspeaker, while surpassing the acoustic performance of conventional designs. Simple and rapid to deploy, the elegant KC12 is ideal for solo entertainers, musicians and bands, mobile entertainers and DJs, AV productions and static installations.

The highly portable KC12 system consists of a ported subwoofer, housing a 12-inch driver extending down to 40 Hz. The groundbreaking design of the mid/high enclosure features a 1-inch compression driver combined with the innovative QSC LEAF™ (Length-Equalized Acoustic Flare) waveguide, as well as two high-excursion 4-inch midrange drivers. Thanks to this 3-way design, the system provides an outstanding full-range horizontal coverage of 145 degree, and 35 degrees of audience-directed vertical coverage, with clean and natural sound at all output levels.

Configured with or without its column pole, the system is ideally suited for direct deployment on a floor, stage or riser.
Available in black and white, the KC12 is backed by an industry-best global 6-Year Extended Warranty, with product registration.


Enquire Now

Product details

Technical Specifications
  • 3-way loudspeaker system featuring a 12-inch (305 mm) subwoofer, two high-excursion 4-inch (102 mm) midrange drivers and a 1-inch (25.4 mm) HF compression driver combined with the proprietary QSC LEAF™ waveguide.
  • Very high, undistorted 132 dB maximum peak SPL.
  • Energy-efficient Class D amplification featuring 3000 W of total peak power with Power Factor Correction and extremely low AC consumption
  • Innovative QSC LEAF™ (Length-Equalized Acoustic Flare) waveguide provides defined, uniform coverage (145° H x 35° V) and excellent throw.
  • Two combo XLR inputs (Mic/Line/Hi-Z and Mic/Line/+48 V), with independent, assignable Factory Presets for each input, perfect for small events where two microphones are needed for different use.

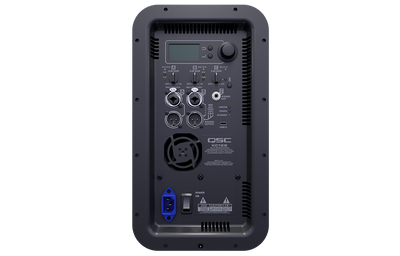

  • Multi-function digital display for control and selection of loudspeaker functions including Global Parametric EQ, Subwoofer level, Presets and Scenes, Bluetooth® configuration, Delay (200 ms) or Reverb.
  • Bluetooth Audio featuring True Wireless Stereo (TWS), which ensures low-latency pairing between music source and both left and right loudspeakers, simultaneously.
  • Control your KC12, CB10 and all QSC Bluetooth-equipped loudspeakers right from your phone. The QSC Loudspeaker Control app gives you instant access to essential audio controls and advanced capabilities.
  • Configured with or without its column pole, the system is ideally suited for direct deployments on a floor, stage or riser.
  • Available in black and white finishes.
  • Included Tote Bag for the transportation/storage of the top unit (KC12T) and the column pole (KC-SP32)
  • 6 Year Warranty when registered within 30 days of purchase

ConfigurationActive 3-Way Column Loudspeaker SystemLF Transducer305 mm (12-inch), coneMF Transducer2 x 102 mm (4-inch), coneHF Transducer25.4 mm (1-inch), compression driverFrequency Response (-6 dB)45 Hz - 18.5 kHzFrequency Range (-10 dB)40 Hz - 20 kHzNominal Coverage Angle145° H x 35° VMaximum Rated SPL1 (peak)132 dB @ 1 mAmplification (peak)Class D, 3000 W (KC12S Subwoofer 2000 W, KC12T Midrange/High Frequencies 1000 W)CoolingLow noise, variable speed fanControls1 x Rotary encoder and2 x Push buttons3 x Rotary level potentiometers1 x AC power switchIndicatorsMonochrome LCD Display 45 x 25.4 mm (1.75 x 1 inch)2 × Power LEDs (blue), Subwoofer front and rear1 x Standby LED (yellow)1 x Limiter LED (red)3 × Input Signal/Clip LEDs (Signal: green / Clipping: red)Input A: Mic/Line with assignable Hi-Z selected LEDInput B: Mic/Line with assignable +48 V selected LEDInput C: Bluetooth selected LED
