Product details

More Information

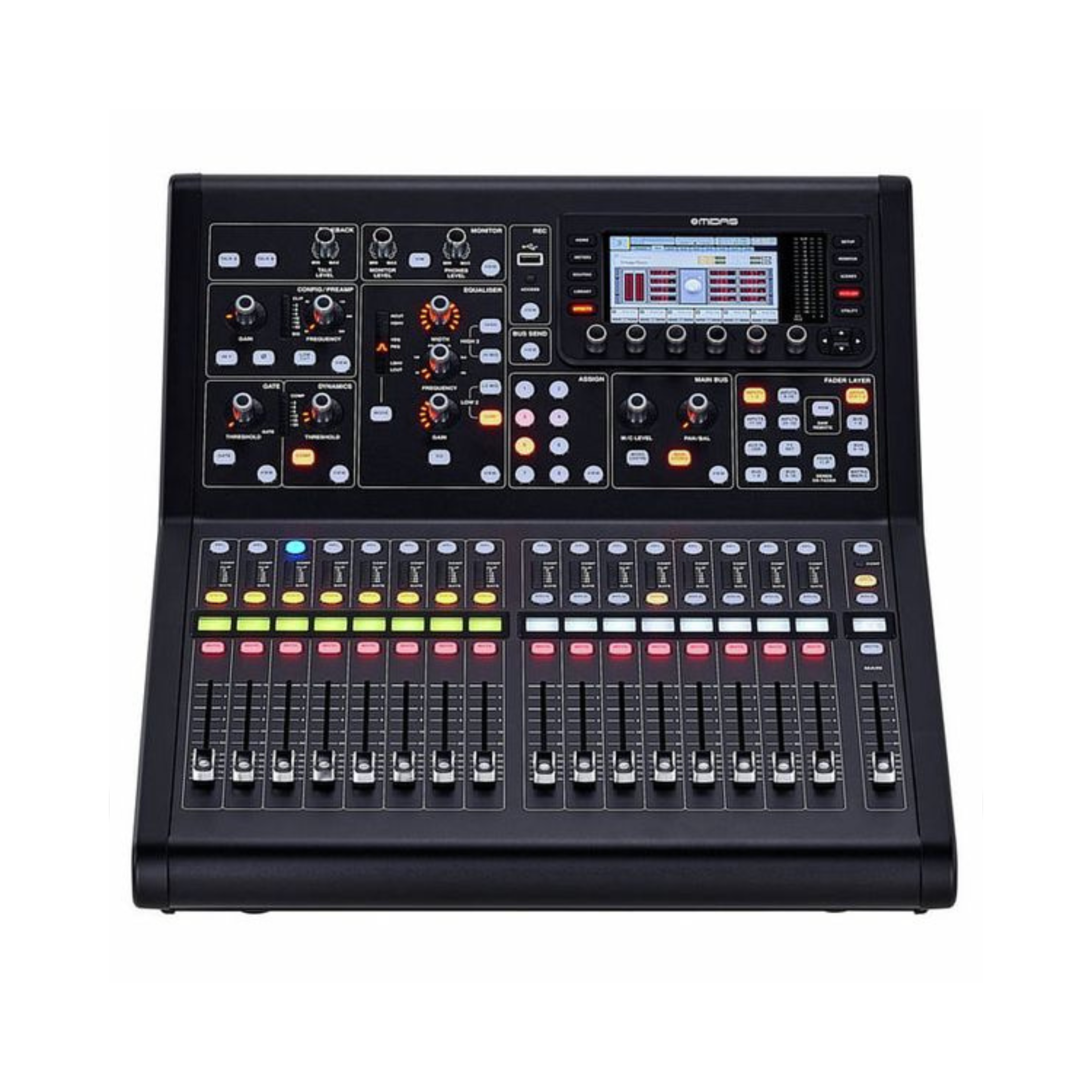

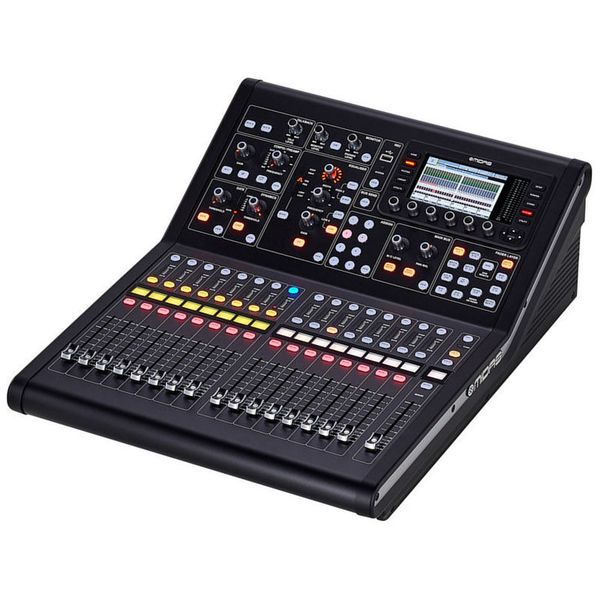

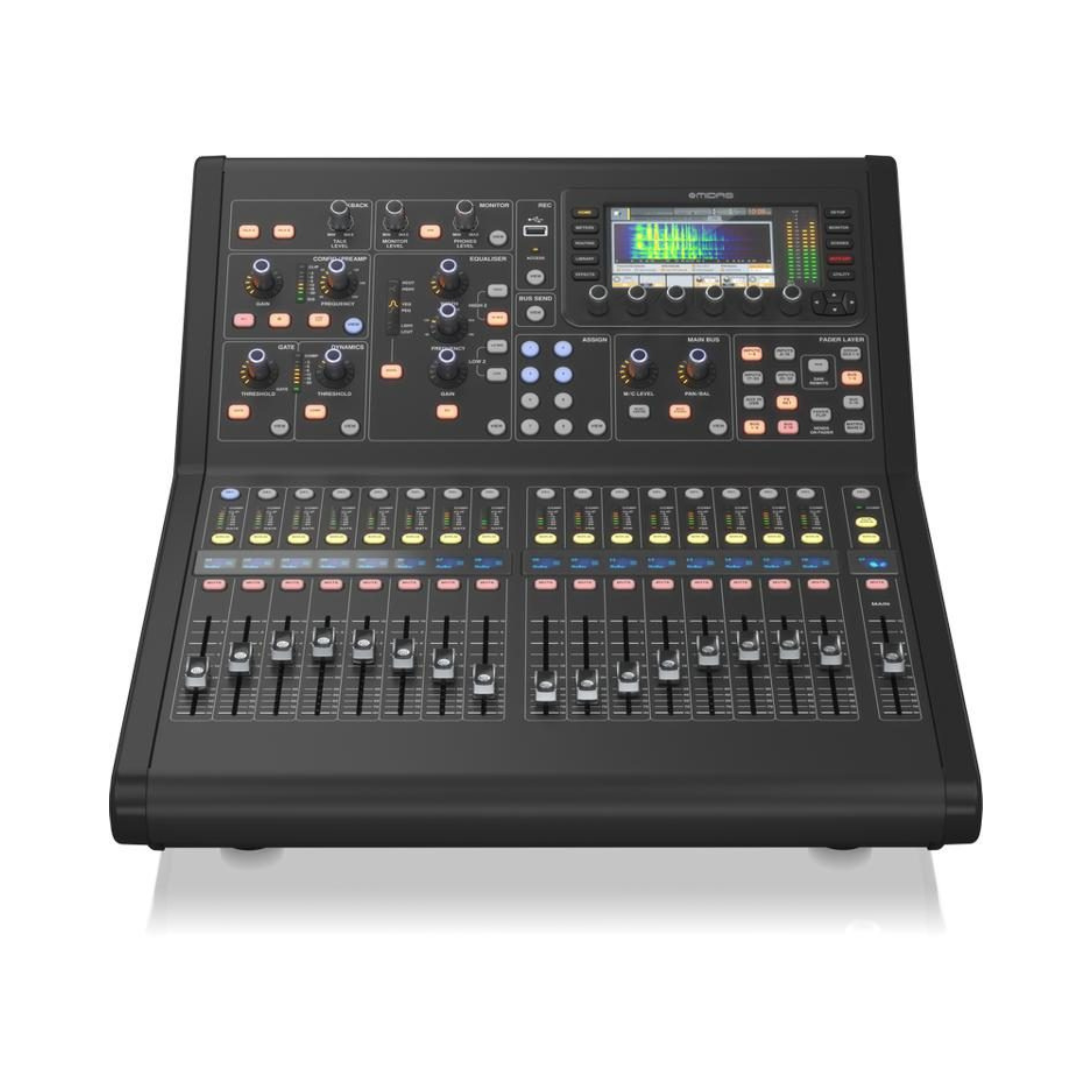

Midas M32R LIVE Digital Mixing Console Features:

  • Rich, vibrant sound from 16 Midas preamps
  • Incredibly strong yet lightweight, thanks to carbon fiber, aluminum, and steel construction
  • Outstanding signal path with 48kHz digital conversion
  • Impeccable sound quality throughout your signal path, with time-aligned and phase-coherent mix buses
  • Best-in-class motorized faders rated at over 1 million life cycles
  • 32 channels of live recording and playback via a pre-installed Klark Teknik DN32-LIVE expansion module
Technical Specifications

Tech Specs

  • Type:Digital Mixer
  • Channels:40
  • Inputs - Mic Preamps:16 x XLR
  • Phantom Power:48V, Switchable per Input
  • Inputs - Line:1 x Dual RCA Stereo (aux)
  • Inputs - Other:6 x 1/4" TRS (aux)
  • Outputs - Main:8 x XLR (main), 2 x 1/4" TRS (monitor)
  • Outputs - Other:6 x 1/4" TRS (aux), 1 x Dual RCA Stereo (aux)
  • Busses/Groups:25 time-aligned/phase-coherent mix buses, 8 DCA groups
  • Talkback:1 x XLR
  • MIDI I/O:In/Out/USB
  • Data I/O:1 x EtherCon (Ultranet), 2 x EtherCon (AES50), 1 x Ethernet
  • Headphones:2 x 1/4" TRS (stereo)
  • USB:1 x Type B, 1 x Type A
  • Computer Connectivity:USB, Ethernet
  • Faders:16 x Input Faders, 1 x Main Fader
  • A/D Resolution:24-bit/48kHz
  • EQ Bands:4-band EQ
  • Effects:8 x Stereo FX Engines
  • Signal Processing:Gate, Compressor
  • Features:100-band RTA, 100 scenes, 100 Snippets, 32-bit/48kHz SD Card recording
  • DAW Control:Yes
  • Screen:5" TFT Display
  • Storage:2 x SD card slots
  • Power Source:Standard IEC AC cable
  • Height:8.2"
  • Depth:24.3"
  • Width:18.8"
  • Weight:31.5 lbs.
