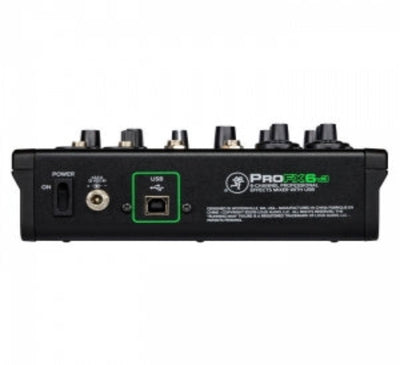

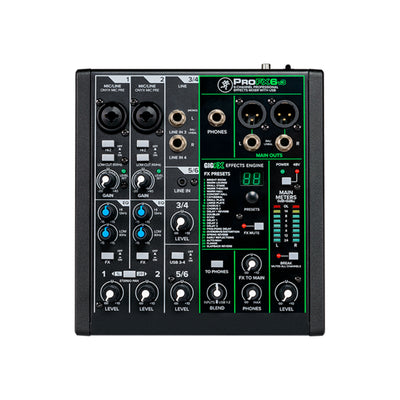

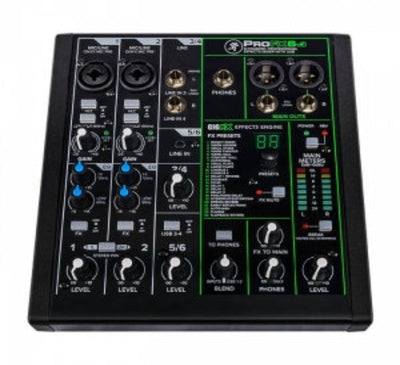

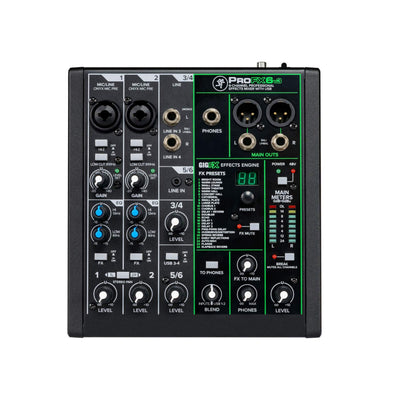

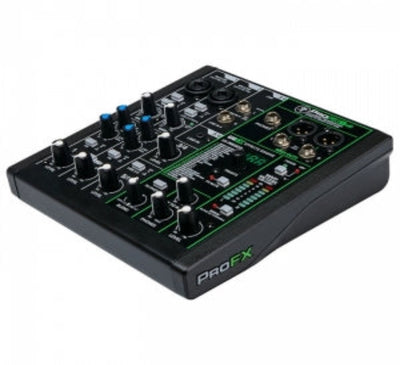

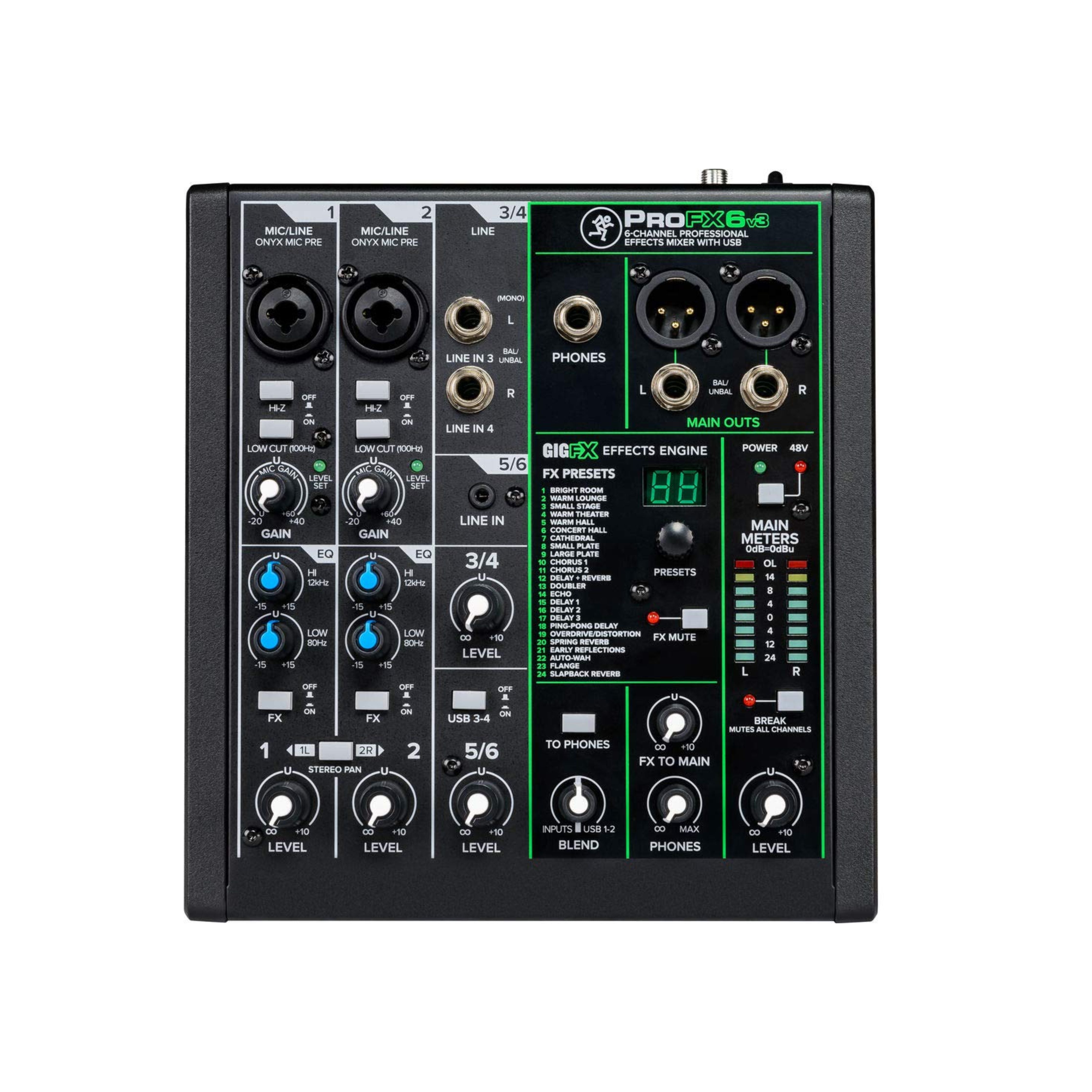

The Mackie ProFX6v3 is a 6-channel mixing console featuring two Onyx microphone preamps with 60 dB of headroom and a built-in effects engine with 24 built-in FX, making it well suited for live sound, home recording, and content creators. The integrated 2x4 USB audio interface offers high-quality 24-bit / 192 kHz recording and playback with zero-latency monitoring.

Channels 1-2 offer combo XLR-1/4" mic/line connections and feature Hi-Z (for guitar and bass), low-cut filters (100 Hz), gain controls, 2-band EQ, stereo linking, level faders, and FX send. Channels 3-4 offer two 1/4" inputs and feature a level control, while channels 5-6 use a 3.5mm stereo input with level fader. Engaging channel 5-6's USB3-4 switch will override the 3.5" input and enables the USB return from a computer.  The master output is controlled with a dedicated level knob and features XLR and 1/4" connectors, while the dedicated 1/4" TRS headphone output includes an independent level control. Other features include Input-USB 1-2 blend control, FX mute, and FX to main.

More Information

  • -High-resolutionrRecording via USB
  • -Award-Winning Onyx Preamps for Pristine Audio
  • -Powerful FX Engine with Customizable Presets
  • -48-volt Phantom Power
  • -Headphone Output with Independent Volume Control
  • -Rugged Design

Technical Specification

Type:Analog Mixer with USB Interface
Channels:6 (2 x mono, 2 x stereo)
Computer Connectivity:USB (2 x 4)
A/D Resolution:24-bit/192kHz
Faders:Rotary Pots
Inputs - Mic Preamps:2 x XLR-1/4" combo (mic/line/Hi-Z)
Phantom Power:Yes
Inputs - Line:2 x 1/4" (line), 1 x 1/8" (stereo)
Outputs - Main:2 x XLR, 2 x 1/4" (L/R)
Headphones:1 x 1/4"
USB:1 x Type B
EQ Bands:2-band EQ, 100Hz Low-cut Filter
Effects:GigFX Engine: Reverbs, Chorus, Delay, Flange, Auto-Wah
Software:Waveform OEM DAW, FX Plug-in Collection
Power Source:12V DC power supply (included)
Weight:2.6 lbs.
Manufacturer Part Number:2051299-00
