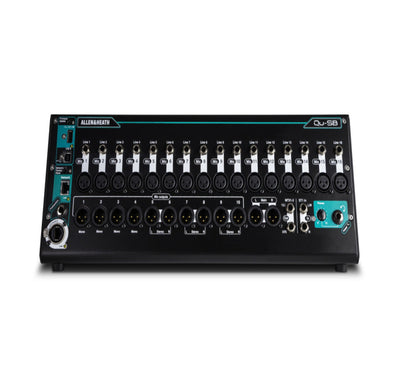

Qu-SB is an ultra-compact digital mixer which frees you to mix from anywhere in the venue and provides a smart, portable solution for performing bands and artists.

Qu-SB is portable enough to carry under one arm and comes loaded with our highly acclaimed suite of FX emulations and dynamics, making it a smart replacement for an old analogue mixer and a rack full of outboard FX.

Enquire Now

Product details

More Information

Allen & Heath Qu-SB Portable Digital Mixer Features:

  • 16-channel portable digital mixer
  • 16 AnalogiQ mic preamps with total-recall capability

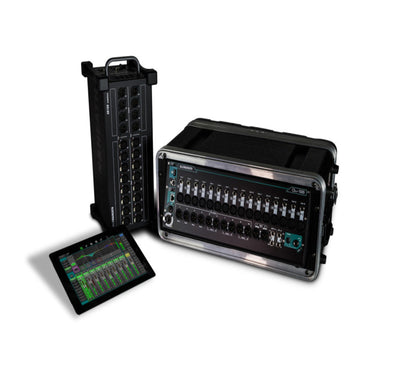

  • Expandable up to 32-in/24-out using dSNAKE AudioRacks (not included)
  • Supports up to 11 monitor mixes (4 mono, 7 stereo)
  • Four effects engines drive four dedicated effects Sends/Returns
  • 4 Mute Groups and 4 DCA Groups help you manage larger mixing tasks
  • Qu-Pad iPad App for all live mixing controls
  • Qu-You iPhone App for personal monitoring
  • Qu-Drive direct Multitrack recording and playback on USB drives
  • Trim, polarity, HPF, gate, insert, 4-band PEQ, compressor, delay on all Inputs
  • Insert, 4-band PEQ, 1/3 octave GEQ, compressor, delay on all Outputs
  • ProFactory Mic Presets provides EQ presets for popular industry-standard microphones
  • Automatic Mic Mixer manages mic levels automatically, perfect for conferences, meetings and panel discussions
Technical Specifications

Tech Specs

  • Type:18 x 14 digital mixer interface for iPad
  • Channels:16
  • Inputs - Mic Preamps:16 x XLR
  • Phantom Power:Yes
  • Inputs - Line:16 x 1/4", 2 x 1/4" (stereo paired)
  • Outputs - Main:2 x XLR (main out)
  • Outputs - Other:2 x 1/4" (stereo matrix out), 4 x XLR (mono mix out), 6 x XLR (3 stereo mix outs)
  • Aux Sends:11 monitor mixes (4 mono, 7 stereo), 4 x dedicated FX sends/returns
  • Busses/Groups:4 x stereo groups, 4 x DCA groups, 4 x mute groups
  • Data I/O:2 x Ethernet (Cat5 dSnake port, Network link)
  • USB:1 x Type B (audio interface), 1 x Type A (direct recording/playback)
  • Computer Connectivity:USB (32 x 32)
  • I/O Expansion Slots:Expansion via dSnake for additional inputs and networking
  • Headphones:1 x 1/4"
  • EQ Bands:4-band parametric, Graphic
  • Effects:4 x FX engines (reverbs, delays, double tracking, chorus, symphonic, phaser, flanger)
  • Signal Processing:Compression, Gates, Filters
  • Features:Spectrogram feedback elimination, RTA with peak band indication
  • DAW Control:DAW MIDI control
  • Software:Qu-Pad iPad app, iLive FX library, iPhone/Android personal monitor app
  • Rackmountable:Yes (kit sold separately)
  • Height:6.4"
  • Depth:6.9"
  • Width:17.2"
  • Weight:9.9 lbs.
