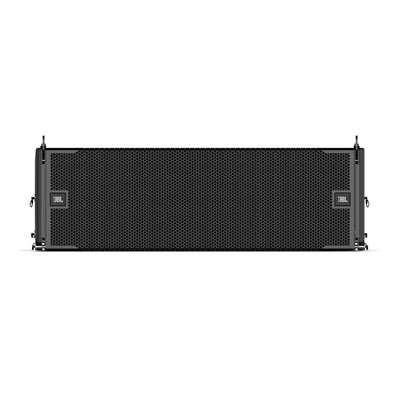

Next Generation Dual 12" Line Array Loudspeaker

JBL VTX A12 is a complete tour sound solution for mid- to large-size touring applications and high-end fixed installations. VTX A12 was designed from scratch to address the unique challenges of rental companies, FOH engineers and tour sound production crews. Next-generation JBL transducer technology and a high-frequency waveguide design deliver unmatched performance, sensitivity and coverage. A patented JBL rigging mechanism and redesigned suspension system streamline deployment and setup. And refinements to the physical design maximize reliability and versatility, while minimizing size and dramatically reducing weight. VTX A12 isn’t just a superior line array—it’s a completely new way to approach tour sound.

Enquire Now

Product details

More Information

Features

  • New and improved JBL transducers for the best output per weight
  • Innovative HF section integrates the phasing plug and waveguide for high sensitivity and linearity even at high output levels
  • Redesigned Radiation Boundary Integrator® (RBI) for reduced horn edge diffraction, improved LF sensitivity, lower distortion, and 90-degree coverage down to 250 Hz
  • Next Generation LF section, including industry-defining Differential Drive woofers, with a dual magnet, dual voice-coil design for extended linear excursion
  • Best-in-class rigging for streamlined, rapid deployment
  • Full-face grill for superior weatherization and refined aesthetics
  • New transport cart and frame for simplified transport and setup
  • Optimizations throughout the design for space efficiency and reduced weight while simultaneously improving performance
  • Full integration with JBL system control and prediction software
  • Lightweight design
Technical Specifications



SYSTEM
Frequency Range (-10 dB): 46 Hz - 19 kHz (Preset: VTX A12)
Coverage Pattern (-6 dB)
Horizontal:
Vertical:
90 degrees nominal (250 Hz - 18 kHz)
Varies with array size and configuration
System Input Power Rating1
LF:
MF:
HF:
2x 800W Continuous (IEC/100 hour)
400W Continuous (IEC/100 hour)
150W Continuous (IEC/100 hour)
Maximum Peak Output²: 146 dB (Preset: VTX A12)
System Amplification: Crown I-Tech 9000HD
Crown I-Tech 12000HD
Crown I-Tech 4x3500HD
Required Amplifier Channels: (4) channels (LF|LF|MF|HF)
Number of Cabinets per Circuit: (3) VTX A12
System Impedance: LF: 2x 8 ohms | MF: 8 ohms | HF: 8 ohms
TRANSDUCERS
Low Frequency : (2) JBL 2264H, 12 in diameter, dual 3 in diameter voice coil, Neodymium Differential Drive®
Mid Frequency : (4) JBL 2165H, 5.5 in diameter, dual 2 in diameter voice coil, Neodymium Differential Drive®
High Frequency : (3) JBL 2423K, 2 in diameter annular diaphragm, 2 in diameter voice coil, Neodymium compression drivers
ENCLOSURE
Construction : 15 mm 11-ply Finnish birch plywood, Black DuraFlexTM finish, four integral recessed handles
IP Rating3
: IP55 EN (60529)
Suspension : High-grade steel with anti-corrosion coating, captive suspension plates, quick release pins, auto-locking mechanism for setting angles
Inter-enclosure Angle (deg) : 0.25, 0.5, 1, 1.5, 2, 2.5, 3, 4, 6, 8, 10
Grill : Powder coated 1.8 mm (14-guage), hex-perforated steel with acoustically transparent black cloth backing
Connectors
Type :
Pin Assignments :
(2) Neutrik® speakON® NL-8
Pins 1 ± (LF), Pins 2 ± (LF),
Pins 3 ± (MF), Pins 4 ± (HF)
Dimensions (H x W x D) : 330 mm x 1118 mm x 495 mm
13 in x 44 in x 19.5 in
Net Weight : 60.8 kg (134 lbs)


Footnotes:
1: IEC Standard: IEC shaped noise with 6 dB crest factor based on nominal impedance and a duration of 100 hours
2: Peak, unweighted SPL, measured under full-space conditions at 1 meter using broadband pink noise with a 12dB crest factor and specified preset
3: Front face at 0 degree or greater down angle to allow the cabinet to drain water. Suspension components fully weather rated for indoor or covered outdoor conditions where humidity is nominally under 50% and not local
to bodies of corrosive materials. Unused speakON connectors must be sealed using silicone to protect against water and moisture
JBL continually engages in research related to product improvement. Some materials, production methods and design refinements are introduced into existing products without notice as a routine expression of that
philosophy. For this reason, any current JBL product may differ in some respect from its published description, but will always equal or exceed the original design specifications unless otherwise stated.
