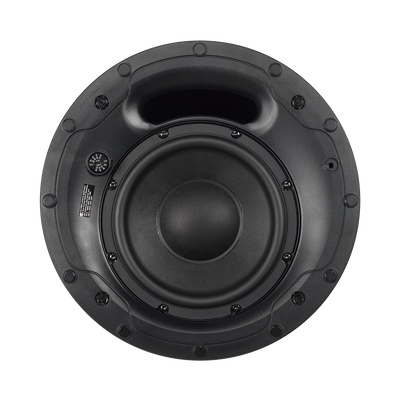

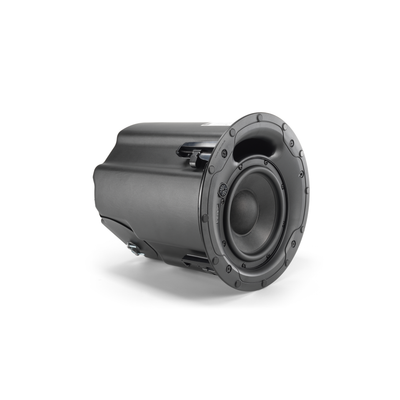

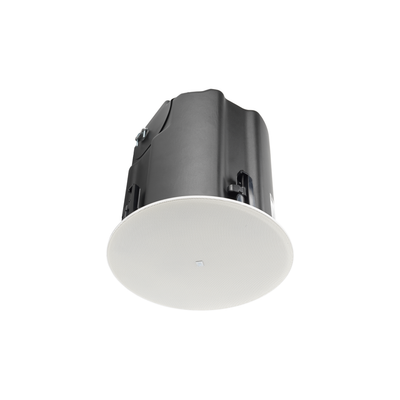

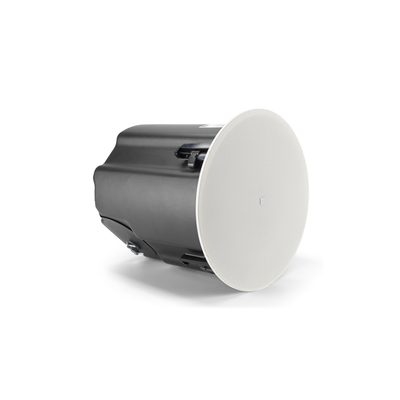

JBL CONTROL 440CS/T

• 200 mm (8 in) woofer with SBR surround
• Integrated enclosure with large, tapered dual ports for warm, smooth bass response
• Built-in passive crossover network enabling it to be used as part of a subwoofer-satellite system
• Built-in 70V/100V multi-tap transformer, plus 8-ohm direct input
• Full-face, easily paintable magnetic grilles
• Top and side exit cable entry options
• Robust and adaptable dogears for wide range of ceiling thicknesses
• IP33 rated

Frequency Range (-10 dB)1
: 32 Hz – 300 Hz
Frequency Response (±3 dB)1
: 42 Hz – 180 Hz
Power Capacity2,3:
300 W Continuous Program (2 hrs.)
150 W (600 W Peak), Continuous Pink Noise (2 hrs.)
100 W (400 W Peak) Continuous Pink Noise Power (100 hrs.)
Sensitivity:
95 dB in ceiling near corner (π/2 loading)
92 dB in ceiling near wall (1π loading)
89 dB in center of ceiling (2π loading, half space)
Rated Maximum SPL @ 1m4
: 117 dB continuous pink noise (123 dB peak, 2 hrs., π/2 loading)
111 dB continuous pink noise (117 dB peak, 2 hrs., 2π loading)
Nominal Impedance: 8Ω
Minimum Impedance: 6.8Ω at 92 Hz
Transformer Taps: 70 V: 80 W, 40 W, 20 W & 10 W
100 V: 80 W, 40 W, 20 W
Recommended Protective High-Pass Filter
Frequency: 45 Hz (24 dB/oct LR)
Transformer Insertion Loss: 0.5 dB @ 10 W; 0.5 dB @ 20 W; 0.5 dB @ 40 W; 0.6 dB @ 80 W
Maximum Input Voltage: 31.9 V RMS, 63.8 V peak (2 hrs at 8Ω input)
Overload Protection: PTC power limiting to protect network and transducers from occasional overload.
Safety Agency Ratings: Suitable for use in air handling spaces per UL 2043, NFPA 90A & NFPA 70. S7232/UL Listing per UL 1480A Speakers for
Commercial and Professional Use. Listed per CSA C22.2, no. 205 Signal Equipment. Transformer UL registered.
Environmental:
IP rating: IP33 per EN/IEC 60529.
RoHS: Per EU RoHS Directive 2011/65/EU, as amended by EU Delegated Directive (EU) 2015/863.
Operating temperature: 0° C to 45 °C.
