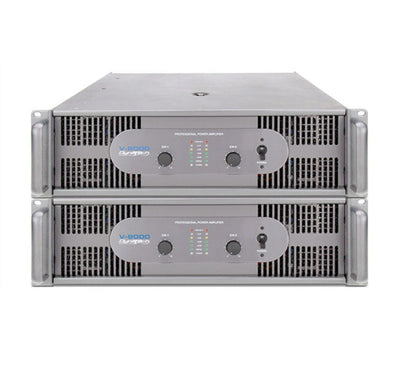

Dynatech V Series Power Amplifiers deliver from 500 Watts to 6800 Watts of power in two to three rack spaces. High current transistors combined with low noise input amplifiers enable the V series to deliver exceptional power.

More Information

Built around robust and
advanced toroidal transformers, they deliver clean power on
demand. The advanced protection circuitry guards against short
circuit and open circuit, and also protects against ultrasonic
and RF interference. A high current power supply increases
reliability and performance. Other features include center-dented
gain controls, input peak limiter, and fast recovery to ensure
low distortion. The variable speed Fans effectively cool the amp
and protect against overheating. Input is through XLR connectors
for output. The V Series Audio Power Amplifiers have sub woofer
outputs with a selectable low pass filter at variable frequency
upto 200Hz. Dynatech V Series Power Amplifiers are specially
designed for professionals who value high power, audio clarity,
reliability and lasting performance.

Technical Specification



Output Power
8Ω, 1Khz 1%THD
1600w RMS Stereo
Output Power
4Ω, 1Khz 1%THD
2600w RMS Stereo
Output Power
2Ω, 1Khz 1%THD
3600w RMS Stereo
Output Power
Bridge Mode, mono
8Ω, 1Khz 1%THD
5200w RMS
Output Power
Bridge Mode, mono
4Ω, 1Khz 1%THD
7200w RMS
Input Sensitivity
and Impedance
0.775V, 1V, 1.44V Selectable
@ rated output power, 8 ohms
Hum & Noise 100 dB, unweighted
@ Below rated output, 8 ohms
10Hz - 40kHz for +/- 1db, 1w RMS, 8 ohms
20Hz - 20kHz for +/- 0.2 db, @ rated output,8 ohms
Less than 0.02%
@ rated output power, 8 ohms
Cooling System Dual 2-Speed Fans and Heatsinks
Power Consumption
@rated output
power, 8 ohms
15.8A@230V AC
HxWxD (mm) 133x483x524
Weight 32.2 Kgs
