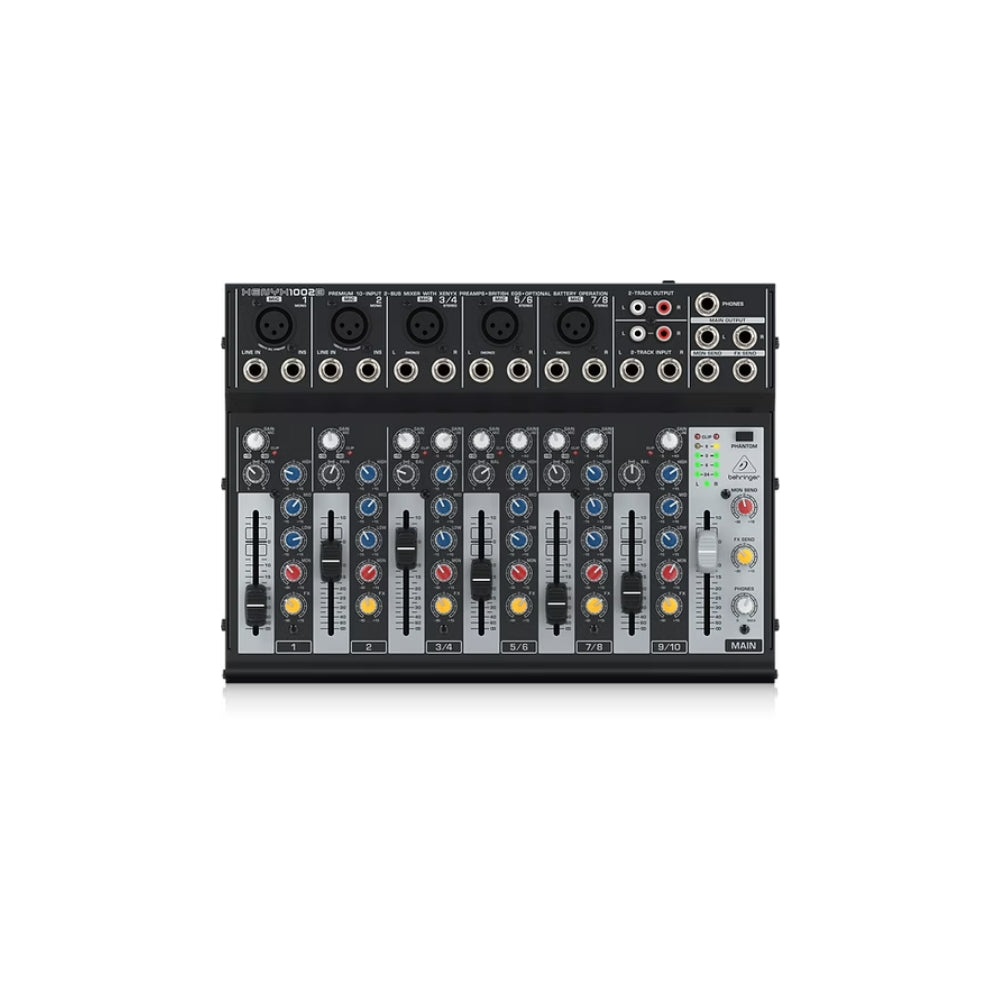

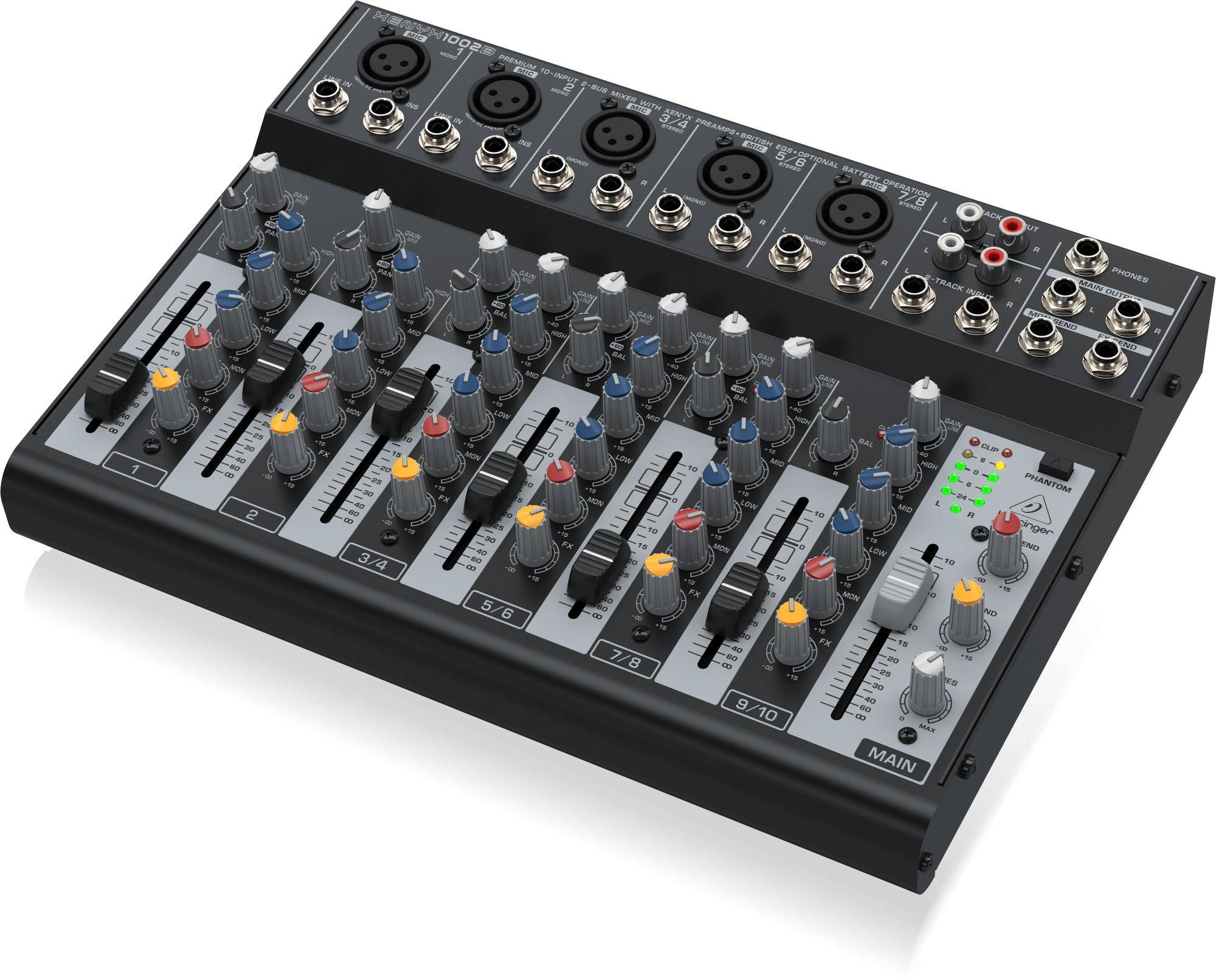

BEHRINGER XENYX 1002B
BEHRINGER XENYX 1002B

BEHRINGER XENYX 1002B

  • Premium low-noise analog mixer with optional battery operation
  • Two XENYX mic preamps, boutique quality
  • Neo-classic "British" 3-band EQs for warm, musical sound
  • Battery operation (9V alkaline) for mobile use
  • Four balanced stereo inputs and three additional mic inputs
  • One FX send and one monitor send per channel for external FX and monitoring
Enquire Now

Product details

More Information
  • XENYX Mic Preamps: Features two high-quality mic preamps (channels 1-2) with a massive 130 dB dynamic range and phantom power. An additional three mic inputs are available on stereo channels if line inputs aren't used.
  • "British" 3-Band EQ: Equipped with neo-classic 3-band EQs on all channels, modeled after legendary consoles from the 1960s and '70s for a warm, musical sound.
  • Flexible Powering: Operates via an included external power supply or three 9V alkaline batteries (two for normal operation, three to enable phantom power).
  • Tactile Controls: Includes long-wearing 60-mm logarithmic-taper master faders and sealed rotary controls for smooth, precise adjustments.
  • Routing Options: One pre-fader MON send and one post-fader FX send per channel for monitoring and external effects integration.
Technical Specifications
  • Total Inputs: 10 inputs including 2 dedicated mic channels and 4 stereo channels (with 3 additional mic inputs if line inputs are unused).
  • Mic Preamps: 2 premium Xenyx preamps with 130 dB dynamic range and frequency response from <10 Hz to >200 kHz.
  • Input Types:Microphone: 5 x XLR connectors, electronically balanced.Line: 2 x 1/4" mono jacks and 8 x 1/4" jacks for stereo pairs.Other: 2 x RCA (CD/tape in) and 2 x 1/4" Hi-Z inputs.
  • Gain Range: +14 dB to +60 dB for mic inputs; -6 dB to +38 dB for line inputs.
  • Impedance: 2.6 kΩ balanced (mic); 20 kΩ balanced / 10 kΩ unbalanced [LINE]
