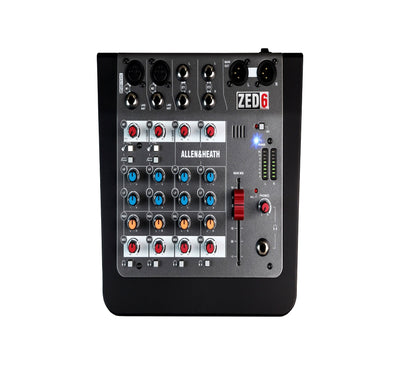

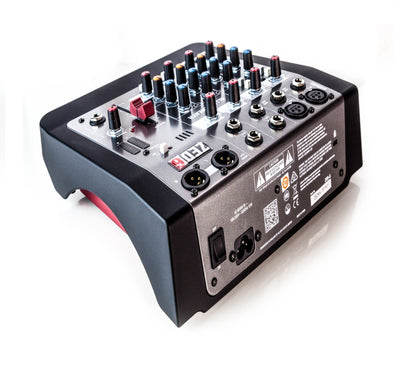

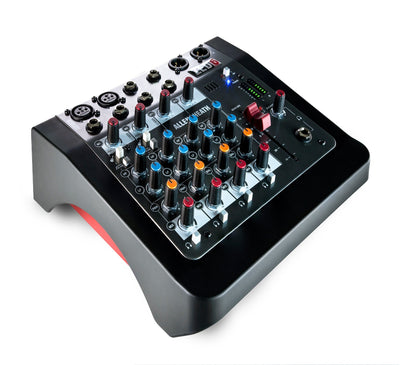

Allen & Heath ZED-6 6-channel Mixer Features:

  • Rugged compact mixer for small-format applications
  • 2 mono channels with GSPre mic preamps and instrument/line-level inputs
  • Low-cut filters to reduce rumble and other unwanted low frequencies

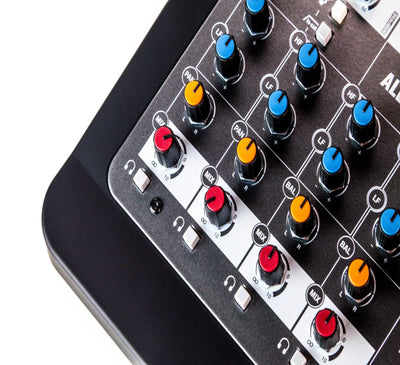

  • Effective sound shaping from HF and LF equalizer controls
  • Channels can be individually assigned to the headphone mix
  • XLR outputs for studio monitors or powered PA speakers
  • Smooth 60mm fader for controlling your main mix
  • Rotary controls are secured to the faceplate with steel nuts for maximum durability
Technical Specifications
Tech Specs
  • Type:Analog mixer
  • Channels:6
  • Faders:1 x 60mm Master Mix fader
  • Inputs - Mic Preamps:2
  • Phantom Power:2
  • Inputs - Line:2 x 1/4" (line/instrument)
  • Inputs - Other:4 x 1/4" TRS (stereo paired)
  • Outputs - Main:2 x XLR (left, right)
  • Headphones:1 x 1/4"
  • EQ Bands:2-band EQ
  • Height:3.5"
  • Width:9.8"
  • Depth:9.3"
  • Weight:2.8 lbs.
