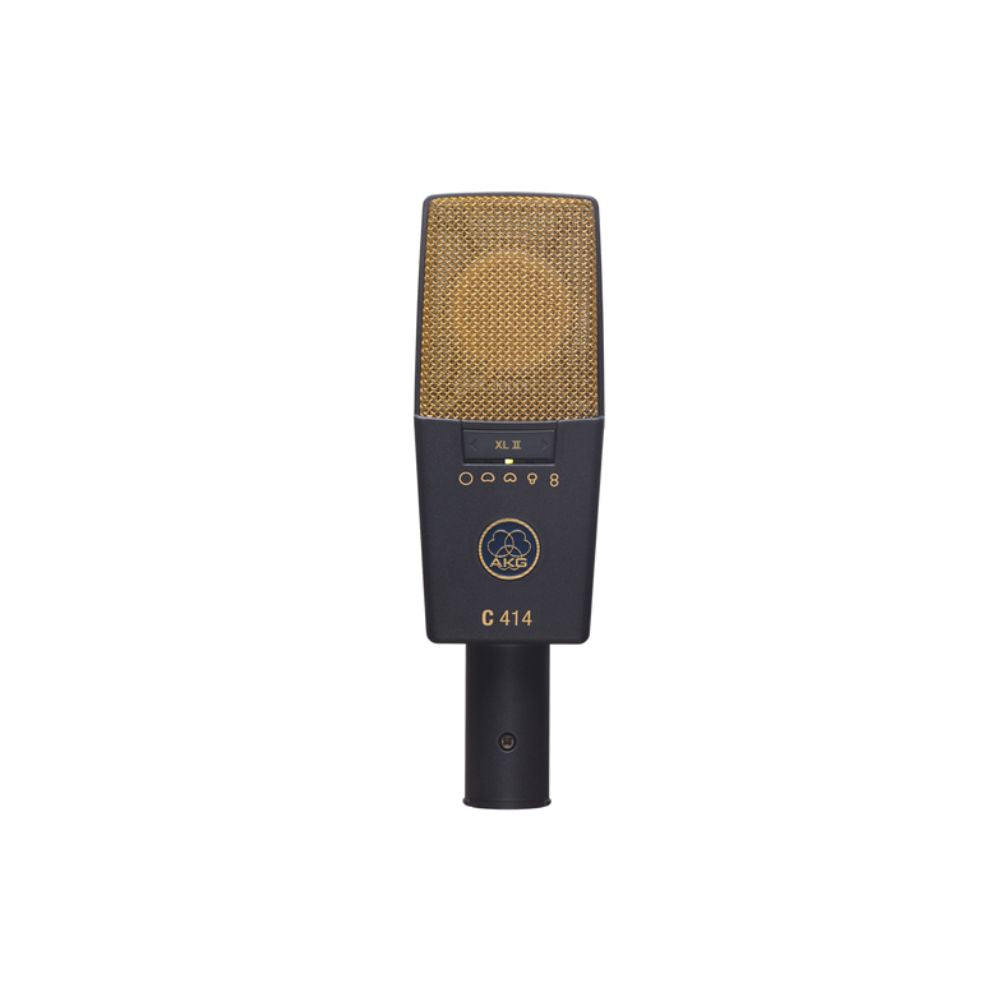

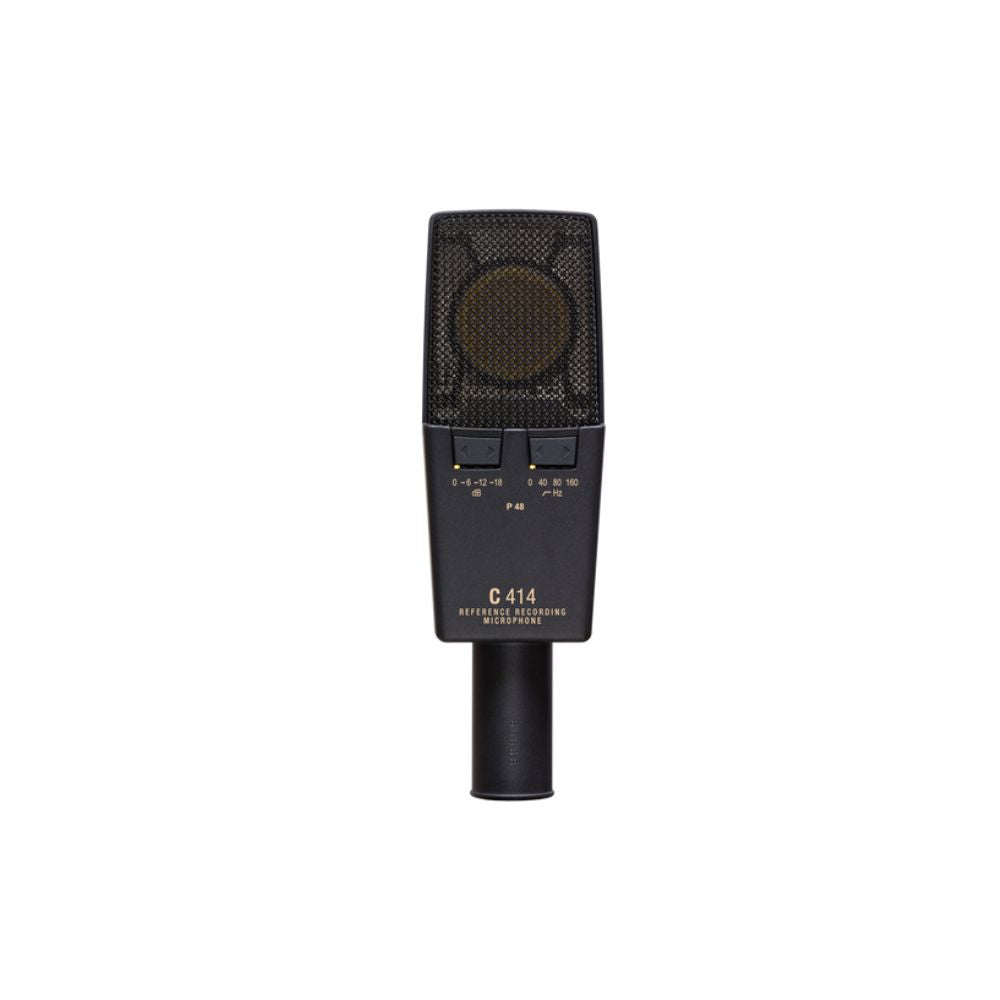

AKG C414 XLII
AKG C414 XLII
AKG C414 XLII

AKG C414 XLII

The C414 XLII multi-pattern condenser microphone offers a choice of nine polar patterns for the perfect sonic capture for every application. A peak hold LED displays even the shortest overload peaks. For live sound applications and permanent installations, all controls can easily be disabled for trouble-free use. The C414 XLII version differs from the C414 XLS version in one major respect – the capsule. The C414 XLII's slight presence boost and impressive spatial reproduction are both similar to the legendary AKG C12 microphone from 1953.

Enquire Now

Product details

More Information
  • Multi-pattern condenser microphone for a variety of applications
  • 9 switchable polar patterns
  • Lock mode disables all controls for live and installation use
  • Incredible dynamic range of 152dB
  • 3 bass cut filters and pre-attenuation levels
  • Peak hold LED detects overload peaks

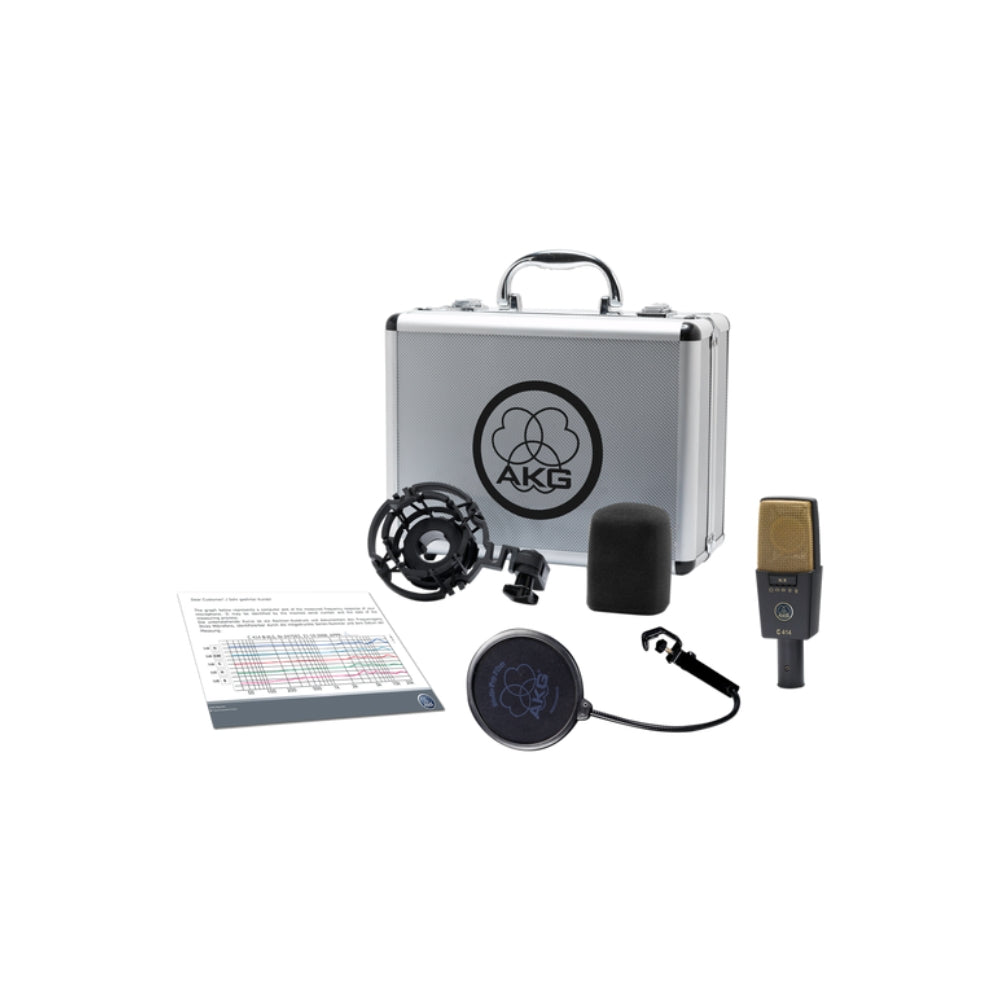

  • Includes carrying case, pop filter, windscreen, and spider-type shockmount
  • Frequency range: 20hz-20kHz
  • Pre-attenuation pad: 0dB, -6dB, -12dB, -18dB, switchable
  • Bass cut filter slope: 12dB/octave at 40Hz and 80Hz; 6dB/octave at 160Hz
  • Requires 48-volt phantom power
Technical Specifications

General Specifications

Polar Patterns:

Cardioid, Figure of eight, Hypercardioid, Omnidirectional, and Wide Cardioid

Audio frequency bandwidth:

20 - 20000 Hz

Equivalent noise level:

6 dB-A

Sensitivity:

23 mV/Pa

Signal to Noise:

88 dB-A

Preattenuation Pad:

-6; -12; -18 dB

Bass cut filter:

160; 80; 40 Hz

Electrical impedance:

200 Ohms

Recommended load impedance:

2200 Ohms

Dimensions

Length:

38 mm

Width:

50 mm

Height:

160 mm

Net Weight:

300 g
