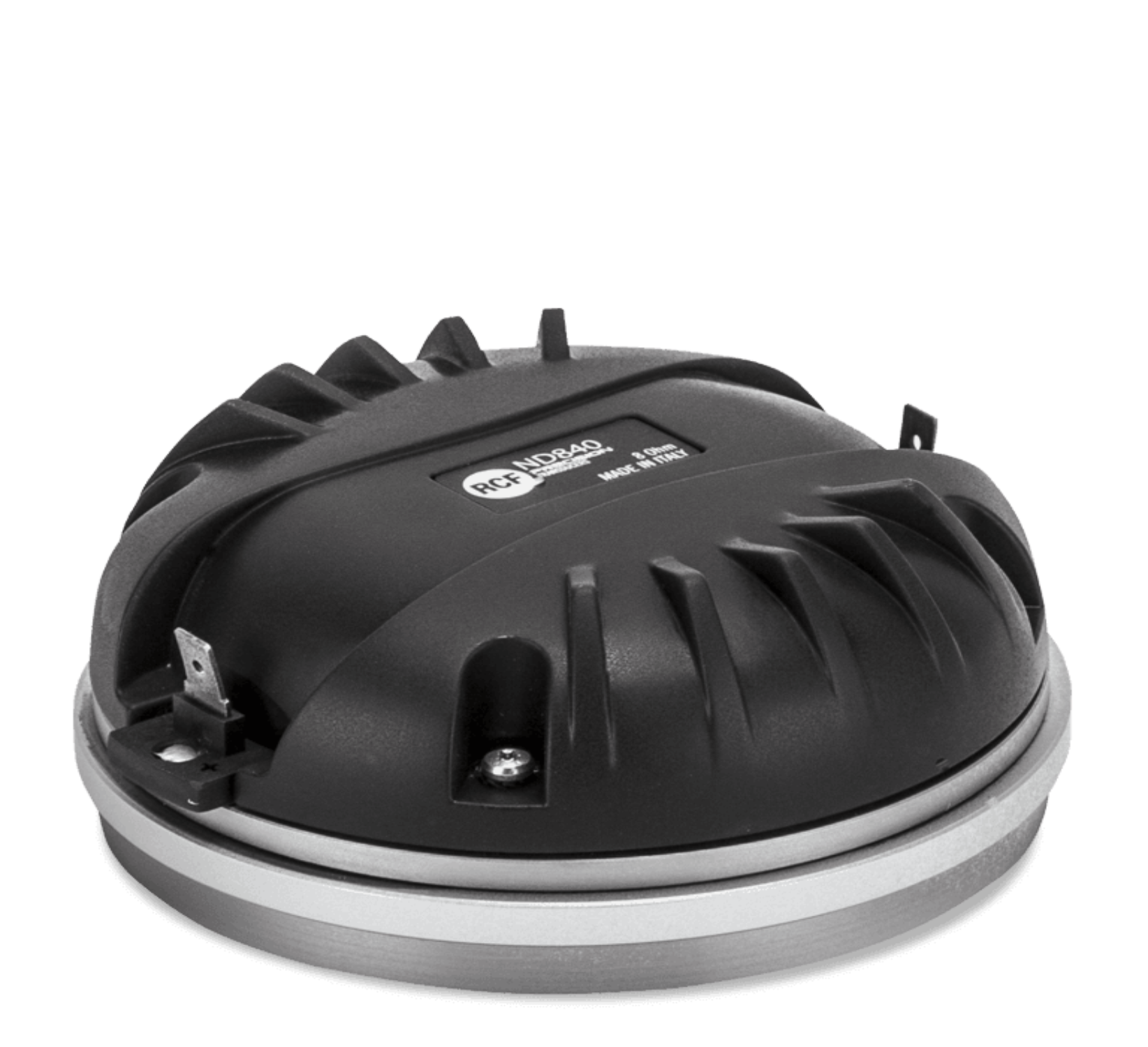

RCF ND840

RCF ND840

The ND840 is a high performance 3-inch diaphragm compression driver with a 1.4 inch exit throat featuring the smallest size of the art technology. The diaphragm are precision completely formed from pure titanium. Voice coil assembly is designed using high temperature kapton former and it is joined to the diaphragm by RCF proprietary Direct Drive kapton technology. Diaphragm suspension is designed by extensive FEM study for low distortion and low frequency range extension.

More Information

FEATURES
  • 3-inch Diaphragm, 1.4-inch Exit Throat / Pure Titanium Compression Driver
  • 220W continuous program power handling
  • Frequency range: 500Hz - 20kHz
  • 3-slot optimized geometry phase plug
  • Titanium diaphragm
  • Copper inductance ring for extended response
  • Vented, damped, low distortion suspension system
  • Nedymium magnet assembly

Technical Specification

General specifications

  • Exit Throat Diameter: 1.4 inch / 36 mm
  • Related Impedance: 8 ohm
  • Program Power: 220 W
  • Power handling capacity: 110 W
  • Sensitivity: 109 dB
  • Frequency range: 500 – 20000 Hz
  • Diaphragm Material: Pure Titanium
  • Suspension Material: Pure Titanium
  • Suspension Design: Double Roll
  • Minimum Impedance: 7.00 ohm
  • Voice Coil Diameter: 3.0 inch / 76 mm
  • Voice Coil Material: Edgewound Aluminium
  • Voice Coil Former Design: Direct Drive Kapton
  • Number of layers: 1
  • Kind of layers: inside/outside
  • Flux Density: 2.0 T
  • Phase Plug Design: 3 slot
  • Phase Plug Material: Aluminium
  • Magnetics: Neodymium
  • Voice Coil Demodulation Ring: Copper

Thiele – small parameters

  • BL factor (BL): 12.30 T x m

Mounting Information

  • Overall diameter: 115 mm / 4.53 inches
  • Overall height: 46 mm / 1.81 inches
  • Mounting: 4 x 6 mm threaded holes at 90°

Standard compliance

CE marking: Yes

  • Size
  • Weight: 1.4 kg / 3.09 lbs
