Soundcraft Vi3000
Soundcraft Vi3000

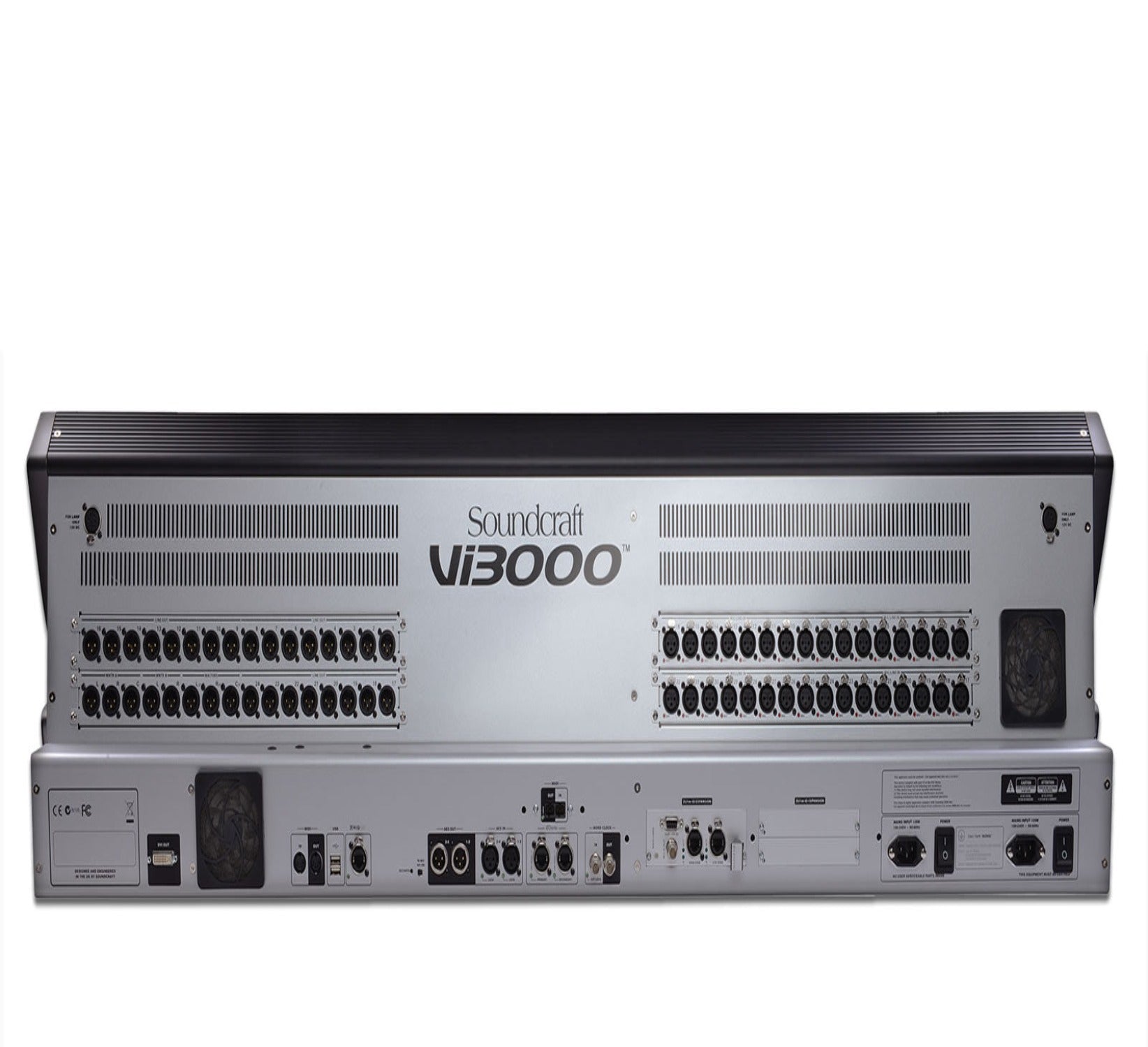

The Soundcraft Vi3000 offers extensive rear panel connectivity. In addition to a full complement of analog and digital inputs and outputs, the console provides MIDI, USB, Ethernet, DVI out, Dante/MADI record feed outputs, redundant power supply and other connections. The Vi3000 has two expansion bays that can be fitted with MADI Stagebox cards, to connect multiple Soundcraft Stagebox input expander modules. The Vi3000 can also accommodate the new Soundcraft Realtime Rack, a hardware/software unit designed in collaboration with plug-in manufacturer Universal Audio that provides access to 74 industry-standard UAD plug-ins. The Vi3000 is the first Soundcraft console to incorporate a Dante interface as standard, for seamless digital audio networking with Dante-enabled devices.
Along with its greatly expanded functionality, the Vi3000 retains all the features that have made the Soundcraft Vi Series the consoles of choice for live sound engineers worldwide, such as FaderGlow™ illuminated faders that display different colors according to function, the ability to store and recall snapshots and cues, compatibility with Soundcraft's ViSi app that allows remote control from an iPad, built-in Lexicon reverb/delays, dbx compression, effects and more
Along with its greatly expanded functionality, the Vi3000 retains all the features that have made the Soundcraft Vi Series the consoles of choice for live sound engineers worldwide, such as FaderGlow™ illuminated faders that display different colors according to function, the ability to store and recall snapshots and cues, compatibility with Soundcraft's ViSi app that allows remote control from an iPad, built-in Lexicon reverb/delays, dbx compression, effects and more
More Information
More Information
Technical Specification
Technical Specification
Specifications | |
Frequency Response - Stagebox Mic input to Line output | +0/-1dB, 20Hz-20kHz |
AES/EBU In to AES/EBU Out | +0/-0.2dB, 20Hz-20kHz |
THD | 22Hz-22kHz |
Stagebox Mic In (min gain) to Local Line Out | <0.003% @ 1kHz |
Stagebox Mic In (max gain) to Local Line Out | <0.020% @ 1kHz |
Local Line In to Line Out | <0.003% @ 1kHz |
Mic Input E.I.N | <-126dBu (150Ω source) |
Residual Noise | -91dBu Stagebox line output; no inputs routed, Mix fader @0dB |
CMRR | 80dB @ 1kHz |
Sampling Frequency | 48kHz |
Latency: Stagebox Mic Input to Local Line output | < 2ms @48kHz |
AES/EBU Input Sample Rate | 32-108kHz (with SRC enabled) |
DSP Resolution | 40-bit floating point |
Internal Clock Accuracy | < +/- 50ppm |
Internal Clock Jitter | < +/- 2ns |
External Sync | BNC Wordclock |
Input & Output Levels - Mic Inputs | +28dBu max |
Input & Output Levels - Line Inputs | +22dBu max |
Input & Output Levels - Line Outputs | +22dBu max |
Input & Output Levels - Nominal Operating Level | +4dBu (-18dBFS) |
Input & Output Impedances - Mic Inputs | 2k7Ω |
Input & Output Impedances - All other analogue Inputs | >10kΩ |
Input & Output Impedances - Line Outputs | <75Ω |
Input & Output Impedances - AES/EBU Outputs | 110Ω |
Oscillator | 20Hz to 20kHz/Pink/White Noise, variable level |
Oscillator - Stagebox HP Filter | 80Hz fixed, 12dB per octave |
Oscillator - Channel HP Filter | 20Hz-600Hz, 18dB per octave |
Oscillator - Channel LP Filter | 1kHz-20kHz, 18dB per octave |
EQ (Inputs and Bus Outputs) - HF | 20Hz-20kHz, +/-18dB, Q=0.3-8.7 or shelving |
EQ (Inputs and Bus Outputs) - Hi-Mid | 20Hz-20kHz, +/-18dB, Q=0.3-8.7 |
EQ (Inputs and Bus Outputs) - Lo-Mid | 20Hz-20kHz, +/-18dB, Q=0.3-8.7 |
EQ (Inputs and Bus Outputs) - LF | 20Hz-20kHz, +/-18dB, Q=0.3-8.7 or shelving |
Metering | Internal 20-segment LED bargraphs plus 9-segment gain reduction meters for all inputs and Outputs. Peak hold variable from 0-2s. |
Mains Voltage Operating Range | 90-264V, 47-63Hz, auto-ranging |
Mains Power Consumption | 300W |
Temperature/Humidity Range - Operating Temperature Range | 0°C to 45°C (32°F to 113°F) |
Temperature/Humidity Range - Relative Humidity | 0% - 90%, non-condensing Ta=40°C (104°F) |
Temperature/Humidity Range - Storage Temperature Range | -20°C to 60°C (-4°F to 140°F) |
Height (Console Only) | 351mm (13.8") |
Width (Console Only) | 1446mm (56.9") |
Depth (Console Only) | 803mm (31.6") |
Weight (Console Only) | 54kg (119lb) |
Height (with standard shipping carton) | 595mm (23.5") |
Width (with standard shipping carton) | 1580mm(62.2") |
Depth (with standard shipping carton) | 950mm(37.4") |
Weight (with standard shipping carton) | 96kg (212lb) |
Height (with factory flightcase) | 1117mm(44.0") |
Width (with factory flightcase) | 1530mm(60.3") |
Depth (with factory flightcase) | 530mm(20.1") |
Weight (with factory flightcase) | 141kg(311lb) |
