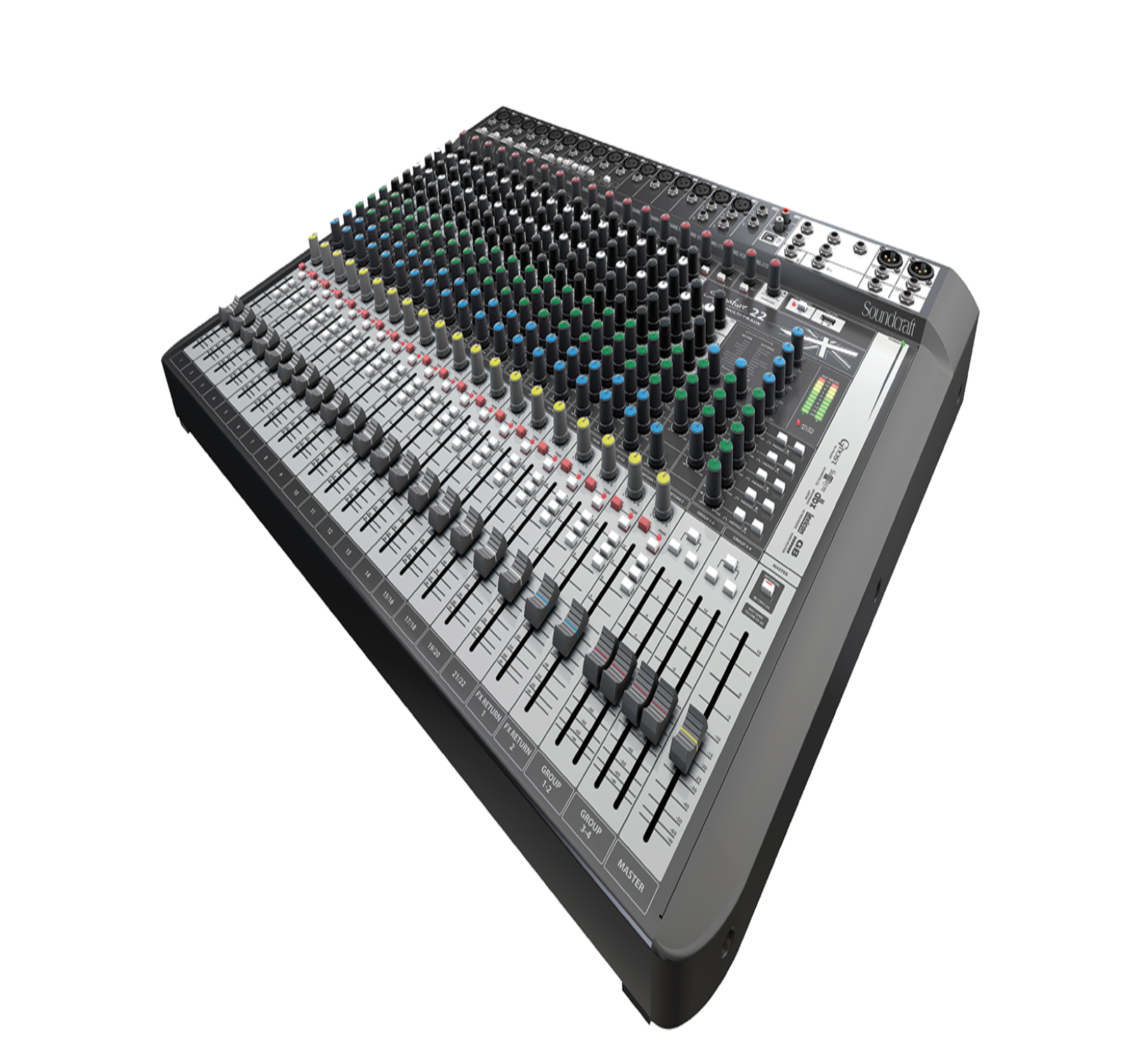

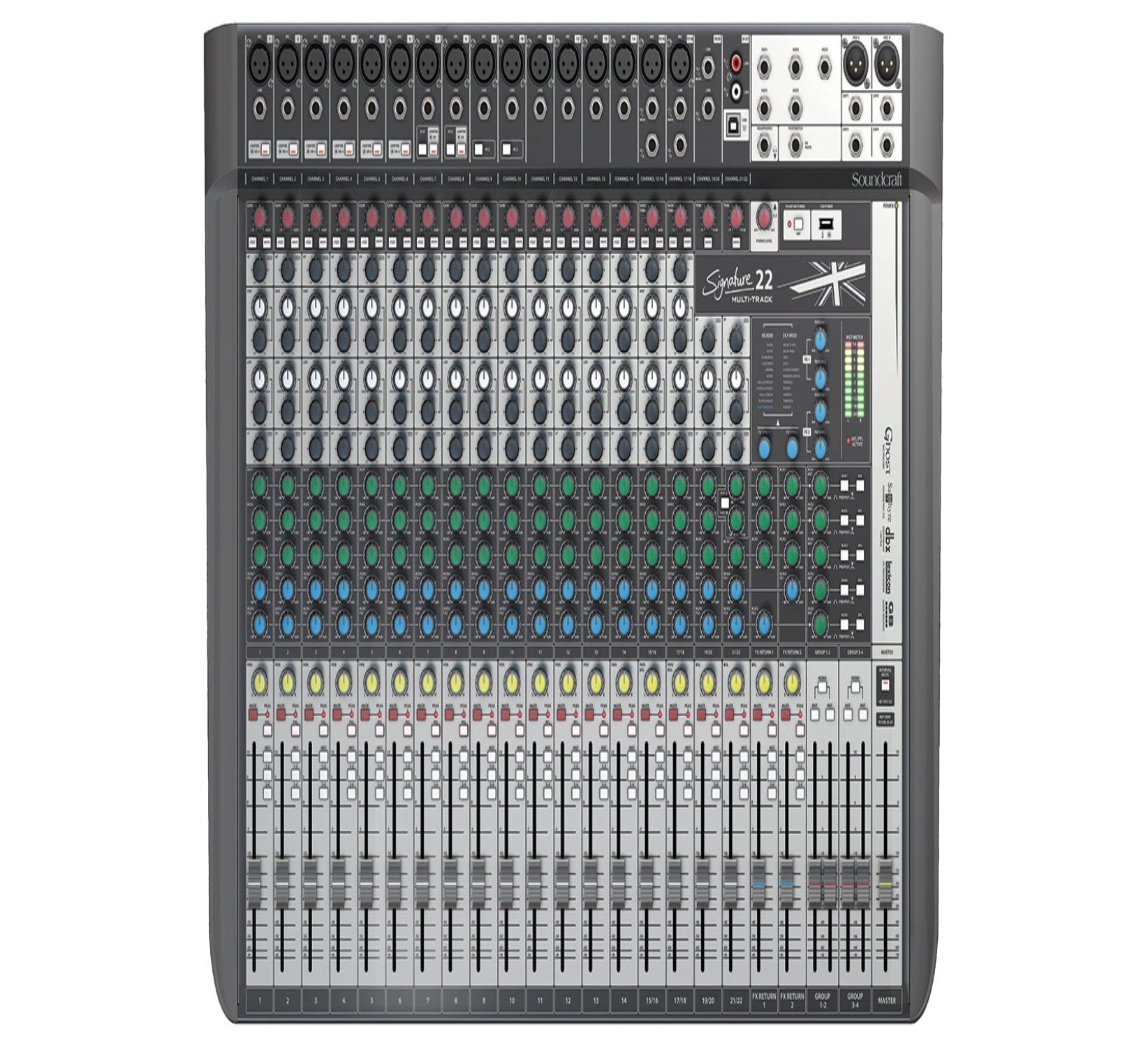

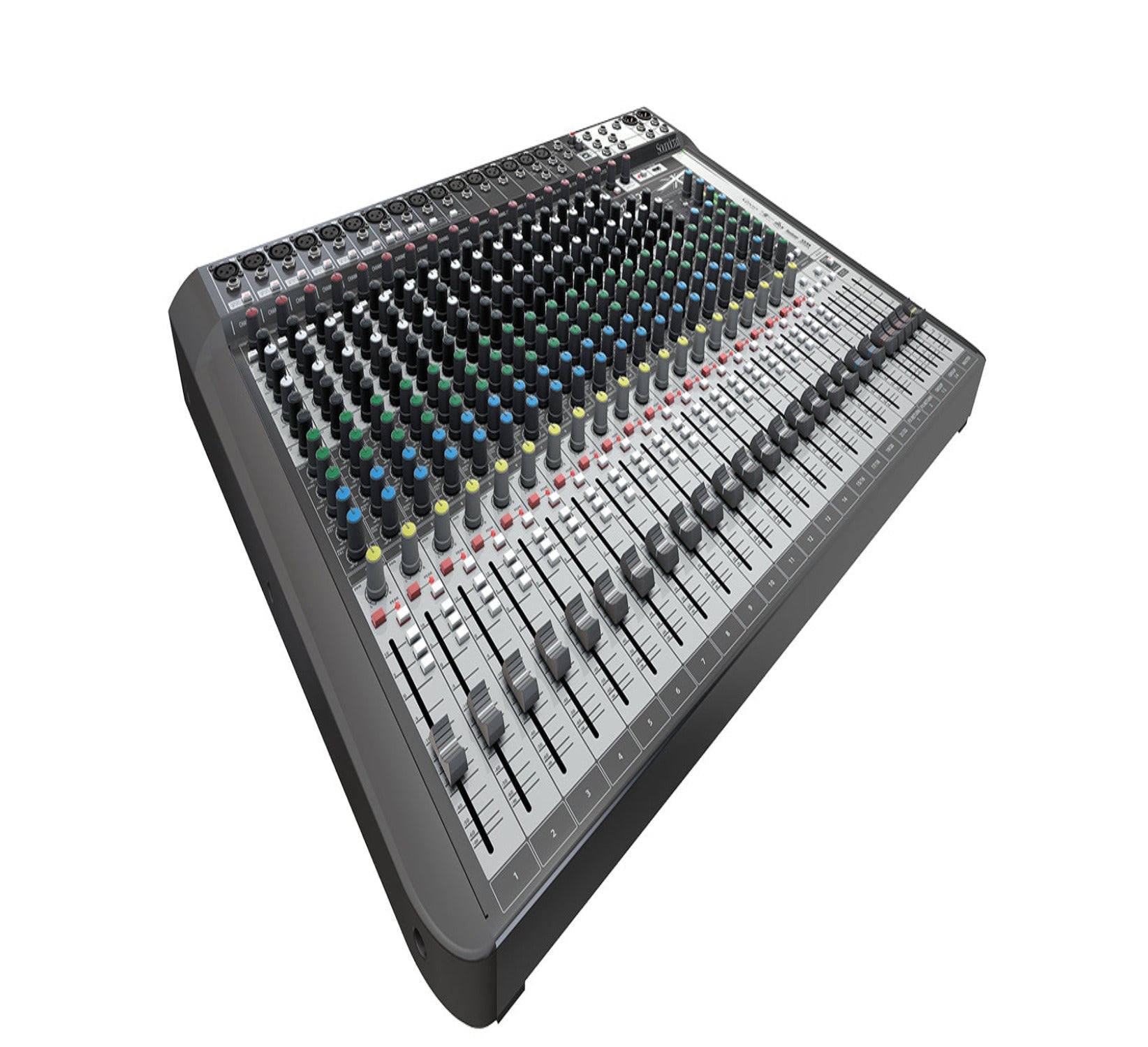

SOUNDCRAFT Signature 22MTK

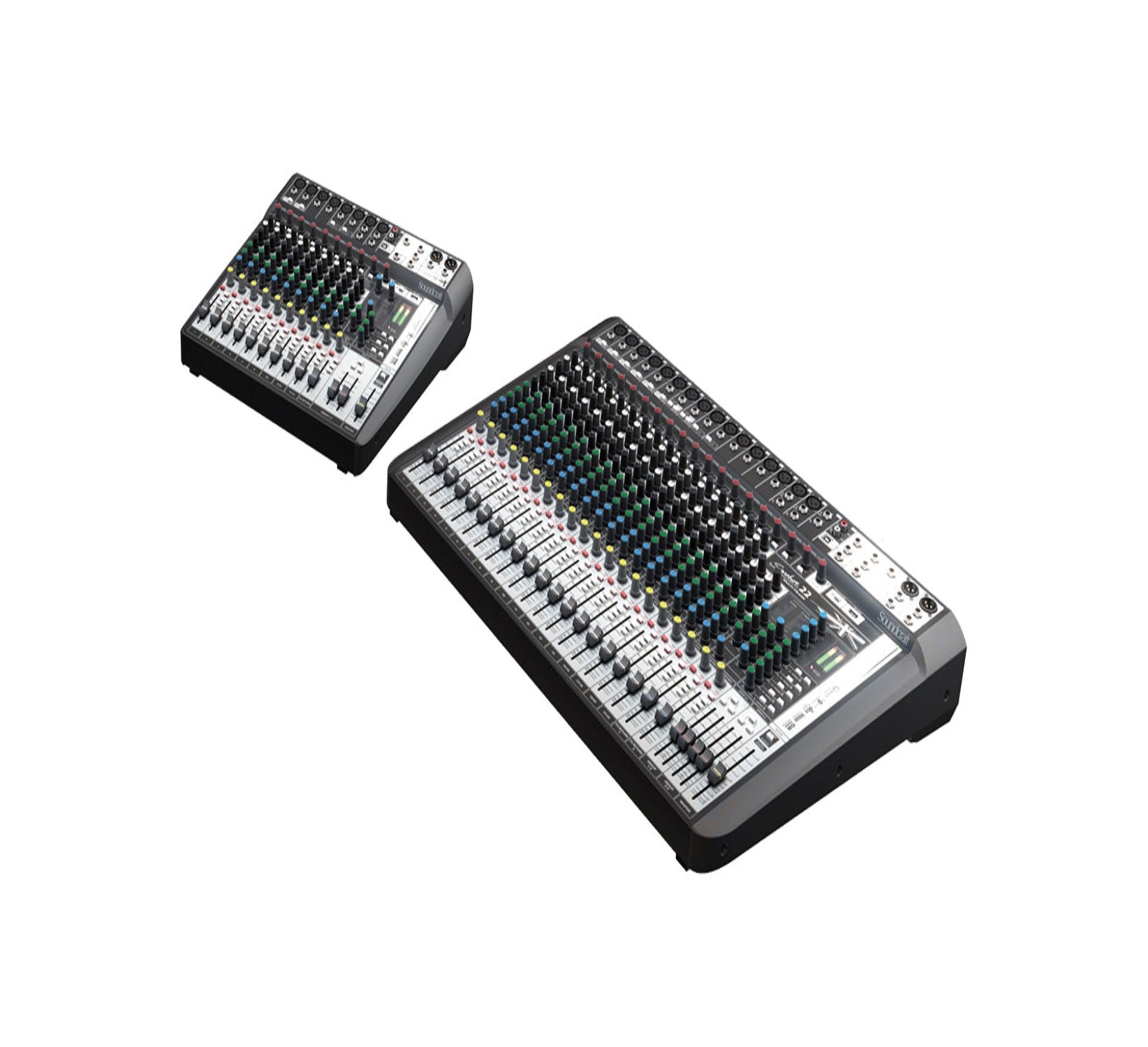

All Soundcraft Signature Series consoles incorporate Soundcraft’s iconic Ghost mic preamps, directly drawn from the company’s top-of-the-line professional consoles, to deliver extraordinary audio quality with high headroom, wide dynamic range and exceptional resolution and clarity with a superb signal to noise ratio. They employ Soundcraft’s Sapphyre Assymetric EQ for perfectly equalizing every vocal and instrumental element in a mix with the unmistakable musicality inherent in every Soundcraft console, plus the GB Series audio routing technology famous in thousands of live venues worldwide.

They all include a wide variety of built-in Lexicon studio-grade reverb, chorus, modulation and other effects and dbx limiters on the input channels. The consoles offer XLR and switchable Hi-Z inputs that enable guitars, basses and other instruments to be directly connected.

All the consoles come with a 2-in/2-out USB interface. Accompanying the consoles are free downloads of the Lexicon MPXL native plug-in and Ableton Live 10 Lite.

In addition, the consoles feature smooth, premium-quality faders with GB® Series audio routing with flexible pre/post switching on each Aux, and subgroups with powerful routing and switching options as well as dedicated outputs. The Signature Series are built using tour-grade robust metal construction and top-quality components and have an internal universal power supply.

More Information

High-Performance 22-input small format analogue mixer with onboard effects and multi-track USB recording and playback
24-in/22-out ultra-low latency USB playback and recording interface*
Iconic Soundcraft® Ghost mic preamps with ultra-low noise performance
Renowned Soundcraft® Sapphyre British EQ with sweepable mid-bands per channel
Lexicon® Effects Engine featuring award-winning Reverbs, Delays, Choruses and Modulations
dbx® Limiters (High-ratio Compressors) on input channels
Switchable Hi-Z inputs for guitars, basses and other instruments
Hi-Pass Filters (low-cut) and 48V Phantom Power on all mic channels
Comprehensive Soundcraft® GB series audio routing with Auxes (flexible pre/post switching) and subgroups with switching and dedicated outputs
Smooth premium-quality 100mm faders
Robust metal construction for tour-grade build quality and reliability
Internal universal power supply

Technical Specification

Type:Analog
Channels:22
Computer Connectivity:USB (24 x 22)
Faders:25 x 100mm Throw
Inputs - Mic Preamps:16 x XLR
Phantom Power:48V
Inputs - Line:20 x 1/4"
Inputs - Other:1 x Stereo (RCA)
Outputs - Main:2 x XLR
Outputs - Other:5 x 1/4" (Aux), 4 x 1/4" (Subgroup), 1 x 1/4" (Footswitch)
Aux Sends:5 x Pre/Post
Busses/Groups:3 x Aux Busses, 2 x Aux/FX Bus, 4 x Mono, 2 x Stereo Subgroups
Headphones:1 x 1/4"
USB:1 x Type A, 1 x Type B
EQ Bands:4-band British
Effects:Yes
Power Source:Standard IEC AC cable
Height:4.3"
Width:26"
Depth:19.3"
Weight:25.1 lbs.
