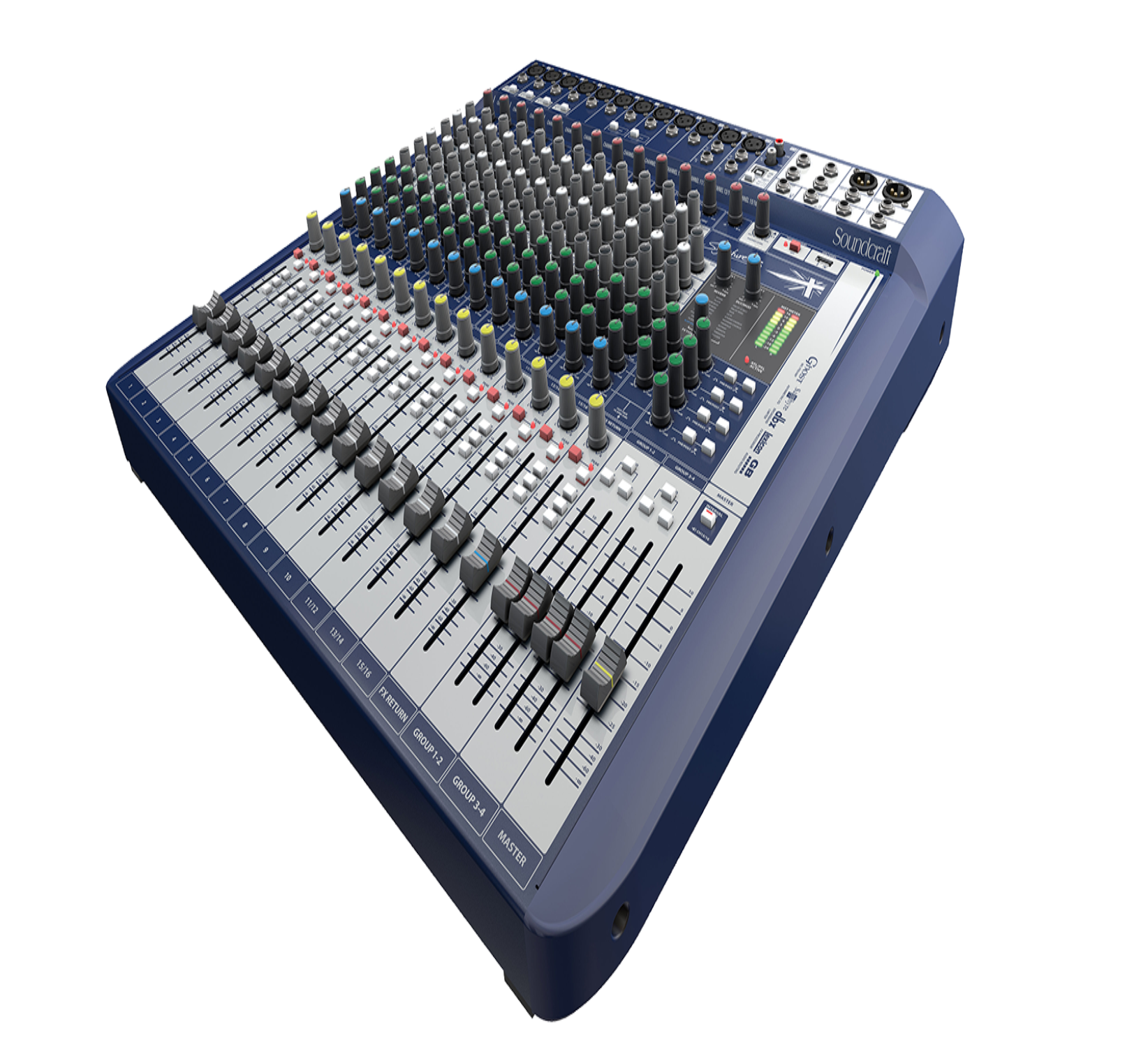

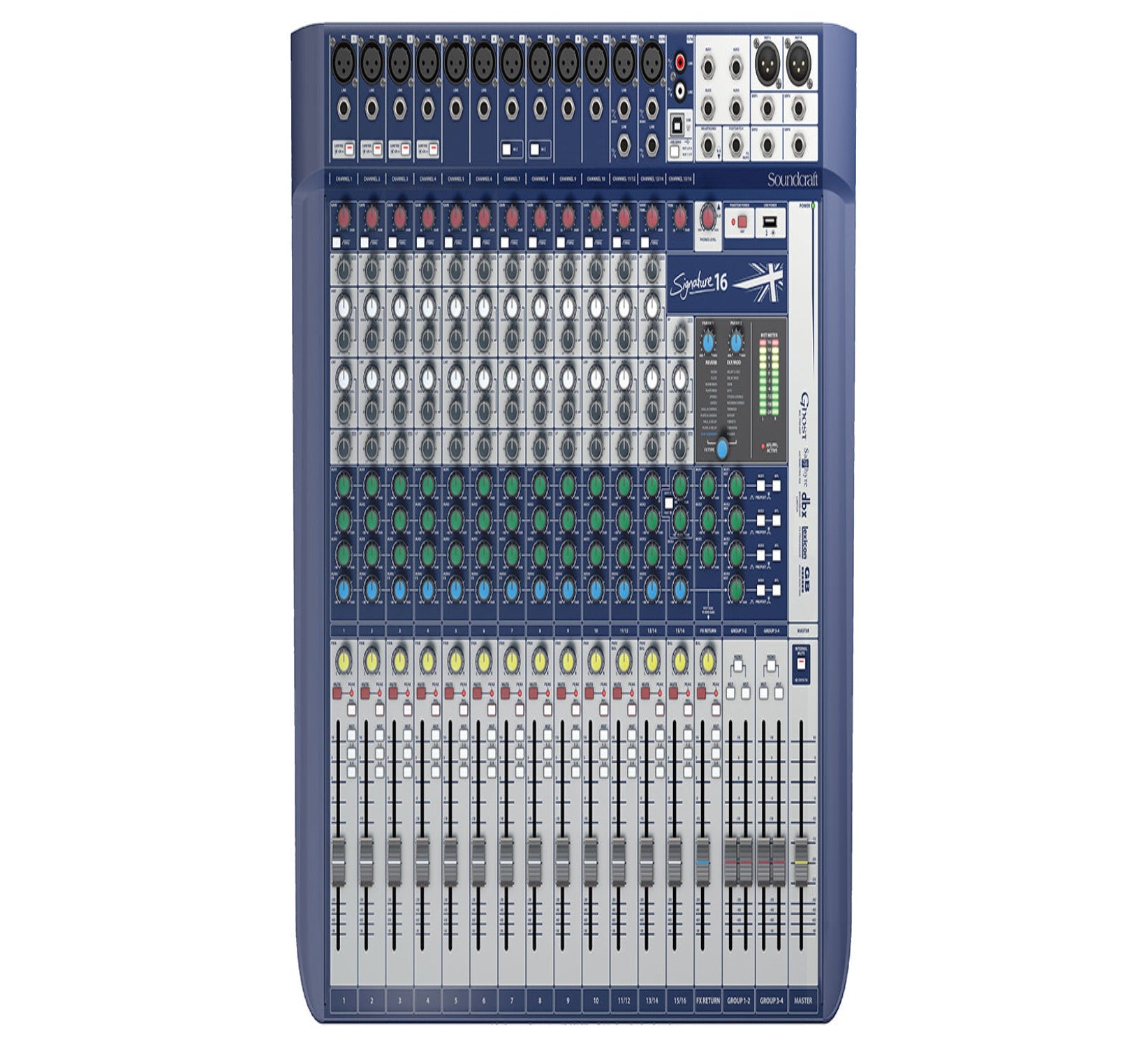

SOUNDCRAFT Signature 16

SOUNDCRAFT Signature 16

All Soundcraft Signature Series consoles incorporate Soundcraft’s iconic Ghost mic preamps, directly drawn from the company’s top-of-the-line professional consoles, to deliver extraordinary audio quality with high headroom, wide dynamic range and exceptional resolution and clarity with a superb signal to noise ratio. They employ Soundcraft’s Sapphyre Assymetric EQ for perfectly equalizing every vocal and instrumental element in a mix with the unmistakable musicality inherent in every Soundcraft console, plus the GB Series audio routing technology famous in thousands of live venues worldwide.

They all include a wide variety of built-in Lexicon studio-grade reverb, chorus, modulation and other effects and dbx limiters on the input channels. The consoles offer XLR and switchable Hi-Z inputs that enable guitars, basses and other instruments to be directly connected.

All the consoles come with a 2-in/2-out USB interface. Accompanying the consoles are free downloads of the Lexicon MPXL native plug-in and Ableton Live 10 Lite.

In addition, the consoles feature smooth, premium-quality faders with GB® Series audio routing with flexible pre/post switching on each Aux, and subgroups with powerful routing and switching options as well as dedicated outputs. The Signature Series are built using tour-grade robust metal construction and top-quality components and have an internal universal power supply.

More Information

  • High-Performance 16-input small format analogue mixers with onboard effects
  • Iconic Soundcraft® Ghost mic preamps with ultra-low noise performance
  • Renowned Soundcraft® Sapphyre British EQ with sweepable mid-bands per channel
  • Lexicon® Effects Engine featuring award-winning Reverbs, Delays, Choruses and Modulations
  • dbx® Limiters (High-ratio Compressors) on input channels
  • 2-in/2-out USB audio playback and recording*
  • Switchable Hi-Z inputs for guitars, basses and other instruments
  • Hi-Pass Filters (low-cut) and 48V Phantom Power on all mic channels
  • Comprehensive Soundcraft® GB Series audio routing
  • Smooth premium-quality faders
  • Robust metal construction for tour-grade build quality and reliability
  • Internal universal power supply

Technical Specification

  • Type:Analog
  • Channels:16
  • Computer Connectivity:USB (2 x 2)
  • Faders:19 x 100mm Throw
  • Inputs - Mic Preamps:12 x XLR
  • Phantom Power:16
  • Inputs - Line:14 x 1/4"
  • Inputs - Other:1 x Stereo (RCA)
  • Outputs - Main:2 x XLR
  • Outputs - Other:4 x 1/4" (Aux), 4 x 1/4" (Subgroup), 1 x 1/4 (Footswitch)
  • Aux Sends:4 x Pre/Post
  • Busses/Groups:3 x Bus (Aux), 1 x Bus (Aux/FX), 4 x Groups (Mono), 2 x Groups (Stereo)
  • Headphones:1 x 1/4"
  • USB:1 x Type B, 1 x Type A
  • EQ Bands:4-band (British)
  • Effects:Yes
  • Power Source:Standard IEC AC cable
  • Height:4.3"
  • Width:19.3"
  • Depth:19.9"
  • Weight:19.1 lbs.
