Soundcraft Si Expression 1

Soundcraft Si Expression 1

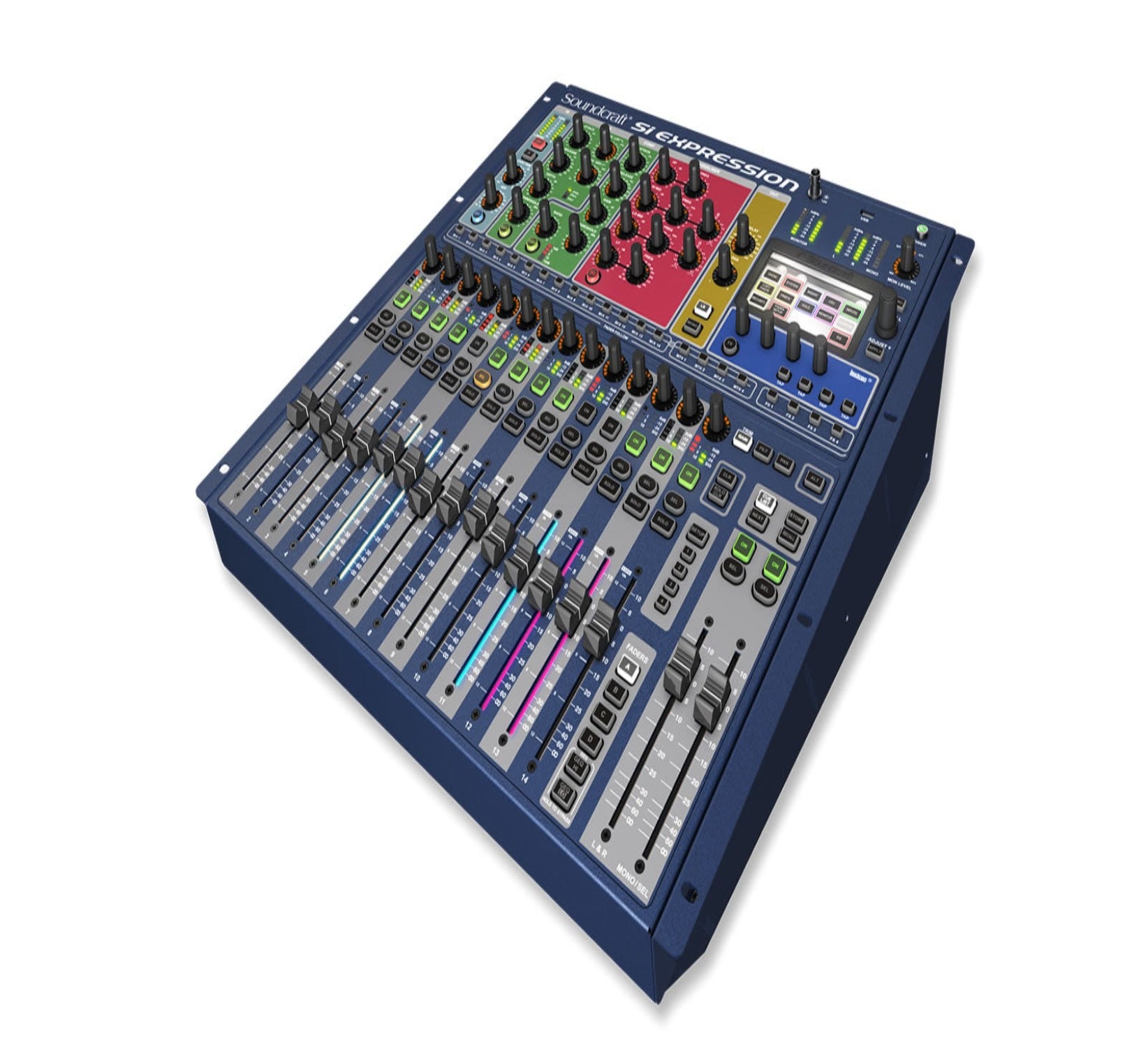

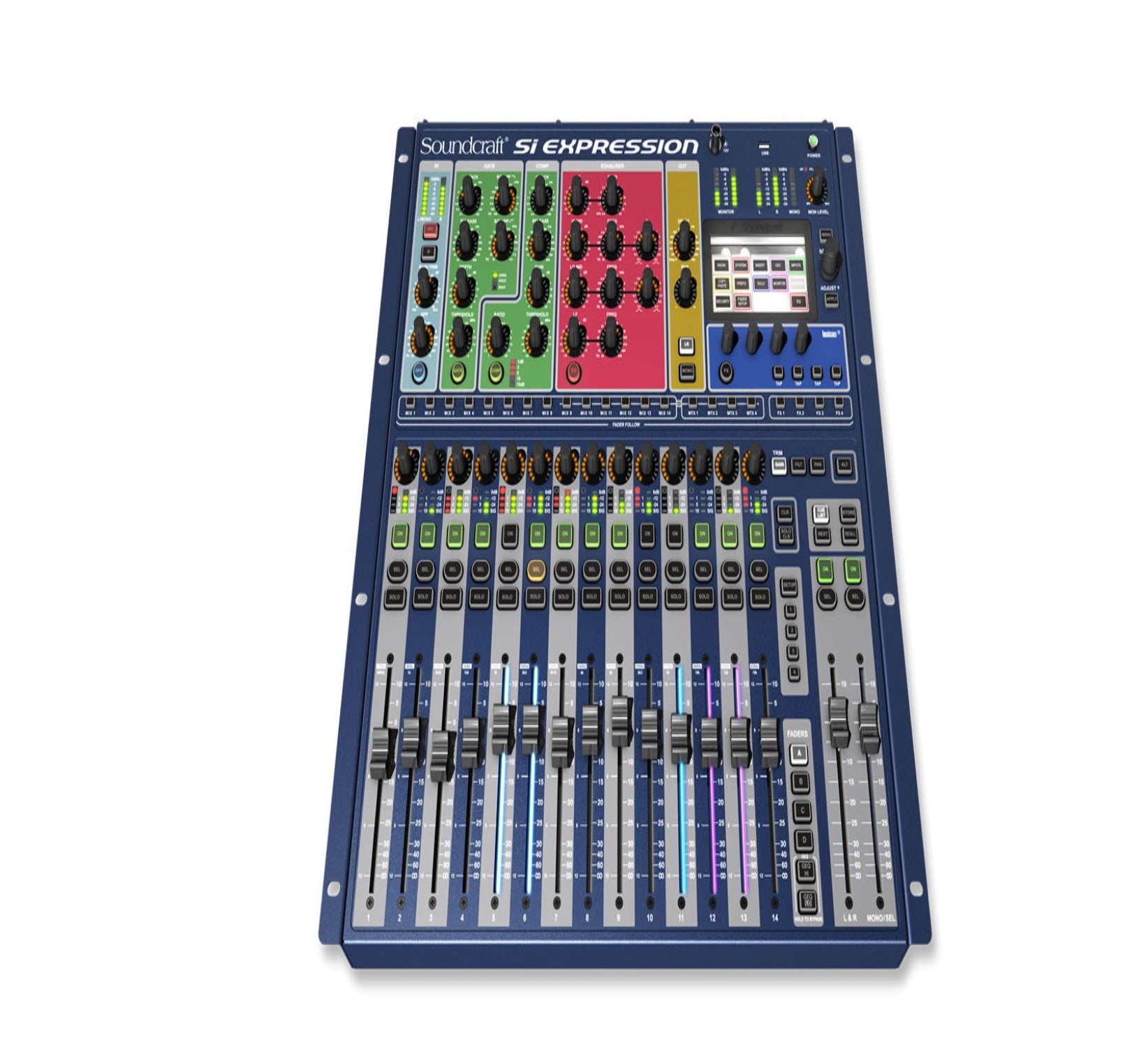

Soundcraft Si Expression 1 - A Powerful and Affordable Digital Mixer

The Soundcraft Si Expression 1 16-channel digital mixer leverages cutting-edge DSP, component technology, and manufacturing techniques to deliver awesome mixing power in a compact, amazingly affordable rackmount package. The Si Expression 1 gives you 16 recallable mic preamps, four line inputs, four internal stereo FX returns, and AES in. A 64 x 64 expansion slot lets you deploy up to 66 input processing channels. Each sports a highpass filter, input delay, gate, compressor, and 4-band EQ. Robust automation and connectivity are the icing on the cake. Take your mixing to the next level, with Soundcraft's Si Expression 1 digital mixer.

More Information

Soundcraft Si Expression 1 16-channel Digital Mixer Features:

  • 16 mono mic inputs; 4 line inputs; AES in and out
  • Color touchscreen interface
  • Up to 66 input processing channels
  • Pre/Post selection per input, per bus
  • Global mode encoders; GEQ on every bus
  • Motorized 100mm faders with FaderGlow (illuminates fader slots according to function)
  • LR and C Mix busses; 4 FX busses; 8 Matrix busses; 20 sub-group / aux busses
  • 4 Stereo Lexicon effects engines
  • Delay on inputs and outputs; freely assignable insert loops
  • Comprehensive automation with four mute groups
  • Harman HiQnet integration; 64 x 64 channel option card slot
  • Option cards include AES, FireWire/USB/ADAT, AVIOM, CobraNet, BSS BLU Link, Dante, optical MADI

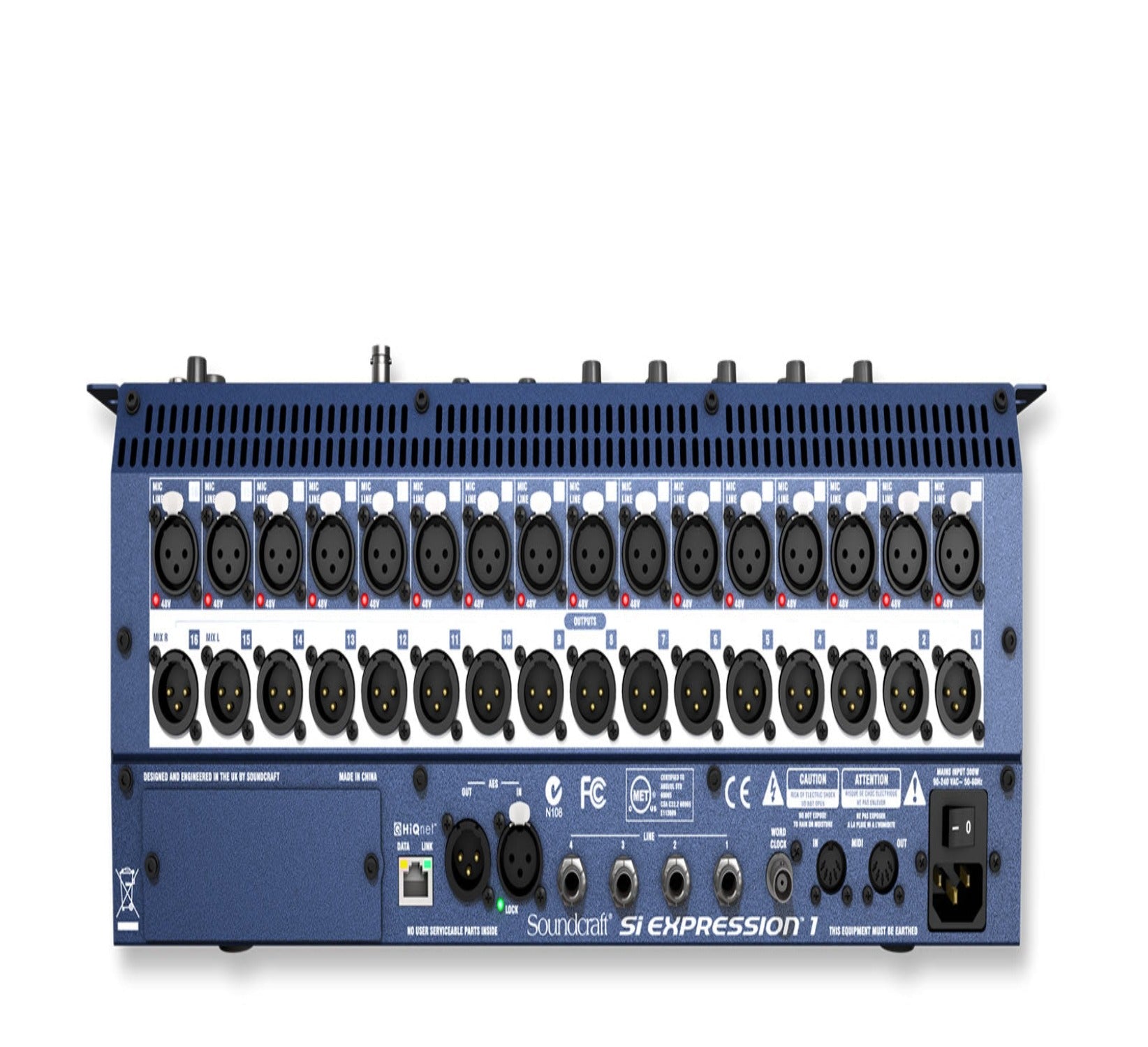

Technical Specification

Tech Specs

  • Type:Digital
  • Channels:16
  • Inputs - Mic Preamps:16 x XLR
  • Inputs - Line:4 x TRS
  • Outputs - Main:2 x XLR
  • Outputs - Other:16 x XLR
  • Inputs - Digital:1 x Stereo AES/EBU (XLR)
  • Outputs - Digital:1 x Stereo AES/EBU (XLR)
  • Aux Sends:20 x Aux Sends
  • Busses/Groups:4 x Bus
  • Data I/O:Harman HiQnet
  • Computer Connectivity:Via Optional Firewire/USB/ADAT Card
  • I/O Expansion Slots:Yes
  • Faders:16 x 100mm
  • EQ Bands:4-band
  • Rackmountable:Yes
  • Height:6.7"
  • Depth:20.5"
  • Width:19"
  • Weight:24.2 lbs.
