SOUNDCRAFT FX SERIES LX7ii 24

SOUNDCRAFT FX SERIES LX7ii 24

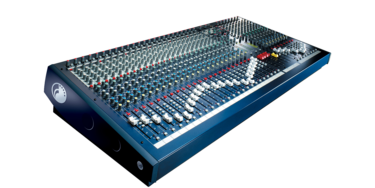

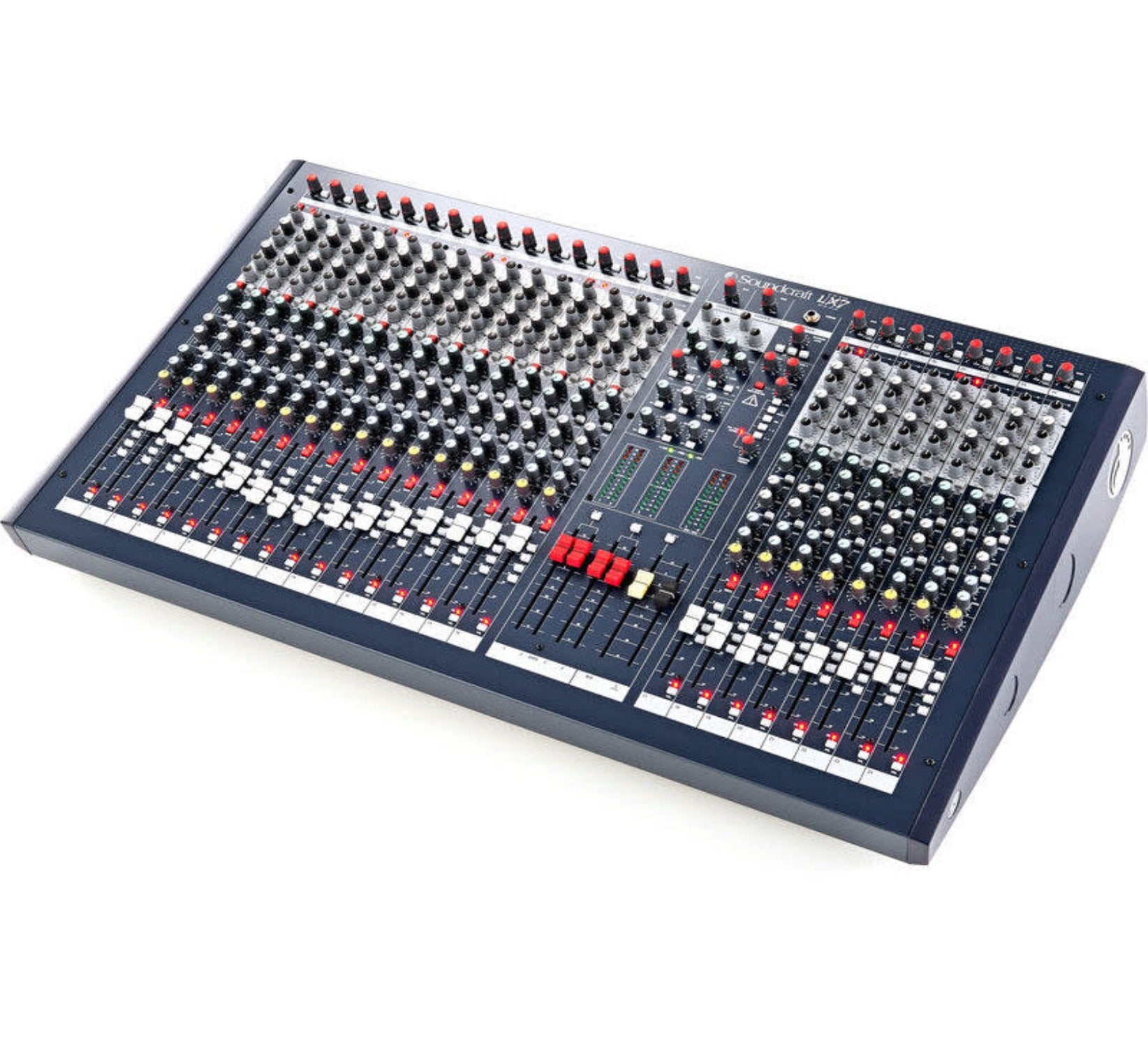

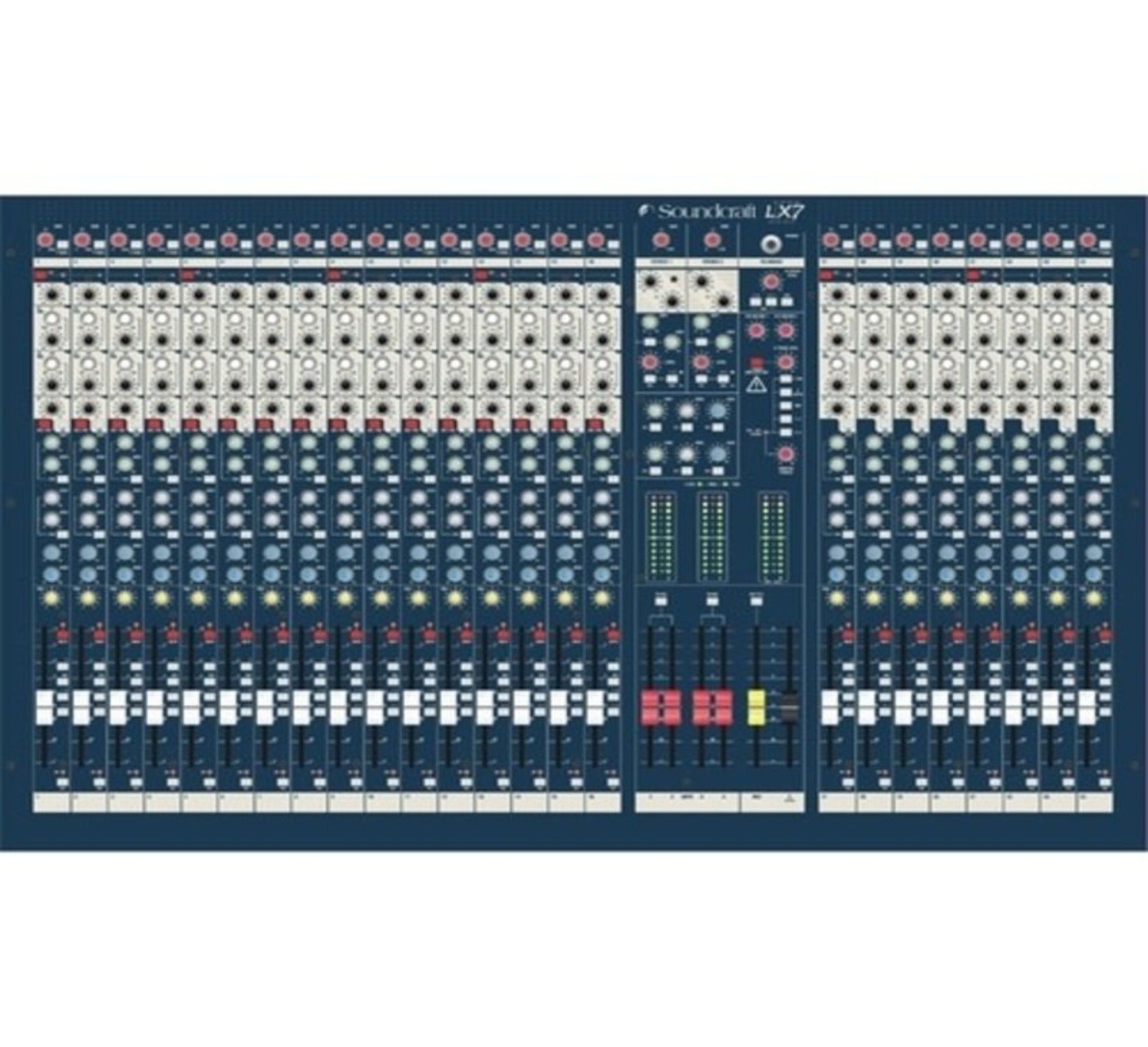

The Soundcraft LX7ii 24 is part of Soundcraft’s second generation of their acclaimed LX7 consoles. On the Lx7ii 24, Soundcraft’s founder and resident electronics wizard, Graham Blyth, completely redesigned the mic pre and EQ sections, taking the precision and quality found on their high-end consoles and packing it into a smaller, more affordable, and stylish desk. With 24 input channels and an intuitive control surface, the LX7ii 24 is the perfect mixing solution for both recording and live applications. If you’re on a budget, but can’t stop dreaming about that flagship, high-end Soundcraft sound, take home the LX7ii 24!

More Information

  • 24 input channels
  • 48v phantom power switched in blocks of four
  • 1/4″ line input jack for balanced or unbalanced instruments
  • GB30 padless mic preamp provides up to +15dBu input capability
  • 18dB per octave highpass filter straight after preamp
  • Pre-fade, pre-EQ (but post highpass filter) insert point
  • Direct outputs on all but the last 8 channels
  • Premium mic pres
  • Enhanced, switching EQ section
  • 6 flexible aux sends
  • Pre-fader, post-EQ soloing
  • LED doubles as a peak indicator
  • Stereo input section
  • Group, master, and control room sections

The Soundcraft Lx7ii 24 is an excellent mixer for both recording as well as live sound applications!

Technical Specification

  • Type:Analog
  • Channels:24
  • Faders:30 x 100mm

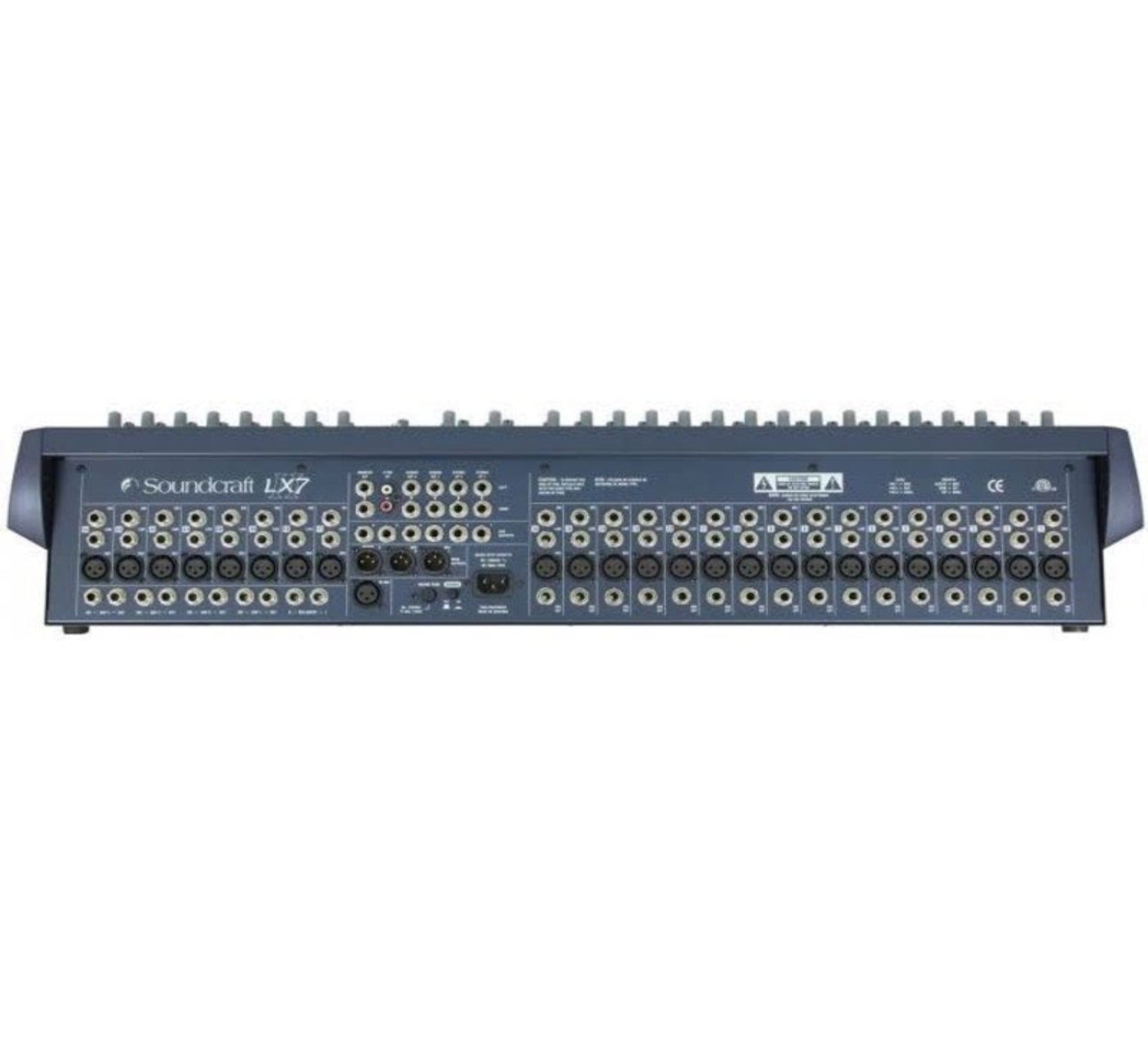

  • Inputs – Mic Preamps:24 x XLR
  • Phantom Power:24
  • Inputs – Line:24 x 1/4″, 4 x 1/4″ (Stereo 1/2)
  • Outputs – Direct:24 x 1/4″ (CH 1-24)
  • Aux Sends:4 x Pre/Post, 2 x Post
  • Busses/Groups:4 x Bus
  • Channel Inserts:Yes (CH 1-24)
  • Talkback:Yes
  • EQ Bands:4-band Sweepable Hi-Mid/Lo-Mid
  • Height:6.5″
  • Width:33.7″
  • Depth:19.8″
  • Weight:48 lbs.
