SOUNDCRAFT FX SERIES LX7ii 32

SOUNDCRAFT FX SERIES LX7ii 32

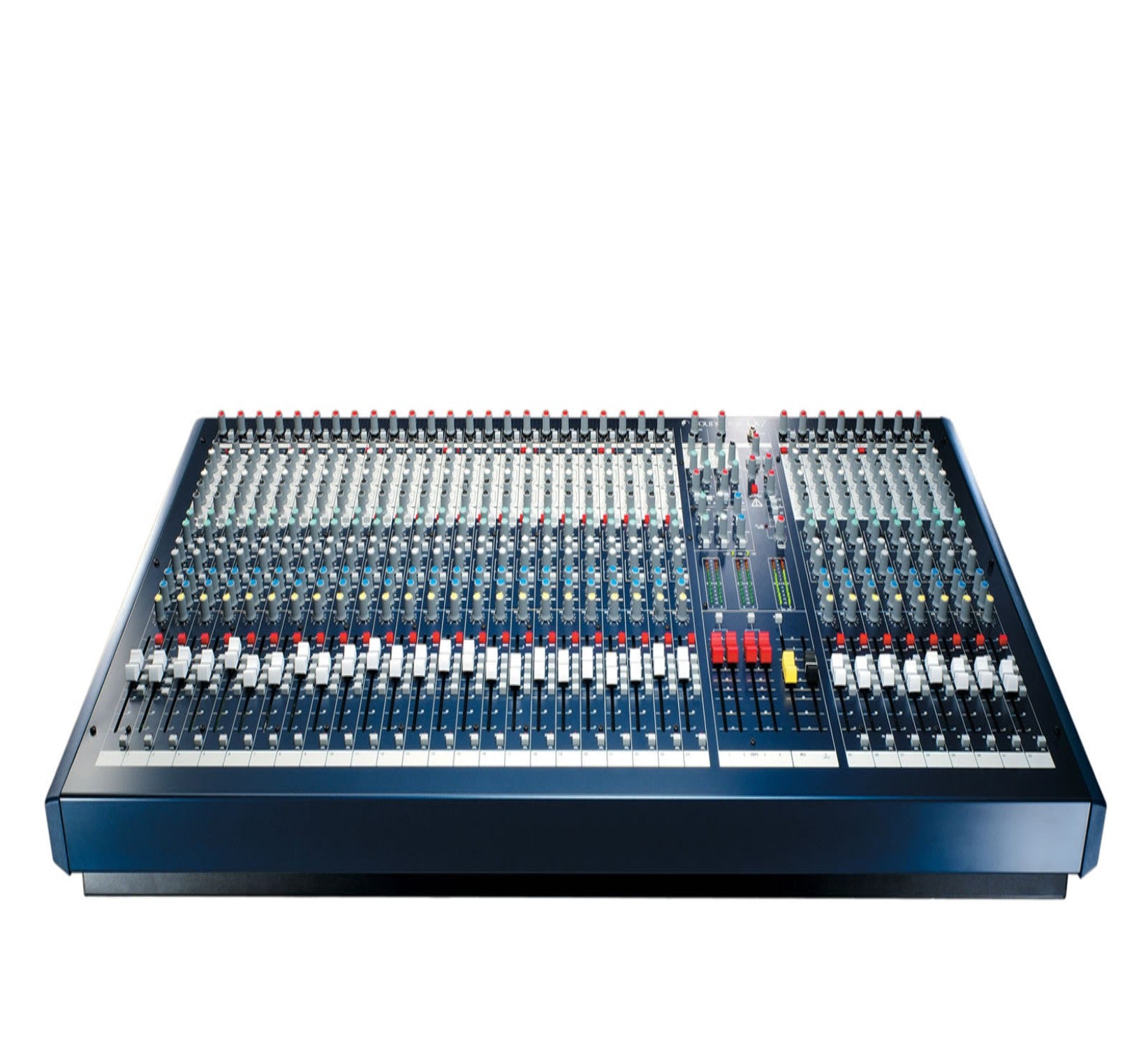

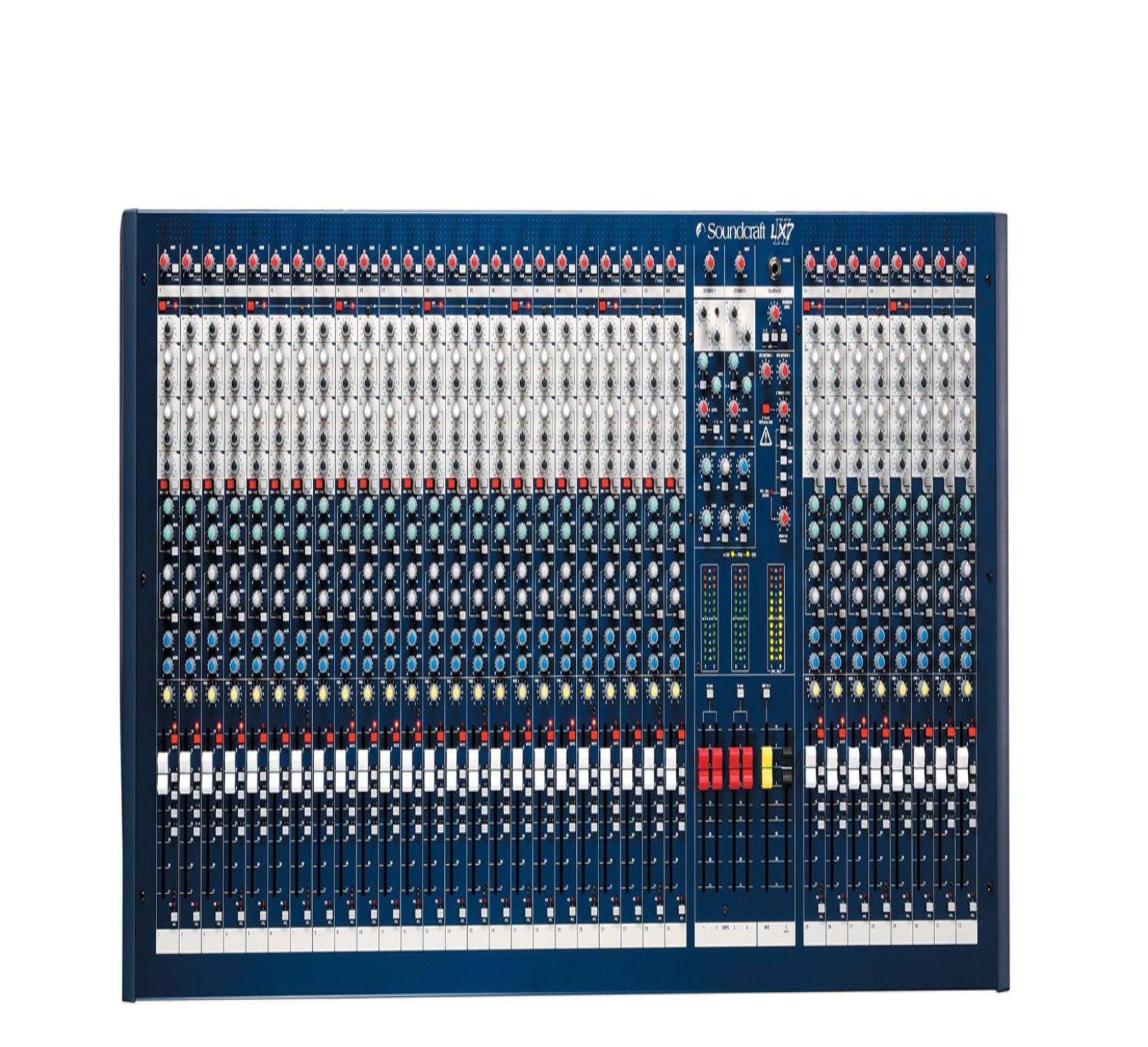

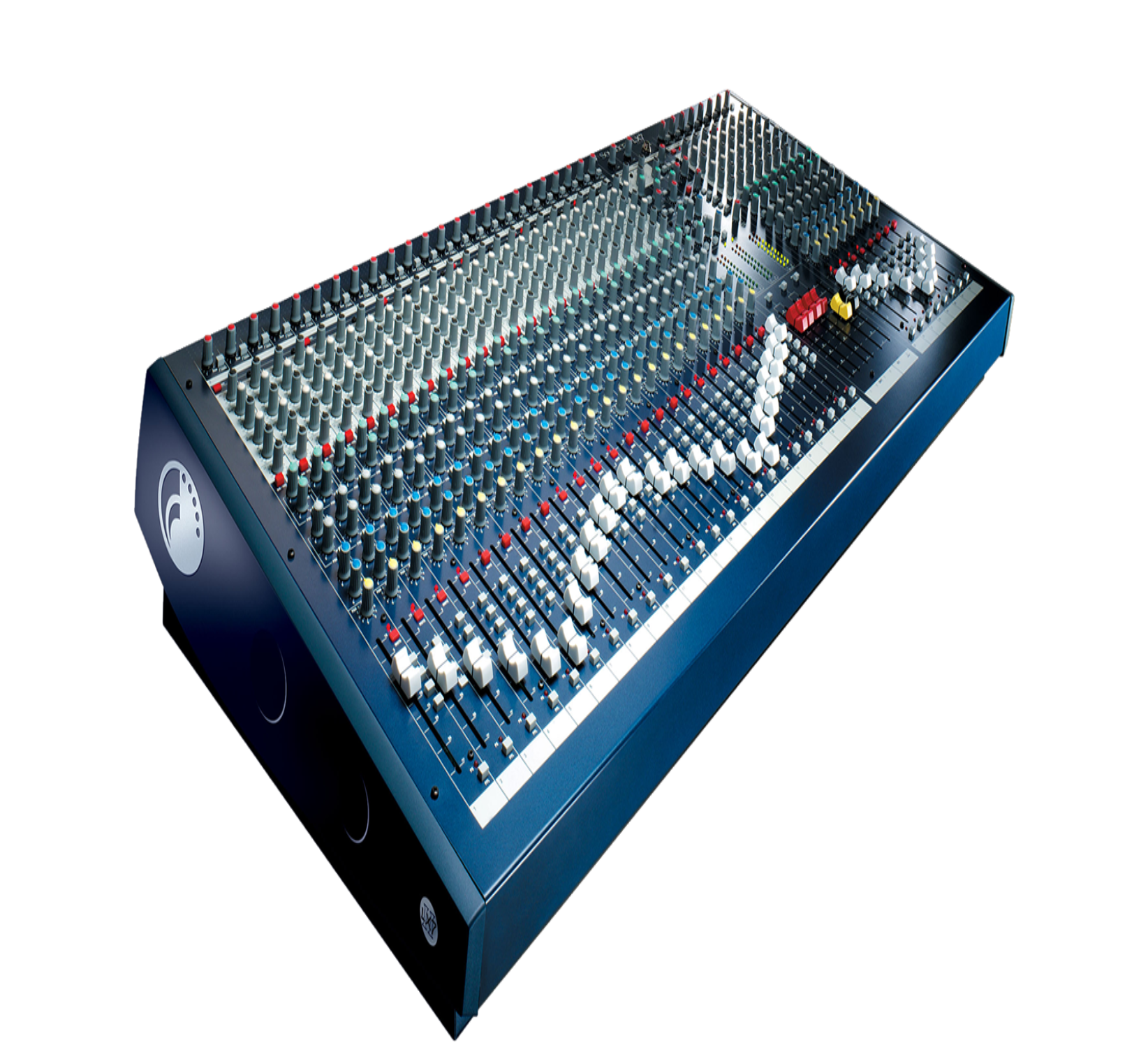

The Soundcraft LX7ii 32 is part of the LX7ii series, Soundcraft’s second generation of their acclaimed LX7 consoles. On the Lx7ii, Soundcraft’s founder and resident electronics wizard, Graham Blyth, completely and effectively redesigned the mic pre and EQ section, taking the precision and quality found on their larger, high-end consoles and packing it into a smaller, more affordable, and stylish desk. With 32 high quality input channels, and an easy to use control surface layout, the LX7ii 32 is the perfect mixing solution in both recording as well as live applications. If you’re on a budget, but can’t stop dreaming about that flagship, high-end Soundcraft Sound, take home the LX7ii 32!

More Information

  • 32 input channels
  • 48v phantom power switched in blocks of 4
  • 1/4″ line input jack for balanced or unbalanced instruments
  • GB30 padless mic provides up to +15dBu input capability
  • 18dB per octave highpass filter straight after preamp
  • Pre-fade, pre-EQ (but post highpass filter) insert point
  • Direct outputs on all but the last 8 channels
  • Premium mic pres
  • Enhanced, switching EQ section
  • 6 flexible aux sends
  • Pre-fader, post-EQ soloing
  • LED doubles as a peak indicator
  • Stereo input section
  • Group, master, and control room sections

The Soundcraft Lx7ii 32 is an excellent mixer for both recording as well as live sound applications!

Technical Specification

  • Type:Analog
  • Channels:32
  • Faders:38 x 100mm
  • Inputs – Mic Preamps:32 x XLR
  • Phantom Power:32
  • Inputs – Line:32 x 1/4″, 4 x 1/4″ (Stereo 1/2)
  • Outputs – Direct:32 x 1/4″ (CH 1-32)
  • Aux Sends:4 x Pre/Post, 2 x Post
  • Busses/Groups:4 x Bus
  • Channel Inserts:Yes (CH 1-32)
  • Talkback:Yes
  • EQ Bands:4-band Sweepable Hi-Mid/Lo-Mid
  • Height:6.5″
  • Width:41.7″
  • Depth:19.8″
  • Weight:56 lbs.
