SHURE SLXD24D/SM58
SHURE SLXD24D/SM58
Pure Wireless Performance

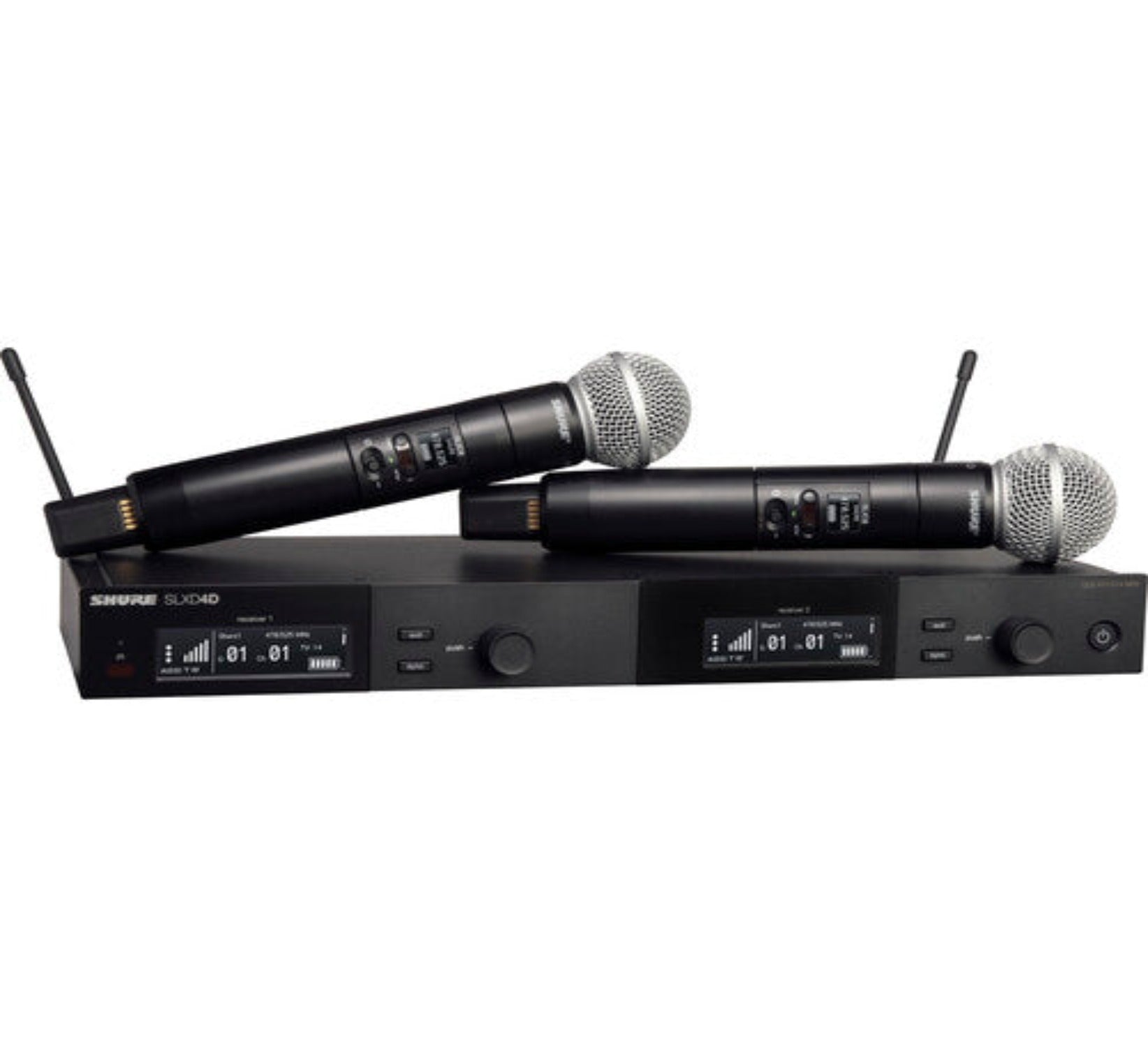

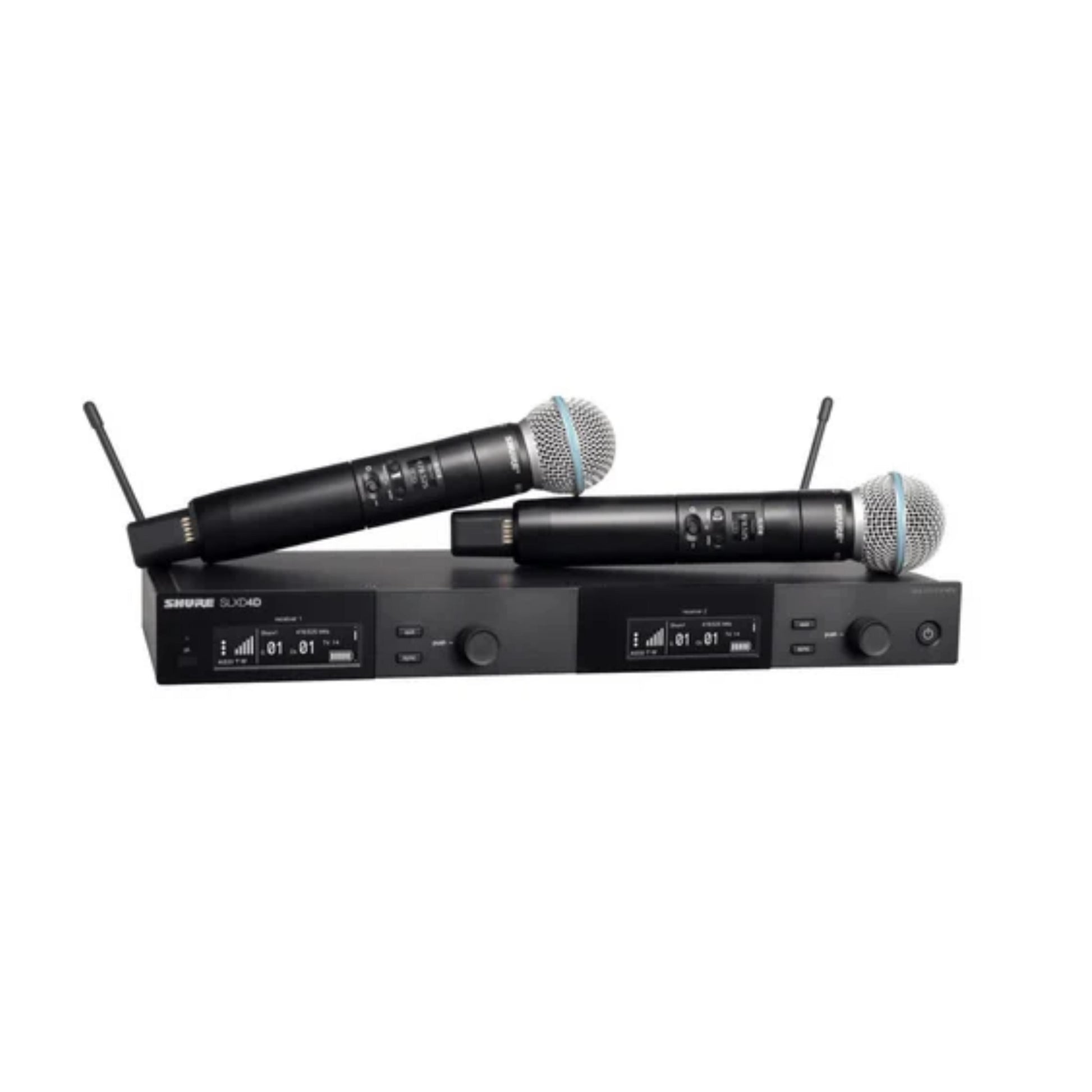

The Shure SLXD24D/SM58 Dual Hand Wireless Microphone System includes two Shure SM58 Handheld Transmitters and the SLXD4D 2-channel Digital Wireless Receiver. The SM58 is seen on stages around the world because of its legendary sound and its go-anywhere, do-anything construction. If you love the SM58 already and want a wireless version, this is the system to choose.Shure’s cutting edge digital wireless technology delivers 24-bit audio resolution with an almost imperceptible 3.2ms of latency. Add in the working range of 100 meters (328 feet), and you’ve got a recipe for serious wireless potential. If you’re ready to take the plunge and give your system a much-needed upgrade, you can’t go wrong with a Shure SLX-D wireless setup.
More Information
More Information
Technical Specification
Technical Specification
| Shure SLXD24D Specs | |
| System | |
| Wireless Technology | Digital UHF |
| Number of RF Channel Frequencies | 1760 |
| Included Transmitters | 2 x Handheld |
| Diversity | True Digital Diversity |
| RF Frequency Band | G58: 470 to 514 MHz |
| RF Bandwidth | 44 MHz |
| Frequency Step Size | 25 kHz |
| RF Channel Scanning | Auto-Scan |
| Max Operating Range | 328' / 100 m |
| Max Transmitters per Band | 32 |
| Sample Rate/Resolution | 24-Bit |
| Latency | 3.2 ms |
| Dynamic Range | 120 dBA (Typical) |
| Encryption | None |

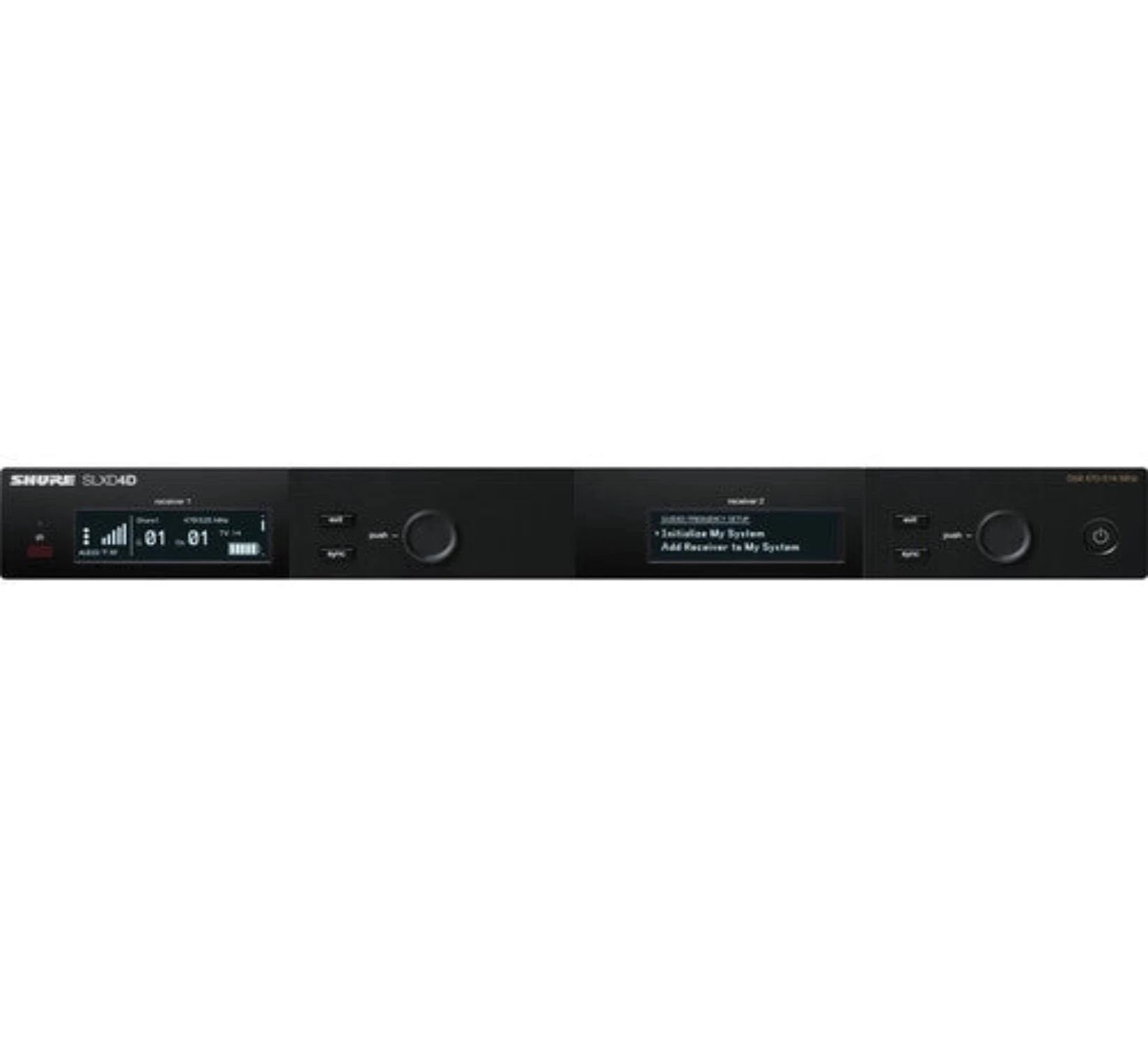

| Receiver | |
| Receiver Type | Rackmount |
| Mounting Options | Rackmount (with Included Hardware) |
| Rackmount Size | 1 RU (Full Rack) |
| Antenna | 2 x 1/4 Wave External, BNC (Rear-Mount) |
| Number of Audio Channels | 2 |

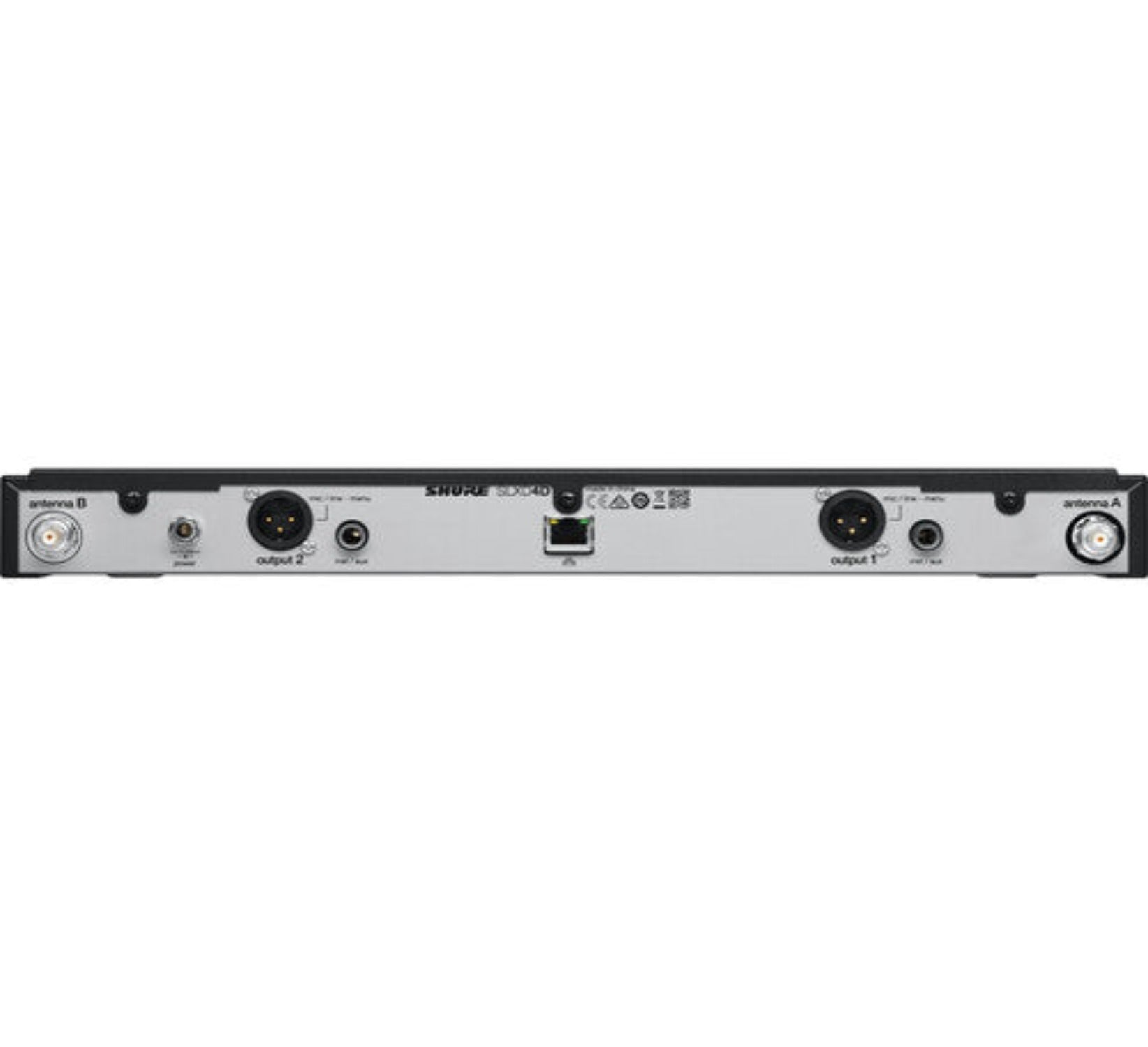

| Audio I/O | 2 x XLR 3-Pin Male Balanced Mic/Line Output 2 x 1/4" TRS Female Balanced Output (Lockable) |
| Gain Range | 0 to +21 dB (3 dB Steps) |
| Pad | 30 dB |
| Audio Output Level | -18 to +42 dB (Balanced, Unbalanced) |
| Phantom Power Protection | On 1/4", XLR Outputs |
| Frequency Response | 20 Hz to 20 kHz +1/-2 dB (Dependent on Mic) |
| Network I/O | 1 x RJ45 (10/100 Mb/s) |
| Network Protocols | DHCP, Manual IP |
| Impedance | 1/4" Output: 1.3 Kilohms (Balanced) 670 Ohms (Unbalanced) XLR Output: 400 Ohms (Balanced) 150 Ohms (Balanced) |
| Adjacent Channel Isolation | >70 dB |
| Spurious | Rejection: >75 dB |
| Power Requirements | AC/DC Power Adapter |
| AC/DC Power Adapter | 15 VDC at 600 mA, Center-Positive (Included) |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Display & Indicators | LCD (AF Level, Channel, Group, RF Level, Transmitter Battery Status) |
| Housing | Steel |
| Operating Temperature | 0 to 122°F / -17 to 50°C |
| Storage Temperature | -20 to 165°F / -28 to 73°C |
| Dimensions | 15.5 x 1.7 x 6" / 393 x 42 x 152 mm |
| Weight | 3.1 lb / 1.4 kg (without Antenna) |

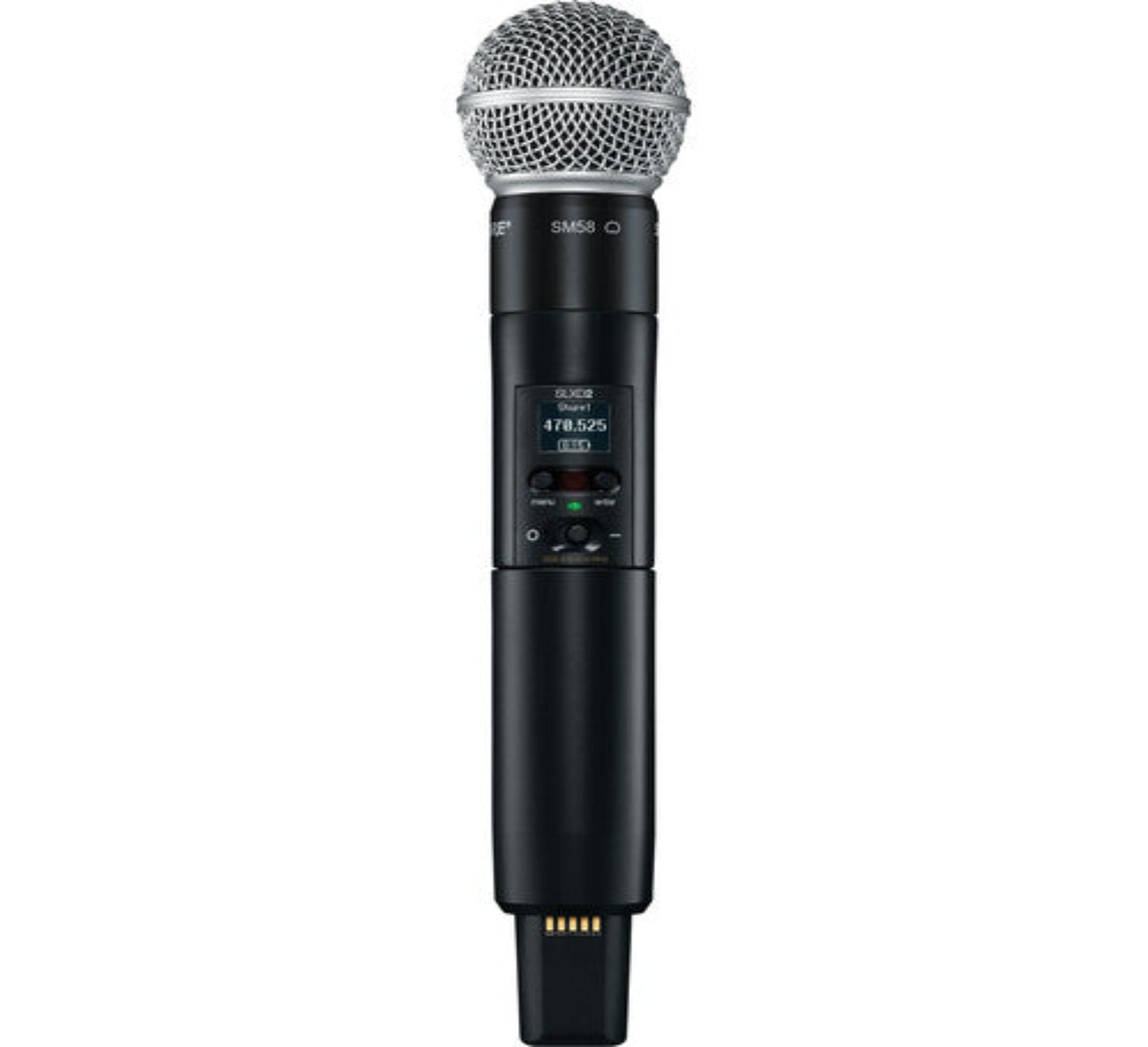

| Transmitter | |
| Transmitter Type | Handheld |
| RF Output Power | 1 / 10 mW |
| Audio I/O | None |
| Pad | None |
| Muting | None |
| Audio Input Level | 8.2 dBV |
| Auto-Level Control | No |
| Gain Range | 0 +21 dB |
| Signal Processing | None |
| Frequency Response | 20 Hz to 20 kHz (Dependent on Mic) |
| Sync Method | IR |
| Antenna | Internal Single-Band Helical |
| Power Requirements | Battery |
| Battery Type | 2 x AA (Included) 1 x Shure SB 903 (Not Included) |
| Battery Charging Time | 1.25 to 5.5 Hours |
| Approx. Battery Life | 8 Hours (Lithium Shure SB903) 8 Hours (Alkaline) |
| USB/Lightning Connectivity | None |
| Display & Indicators | LCD (Battery Status, Channel, Group, Power) |
| Housing | Aluminum |
| Operating Temperature | 0 to 122°F / -17 to 50°C |
| Storage Temperature | -20 to 165°F / -28 to 73°C |
| Dimensions | 1.5 x 0.3" / 37.1 x 6.9 mm |
| Weight | 5.2 oz / 147 g |
| Microphone | |
| Microphone Type | Handheld Capsule |
| Sound Field | Mono |
| Capsule | Dynamic |
| Polar Pattern | Cardioid |
| Frequency Range | 50 Hz to 15 kHz |
| Sensitivity | -54.5 dBV/Pa |
| CMRR | None |
| Diameter | 1.97" / 50 mm |
