SENNHEISER XSW 1-ME2

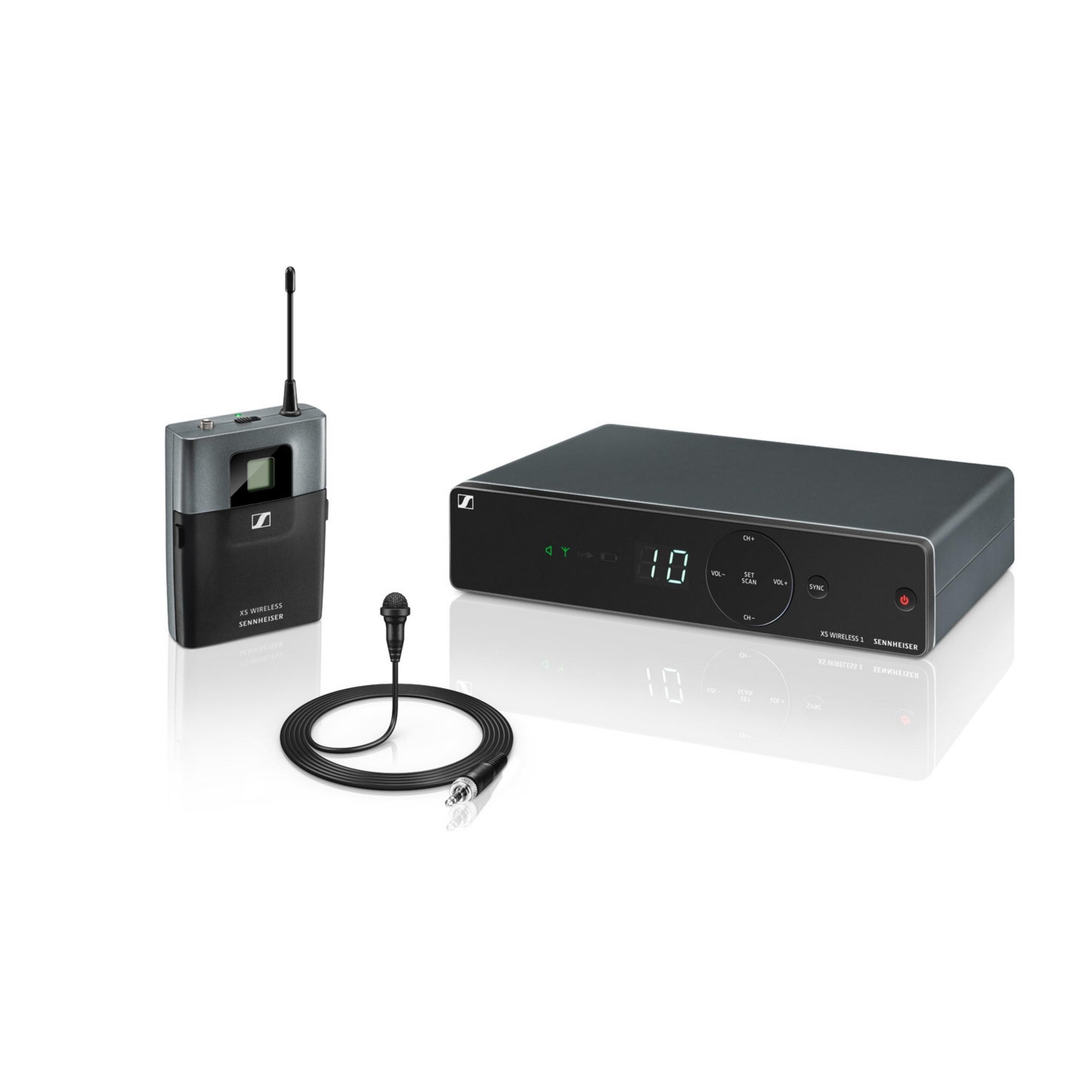

Inspire your audience. Go for XS WIRLESS 1 and rely on a solid wireless transmission with up to 10 compatible channels in a stable UHF band. The XS WIRELESS 1 LAVALIER MIC SET is an easy to use all-in- one wireless system for presenters and moderators, excellent for a powerful and inspiring presentation. The set includes an intuitive stationary receiver for quick set-up and hassle-free handling, as well as a lightweight bodypack transmitter and an unobstrusive clip-on microphone.

More Information

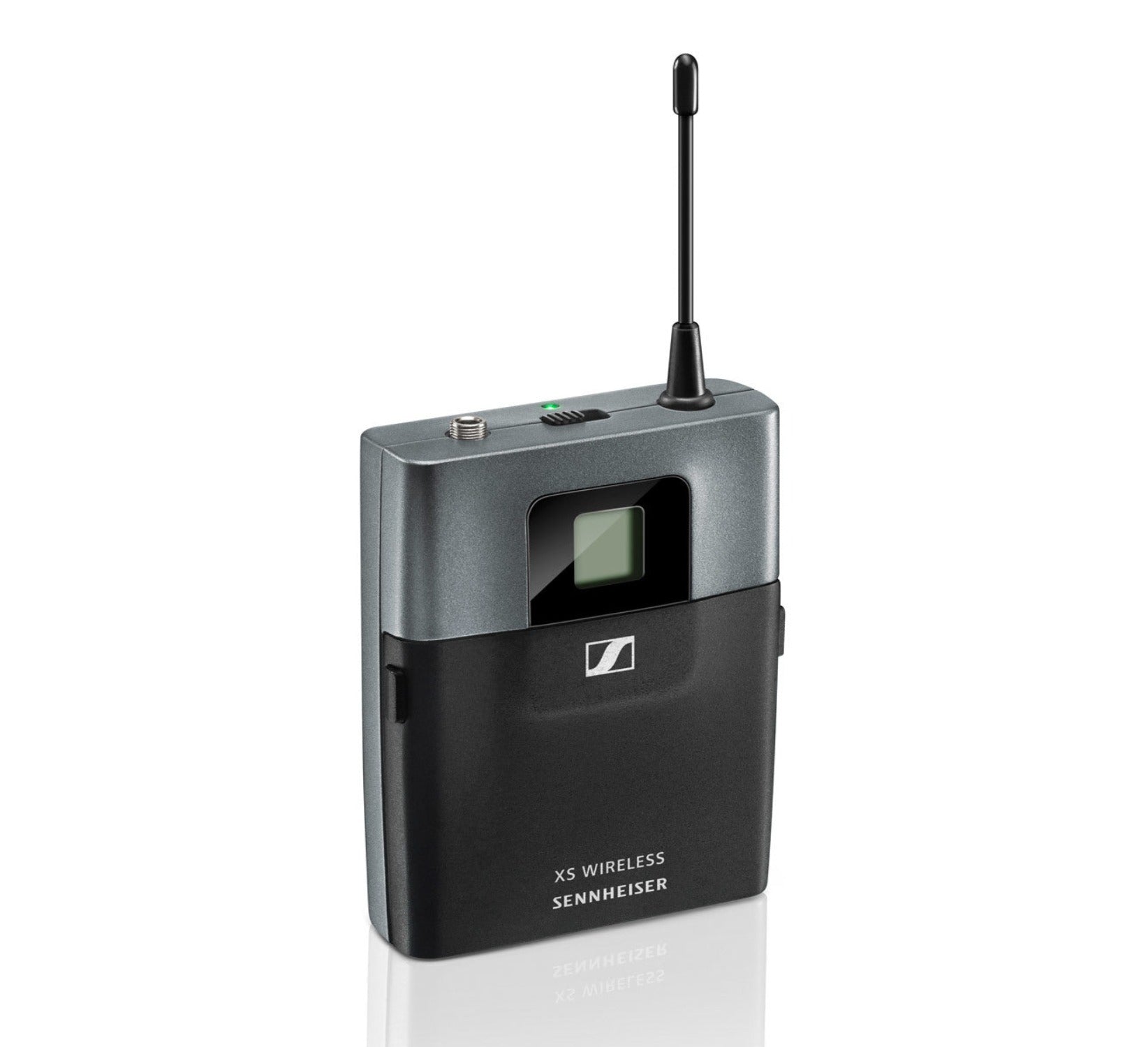

Compact bodypack transmitter, unobstrusive clip-on microphone
Antenna-switching diversity reception
Integrated antennas
Automatic frequency management and synchronization via remote channel for easy setup
Selectable UHF frequencies within a large bandwidth
Up to 10 compatible channels

Technical Specification

Receivers

Dimensionsapprox. 200 x 42 x 127 mm
Weightapprox. 340g
Power supply12 V DC nom. / 300 mA
AF frequency response50 to 16,000 Hz (–3 dB)

Transmitter

Dimensionsapprox. 71 x 96 x 28 mm

Weightapprox. 95g

Power supply2 AA size batteries, 1.5 V

Adjustment Range Transmitter0 to -30 dB, adjustable in 10 dB steps

Microphonecondenser

THD, total harmonic distortion≤ 0.9%

Pick-up patternomni-directional

Signal-to-noise ratio≥ 103 dBA

RF output power10 mW

Switching bandwidthup to 24 MHz

Operating timeapprox. 10 hrs

Modulationwideband FM

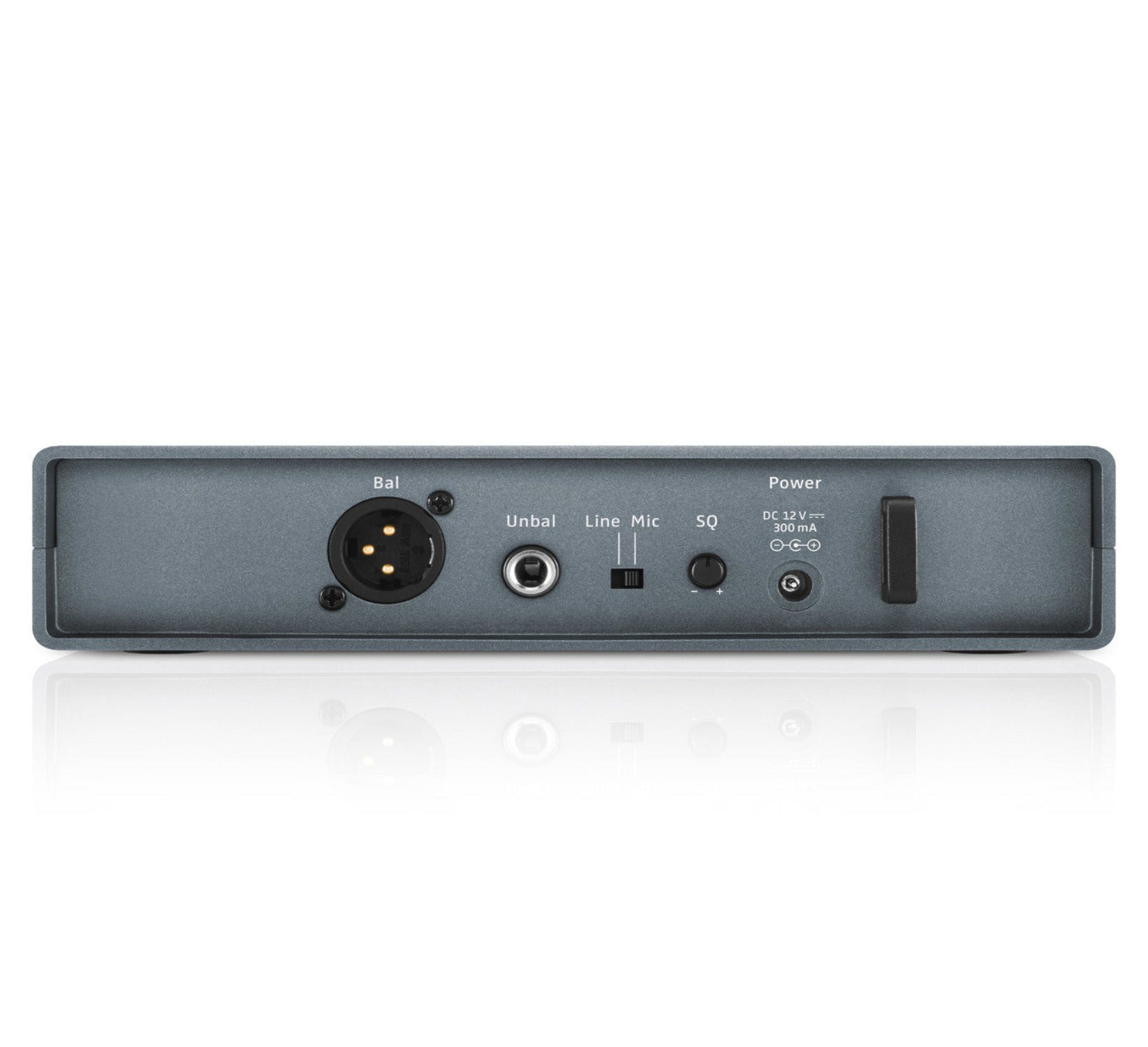

Output voltage'1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu

Housingrugged ABS housing

Diversity receptionantenna switching diversity via internal antennas

Frequency8 frequency banks, each with up to 10 factory-preset channels

Frequency rangeA: 548-572 MHz, GB: 606-630 MHzB: 614-638 MHz, C: 766-790 MHzD: 794-806 MHzE: 821-832 MHz, 863-865 MHzK: 925-937.5 MHz

Sensitivity< 3 μV at 52 dB(A)rms S/N

SPL for peak deviation130 dB

Squelchadjustable from 3 dBμV to 28 dBμV (combined with pilot tone)

Synchronization2.4 GHz, Low Power OQPSK (only active during synchronization)

Input sensitivity1.5 mV / Pa

Audio adjustment range45 dB, adjustable in 5-dB steps

Line / Mic level20 dB, switchable

Temperature Rangeoperation: 0°C to +40°C, storage: –20°C to +70°C

Receiver Principledouble superheterodyne
