SENNHEISER EW 100 ENG G4

Name: SENNHEISER EW 100 ENG G4
Brand: SOUND4U
Availability: InStock

Multi-purpose set for mobile journalism and documentary. Includes a plug-on transmitter and clip-on mic that offers excellent speech intelligibility.

More Information

A broadcast quality sound solution. Providing the highest flexibility for your video sound and field recording applications.
A robust wireless microphone system that offers excellent sound quality, simple mounting and ease of use.

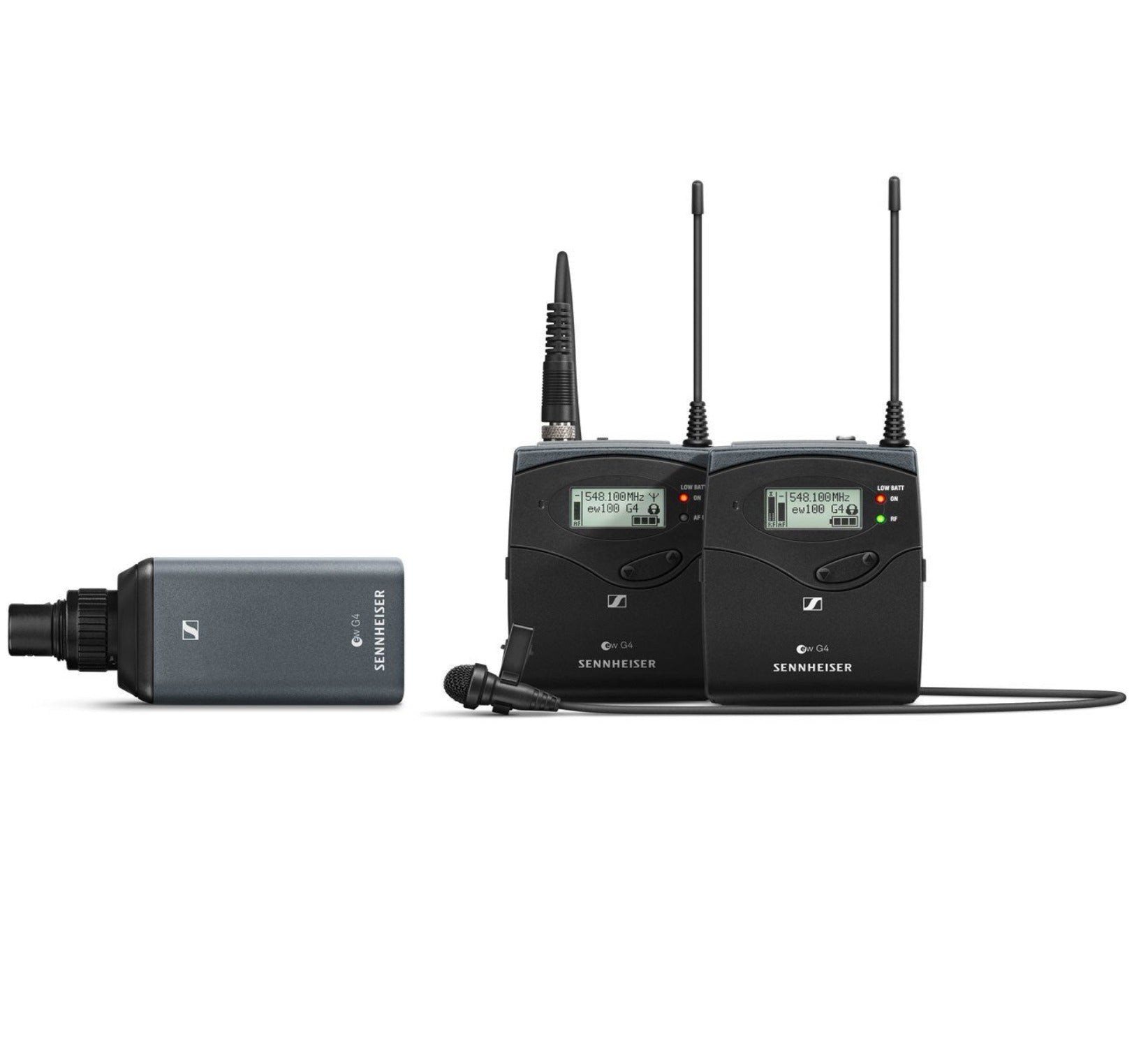

Multi-purpose set for mobile journalism and documentary. The powerful plug-on transmitter SKP 100 turns every wired dynamic microphone into a wireless transmitter while the easy to use clip-on microphone ME 2-II (omni-directional) offers excellent speech intelligibility during interviews.

Rugged all-in-one wireless system with high flexibility for broadcast quality sound
Excellent sound and construction quality
Easy to use and fast setup time
Powerful and reliable wireless transmission
Range: up to 100 meters / 330 feet
Up to 8 hours of operation time

Technical Specification

System
Wireless Technology	Analog UHF
Number of RF Channel Frequencies	1680
Included Transmitters	1 x Bodypack with Microphone
Diversity	Antenna Diversity
RF Frequency Band	A: 516 to 558 MHz
RF Bandwidth	42 MHz
Frequency Step Size	25 kHz
Max Operating Range	330' / 100.6 m (Line of Sight)
Max Transmitters per Band	12
Deviation	48 kHz (Peak)
Modulation	Wideband FM
Receiver
Receiver Type	Camera-Mount
Mounting Options	Shoe-Mount (with Included Hardware)
Antenna	1 x Flexible Whip, Fixed
Number of Audio Channels	1
Audio I/O	1 x 1/8" / 3.5 mm TRS Female Unbalanced Output (Lockable)
Gain Range	42 dB (6 dB Steps)
Audio Output Level	+12 dBu
Approximate RF Sensitivity	1.6 µV
Squelch	5 to 25 dBμV
Adjacent Channel Isolation	>65 dB
Power Requirements	Battery
Battery Type	2 x AA (Included) 1 x Sennheiser Accupack (Not Included)
Approx. Battery Life	8 Hours (Alkaline)
Display & Indicators	1 x Backlit LCD (Battery Status, Output Level, RF Level)
Housing	Metal
Operating Temperature	14 to 131°F / -10 to 55°C
Dimensions	2.5 x 3.2 x 0.9" / 64 x 82 x 24 mm
Weight	5.6 oz / 160 g (with Batteries)
Transmitter
Transmitter Type	Bodypack
RF Output Power	30 mW
Audio I/O	1 x 1/8" / 3.5 mm TRS Female Unbalanced Input (Lockable)
Muting	Mute Switch
Audio Input Level	3 V RMS (Max)
Gain Range	60 dB (3 dB Steps)
Frequency Response	80 Hz to 18 kHz (Mic) 25 Hz to 18 kHz (Line)
Sync Method	IR
Antenna	1 x Flexible Whip, Fixed (Beltpack)
Power Requirements	Battery
Battery Type	2 x AA (Included) 1 x Sennheiser Accupack (Not Included)
Approx. Battery Life	8 Hours (Alkaline)
Display & Indicators	1 x Backlit LCD (Audio Level, Battery Status, Signal Strength)
Housing	Metal
Dimensions	2.5 x 3.2 x 0.9" / 64 x 82 x 24 mm
Weight	5.6 oz / 160 g (with Batteries)
Microphone
Microphone Type	Lavalier
Sound Field	Mono
Capsule	Electret Condenser
Polar Pattern	Omnidirectional
Frequency Range	50 Hz to 18 kHz
Equivalent Noise Level	36 dB
Maximum SPL	130 dB SPL Peak
Sensitivity	20 mV/Pa
Outputs	1 x 1/8" / 3.5 mm TRS Male Unbalanced (Lockable)
Cable Length	5.25' / 1.6 m
Operating Voltage	7.5 V
Transmitter 2
Transmitter Type	Plug-On
RF Output Power	30 mW
Audio I/O	1 x XLR 3-Pin Female Unbalanced Input (Lockable)
Muting	Mute Switch
Audio Input Level	3 V RMS
Gain Range	48 dB (6 dB Steps)
Frequency Response	80 Hz to 18 kHz
Sync Method	IR
Antenna	1 x Internal
Power Requirements	Battery
Battery Type	2 x AA (Included) 1 x Sennheiser Accupack (Not Included)
Approx. Battery Life	8 Hours (Alkaline)
Display & Indicators	1 x Backlit LCD (Audio Level, Battery Status, Signal Strength)
Housing	Metal
Operating Temperature	14 to 131°F / -10 to 55°C
Dimensions	1.7 x 4.1 x 1.7" / 43 x 105 x 43 mm
Weight	6.9 oz / 195 g (with Batteries)
