PRESONUS AUDIOBOX 96 STUDIO

PRESONUS AUDIOBOX 96 STUDIO

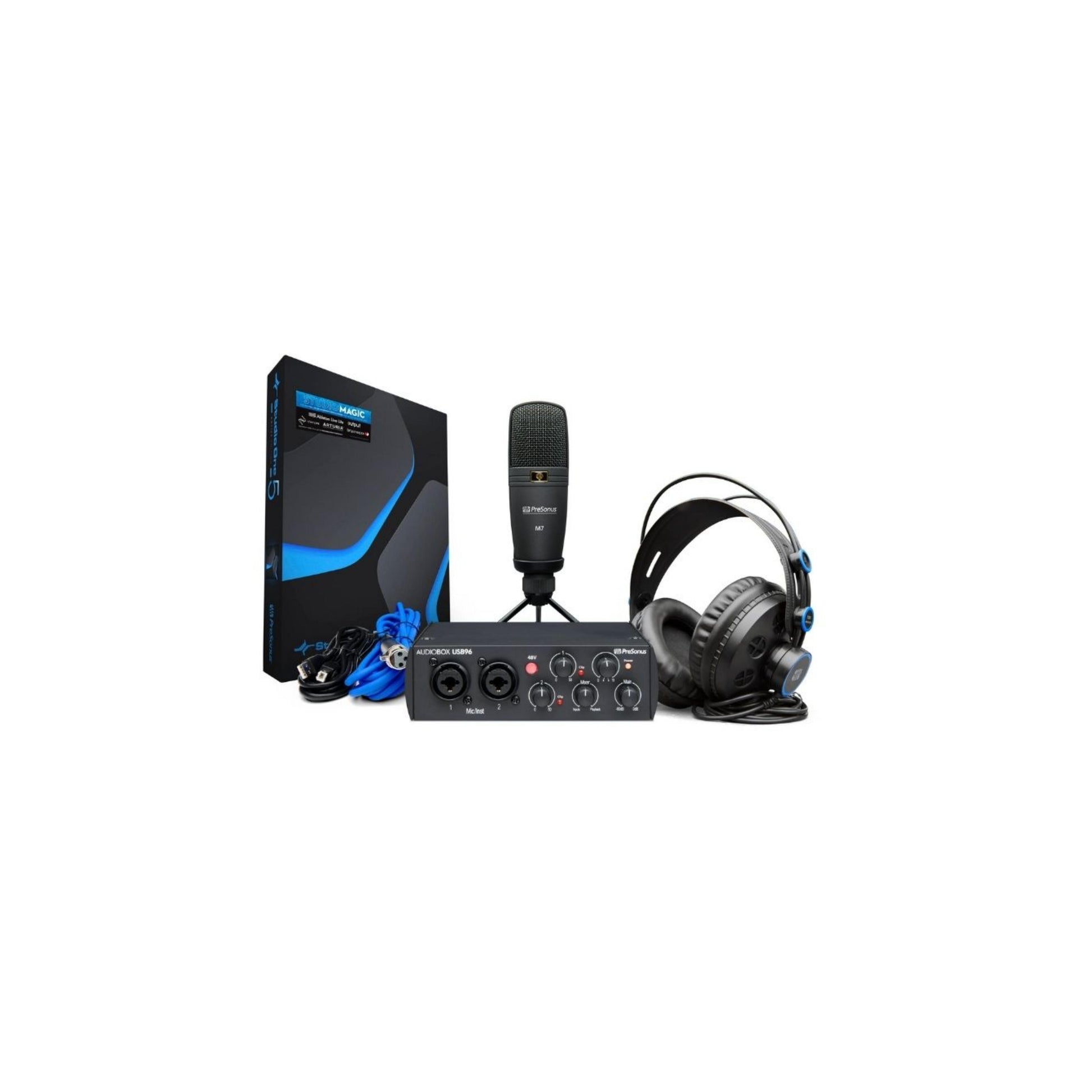

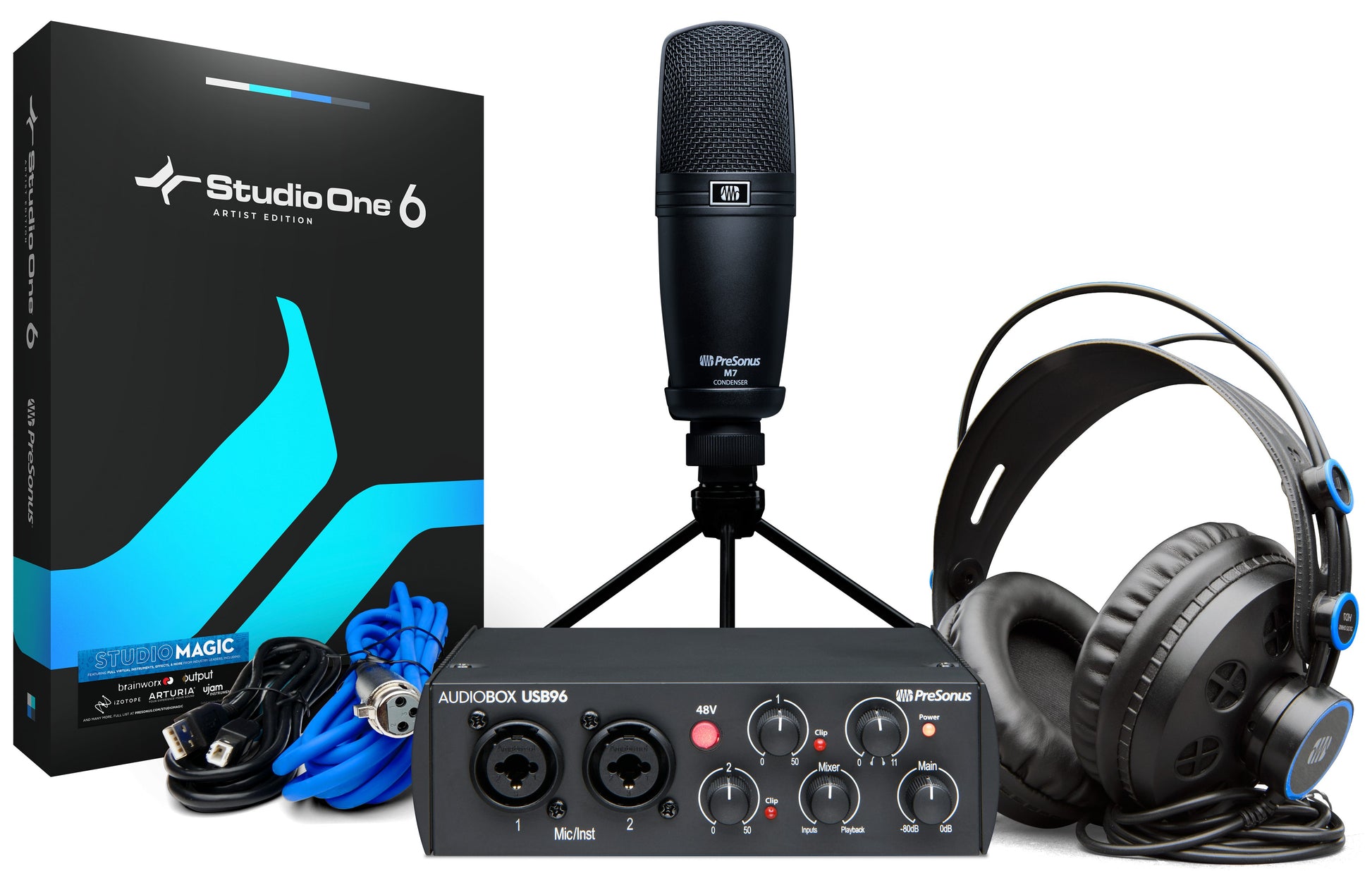

Start recording today with this complete, all-PreSonus package! Based on the AudioBox USB 96 audio/MIDI interface and award-winning Studio One recording and production software, PreSonus AudioBox 96 Studio is great for creating multitrack recordings, demos, live recordings, podcasts, field recordings for video and sound effects, and much more.

More Information

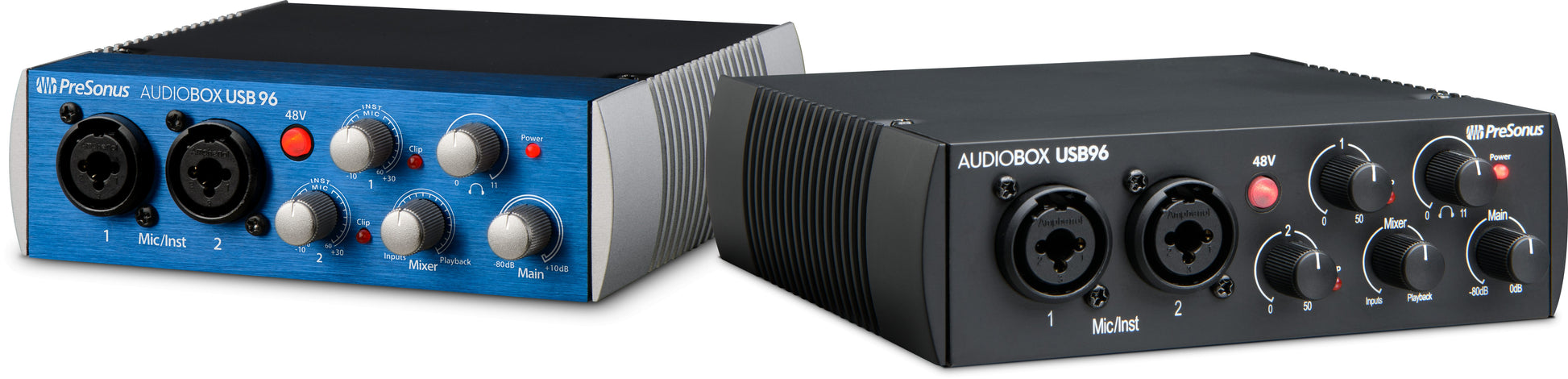

AudioBox USB 96

  • Bus-powered USB audio and MIDI interface
  • Perfect match with Studio One® Artist software for Mac® and Windows®
  • 24-bit resolution, 44.1, 48, 88.1, and 96 kHz sampling rate
  • 2 combo mic/instrument inputs with Class A mic preamplifiers
  • 48V phantom power (for included M7 microphone or other condenser microphones)
  • Zero-latency monitoring via internal analog mixer
  • Headphone jack with level control (for included HD7 headphones or other headphones)
  • 1/3U rack-mountable
  • Computer-to-interface connection cable included

Studio One Artist software

  • Elegant single-window work environment
  • Powerful drag-and-drop functionality
  • Unlimited audio tracks, MIDI tracks, virtual instruments, buses, and FX channels
  • Content browser with convenient sort options and preview player
  • Most intuitive MIDI-mapping system available
  • Real-time audio time-stretching and resampling
  • Multitrack comping and MIDI editing
  • Transient detection and editing and groove extraction
  • Automatic delay compensation
  • Advanced automation
  • Integrates tightly with Celemony Melodyne
  • Instantly configures to PreSonus® interfaces​
  • Compatible with ASIO-, Windows Audio-, and Core Audio-compliant interfaces
  • 26 Native Effects 32-bit effects and virtual instrument plug-ins
  • 10+ GB of third-party software, loops, and instruments
  • Mac- and Windows-compatible

Other Software

  • Studio Magic Suite included (Over $1000 USD of software!)
  • Ableton® Live Lite included

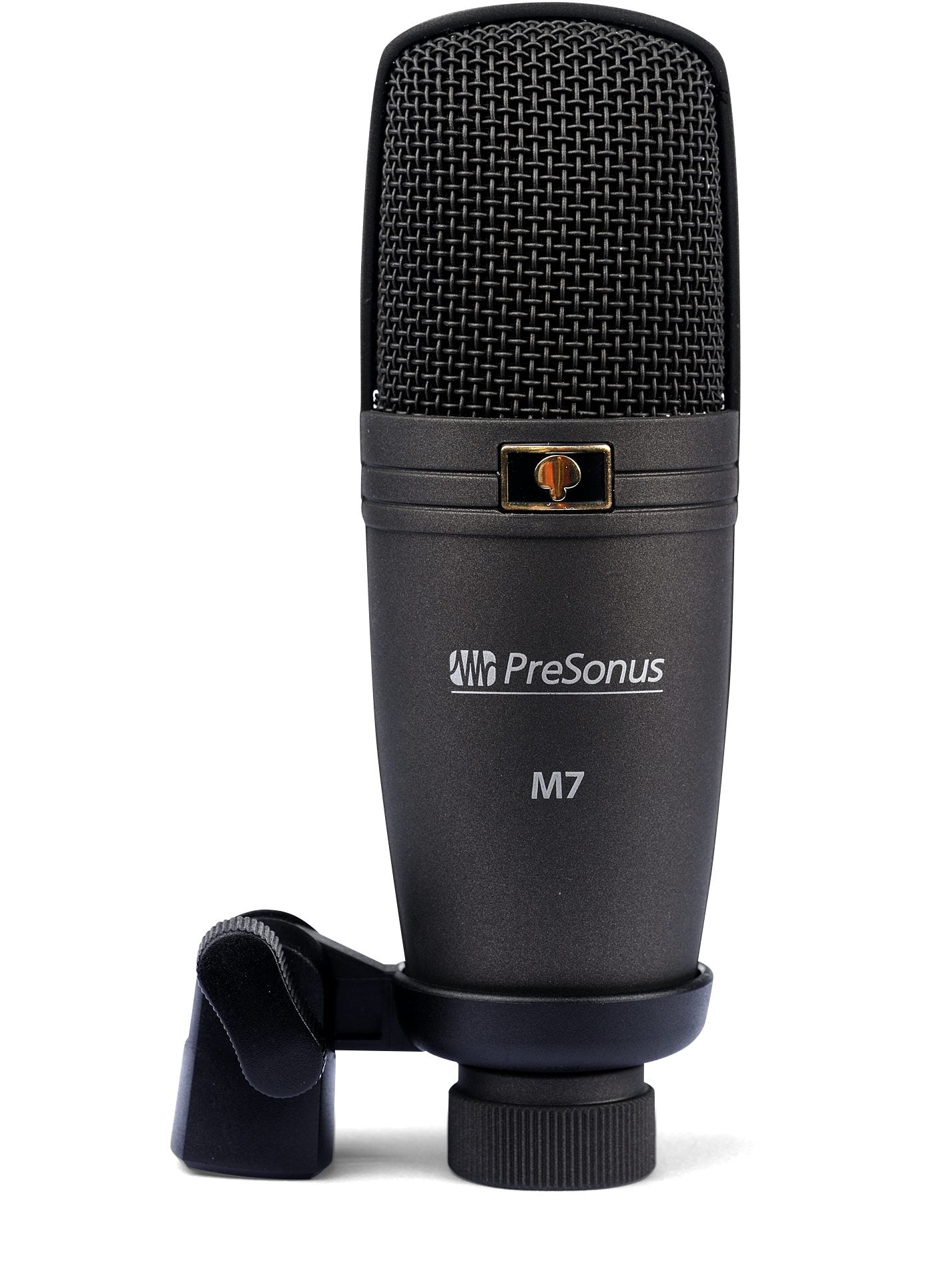

M7 Microphone

  • Large-diaphragm design
  • Captures far more detail than a dynamic mic
  • Mic stand adaptor
  • Phantom-powered via AudioBox USB
  • 9' / 3 m cable included
  • Cloth carry bag included

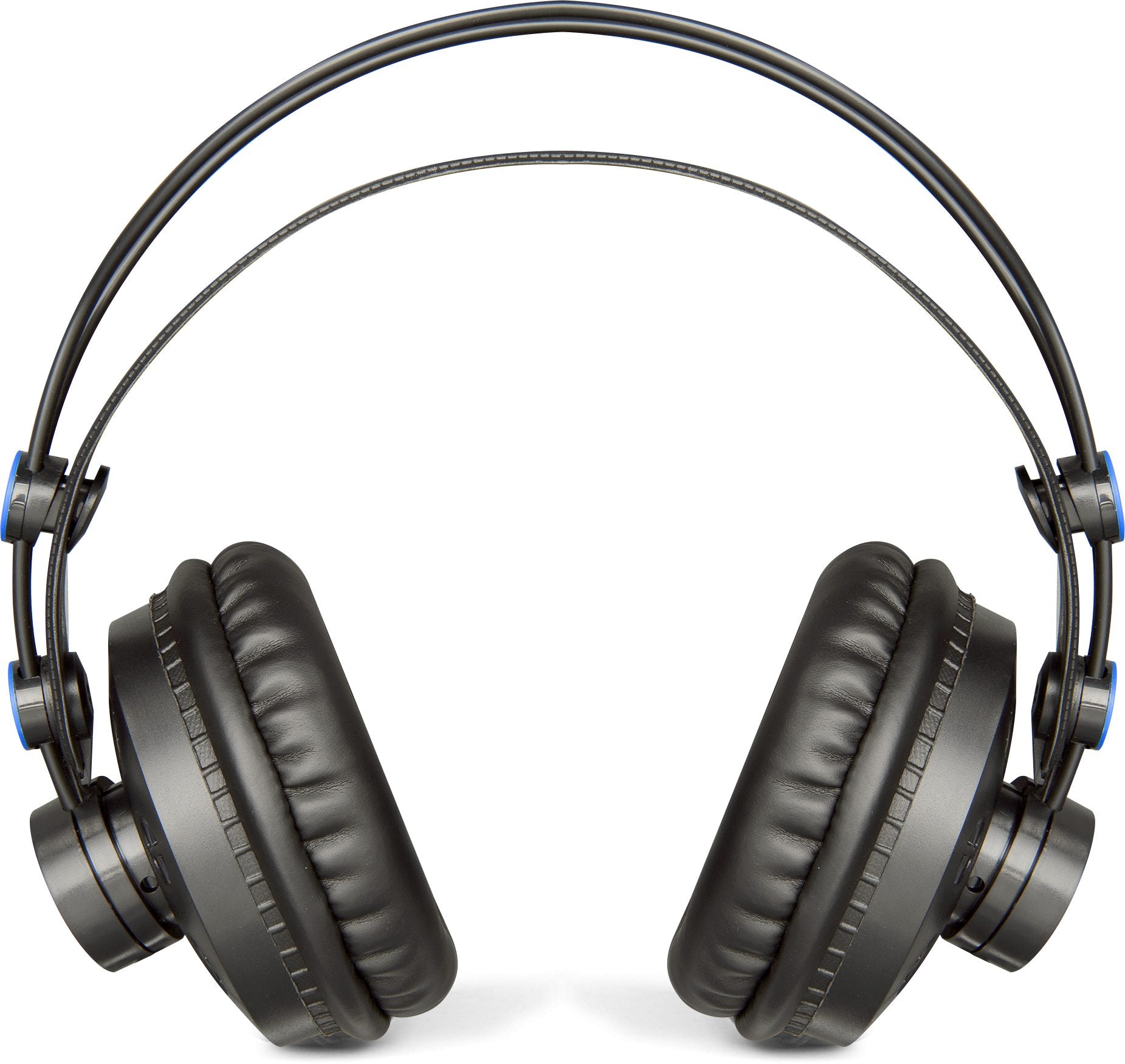

HD7 Headphones

  • High neodymium resolution drivers
  • Precision-tuned acoustic chamber
  • Extended bass response
  • Built tough to withstand abuse
  • Auto-fit head pads
  • Comfortable and long-lasting ear pads
  • 98" / 2.5m single-side cable
  • Optimized pressure
  • Lightweight

Technical Specification



AudioBox USB 96 Specifications
Microphone Preamp
Type XLR Female Balanced
Frequency Response (±3.0 dB) 20 Hz to 20 kHz
Input Impedance (Balanced) 1200Ω
THD+N (unwtd, 1 kHz @ +4 dBu Output, Unity Gain) < 0.008%
S/N Ratio (Unity Gain, Ref. = +4 dBu, 20 Hz to 22 kHz) > 95 dB
Common Mode Rejection Ratio (1 kHz, 55 dB Gain) > 45 dB
Gain Control Range (± 1 dB) 0 dB to 35 dB
Max Input Level (Unity Gain, 1 kHz @ 0.5% THD+N) -3 dBu
Phantom Power (±2 VDC) +48 VDC
Instrument Input
Type ¼"
TRS Female Unbalanced Input Impedance 0.5 MΩ
Line Outputs
Type ¼"
Balanced Output Impedance 51Ω
Headphone Output
Type ¼" TRS Active Stereo
Maximum Output 60 mW/Ch @ 60Ω Load
Frequency Response (±1.0 dB) 20 Hz - 30 kHz
MIDI I/O
Type Dual 5-pin Female DIN
Digital Audio
ADC Dynamic Range (A-wtd, 48 kHz Sample Rate) 105 dB
DAC Dynamic Range (A-wtd, 48 kHz Sample Rate) 105 dB
Bit Depth 24
Reference Level for 0 dBFS +4 dBu
Supported Sample Rates (kHz) 44.1, 48, 88.2, 96
Power USB 2.0 Bus-powered
Physical
Dimensions 1/3U (steel chassis)
Height 5.5” (139.7 mm)
Depth 1.75" (44.45 mm)
Width 5.5” (139.7 mm)
Weight 1.4 lbs (0.64 kg)
M7 Microphone Specifications
General
Type Large-diaphragm condenser microphone
Element Electret
Polar Pattern Cardioid
Frequency Response 40 Hz - 18 kHz
Sensitivity -39 dBV/pa (12.2 mV/pa)
Rated Impedance 200Ω
Equivalent Input Noise (EIN) 20 dB
Maximum SPL 136 dB SPL
Phantom Power Required +12 to +52 VDC, 3 mA
S/N Ratio 74 dB
Dynamic Range 11 dB
Current Consumption 3.5 mA
Physical
Diameter 2.13" (54 mm), maximum
Length 6.69" (170 mm)
Weight 11.3 oz. (320g)
HD7 Headphone Specifications
General
Acoustic Design Dynamic, semi-open
Driver 50 mm, neodymium
Frequency Response 10 Hz to 30 kHz
Sensitivity 98 dB SPL (1 mW)
Maximum Power 300 mW
Rated Impedance 56Ω
Earpad Leather
Physical
Weight, without Cable 7.8 oz (222g)
Cable 8' 2" (2.5m) straight, single-sided
Plug Adapter 1/8" to 1/4" (3.5 to 6.3 mm), screw-on, gold-plated, stereo mini-plug
