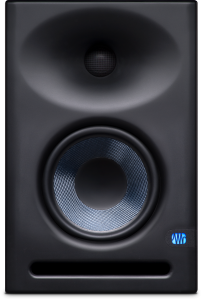

PRESONUS ERIS E7 XT

PRESONUS ERIS E7 XT

The PreSonus Eris E7 XT offers deep lows, smooth highs, and impressive imaging thanks to first-rate drivers that work in tandem with an innovative EBM waveguide and state-of-the-art front-ported enclosure. Tailor this studio monitor to your room using a generous array of acoustic tuning controls, and easily connect to the rest of your gear with a full complement of balanced and unbalanced inputs. Benefit from 104dB of maximum continuous output via 130-watt, Class AB bi-amplification. You also get solid protection against RF interference, extreme output current, excessive heat, and more. The PreSonus Eris E7 XT — a top-notch studio monitor that’s friendly to your wallet.

More Information

Components and construction

  • 6.5-inch woven composite low-frequency transducer
  • 1.25-inch (31.75 mm), ultra-low-mass, silk-dome, high-frequency transducer
  • 100˚(H) x 60˚(V) EBM waveguide for wide sweet spot
  • Front-firing acoustic port for superior bass-frequency reproduction
  • Optimized, resonance-suppressing internal bracing
  • 104 dB maximum continuous SPL

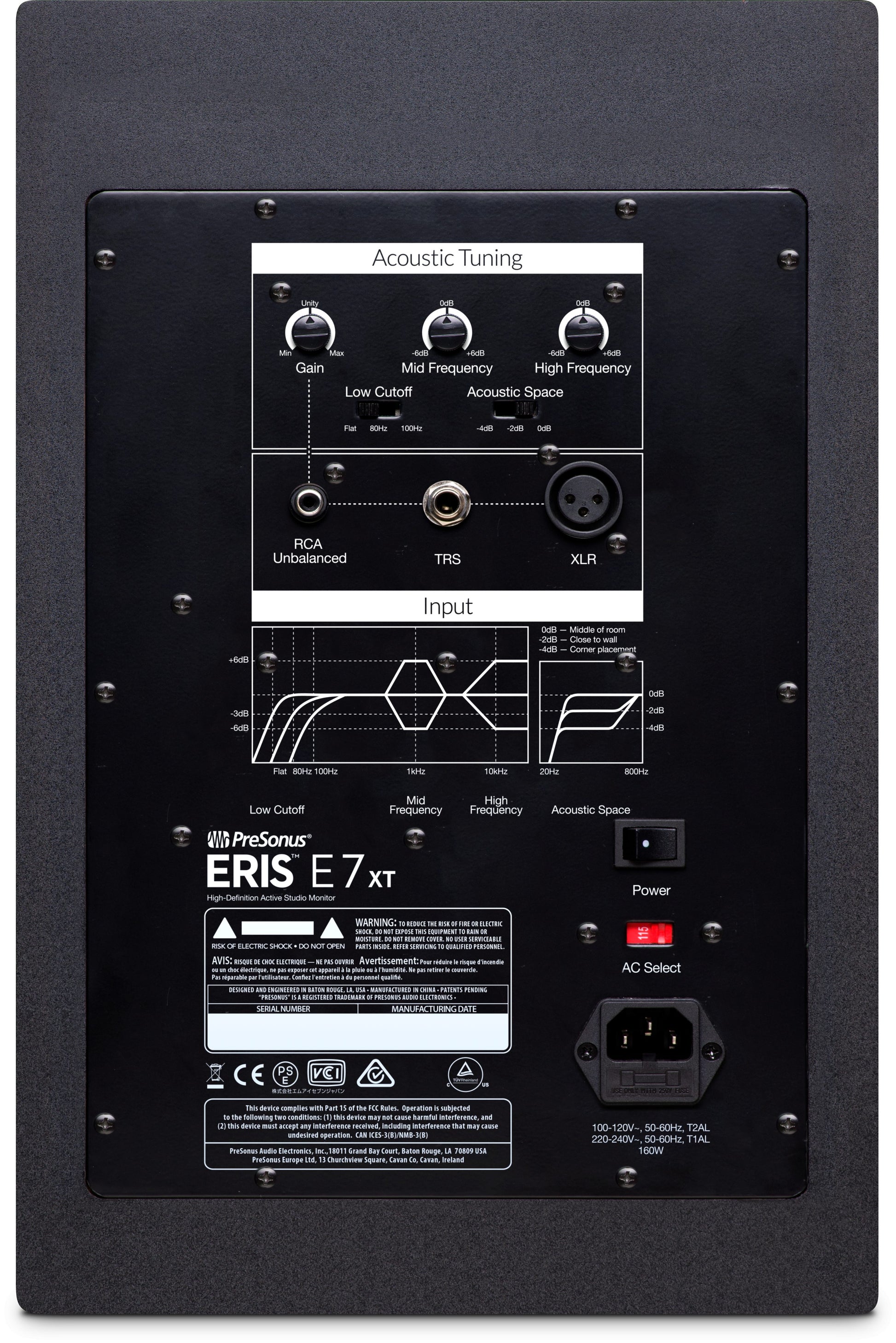

User controls

  • HF Adjust (±6 dB, continuously variable)
  • Midrange Adjust (±6 dB, continuously variable)
  • Acoustic Space settings (flat, -2, -4 dB) for accurate mixing contour
  • Highpass filter (Off, 80 Hz, 100 Hz)

Power and safety

  • 140 watt, Class AB biamplification
  • RF interference, output current limiting, over-temperature, transient, and subsonic protection
  • Amplifier “soft start” feature eliminates popping on power-up
  • Internal power supply with IEC connector
  • Power switch with on/off LED

Inputs and outputs

  • Balanced XLR/¼-inch
  • Unbalanced RCA inputs (E5/E8)

Software

  • Studio One® Prime and Studio Magic Software Suite ($1,000 value!)

Technical Specification

  • Powered:Yes
  • Power Configuration:Bi-amped
  • Quantity:Single
  • LF Driver Size:6.5" Woofer
  • LF Driver Type:Woven Composite
  • HF Driver Size:1.25" Tweeter
  • HF Driver Type:Silk Dome
  • LF Driver Power Amp:70W
  • HF Driver Power Amp:60W
  • Total Power:130W Class AB
  • Frequency Response:42Hz-22kHz
  • Crossover Frequency:2.5kHz
  • Maximum Peak SPL:104dB SPL @ 1m
  • Input Types:1 x XLR, 1 x RCA, 1 x 1/4"
  • Features:Low cut (80Hz, 100Hz), Over temperature protection, RF interference protection, Mid and High frequency boost/cut
  • Enclosure Type:Front Ported
  • Enclosure Material:Vinyl-laminated MDF
  • Height:14.4"
  • Width:9.45"
  • Depth:9.5"
  • Weight:18.5 lbs.
