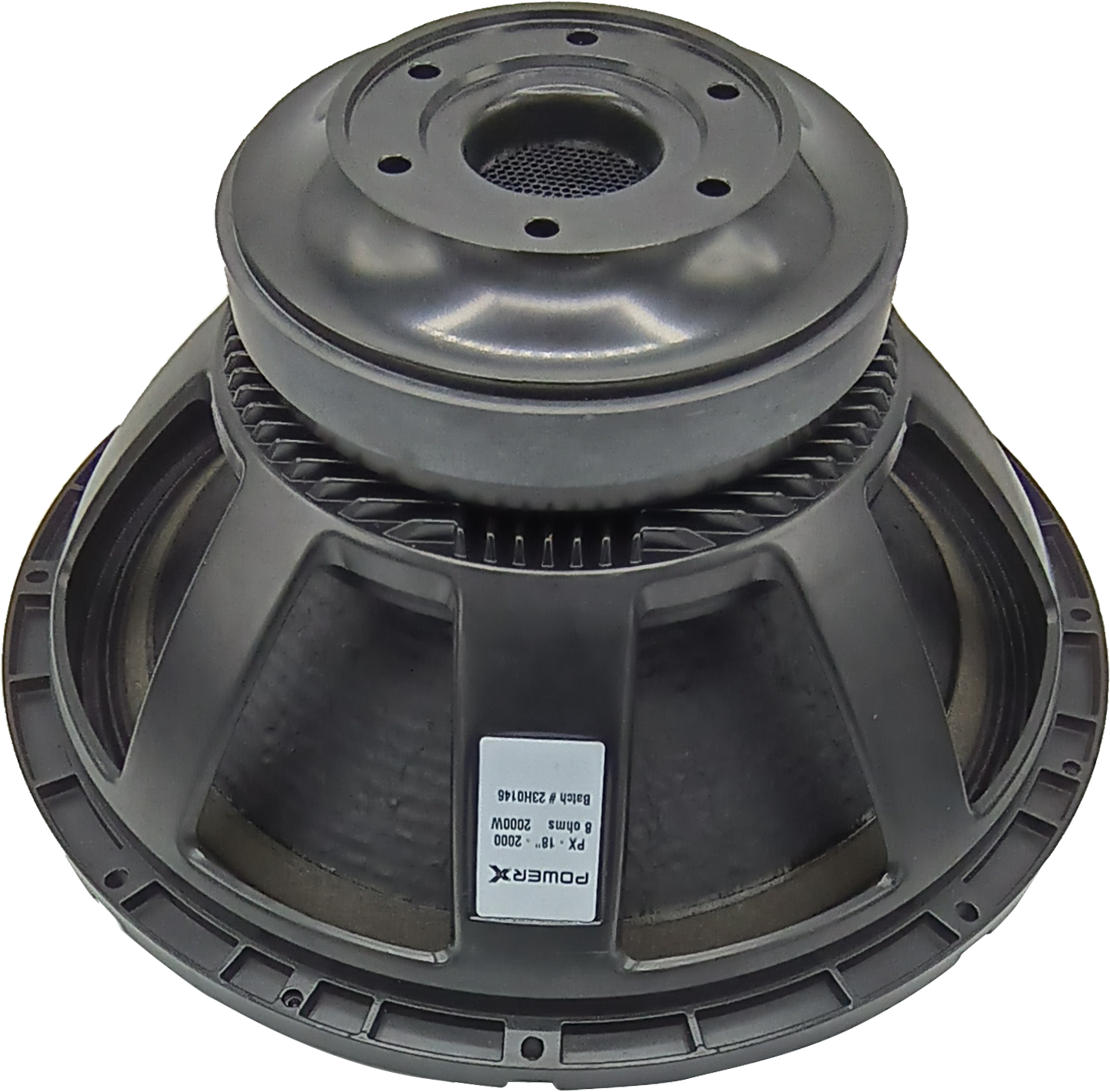

POWERX PRO 18 D 2000

Name: POWERX PRO 18 D 2000
Brand: DEV ELECTRONICS
Availability: InStock

Experience powerful sound reproduction with the 18 D 2000, a high-performance 18-inch transducer. Designed for professional audio applications, it delivers clear and precise sound, perfect for live performances and installations.

More Information

- 2000 AES Watt
- 125mm (5-inch voice coil)
- 40 Hz to 1 KHz Frequency response
- Ferrite Magnet structure
- Air Dried Paper Cone

Technical Specification

- Nominal Diameter: 18 inches
- Power Handling Capacity: 2000 W(AES)
- Max Power: 4000 watts
- Nominal Impedance: 8 ohms
- Sensitivity (1W/1M): 95 dB
- Frequency Range: 40-1K Hz
- Voice Coil Diameter: 114.5/4.5 mm/in

Thiele-Small Parameters:
- Fs: 44.1 Hz
- Re: 5.0 Ohms
- Qms: 31.86
- Qes: 0.56
- Qts: 0.55
- Vas: 123.7 L
- Mms: 221.67 gr
- Cms: 0.058 mm/N
- BL: 23.87 Tm
- Le: 1.35 mH
- Xmax: 5.5 mm
- n0: %
- Sd: cm^2

Dimensions:
- Overall Diameter: 464 mm
- Bolt Circle Diameter: 8 mm
- Baffle Cut-out Diameter: 420 mm
- Overall Depth: 213 mm
- Net Weight: 13.56 Kg
