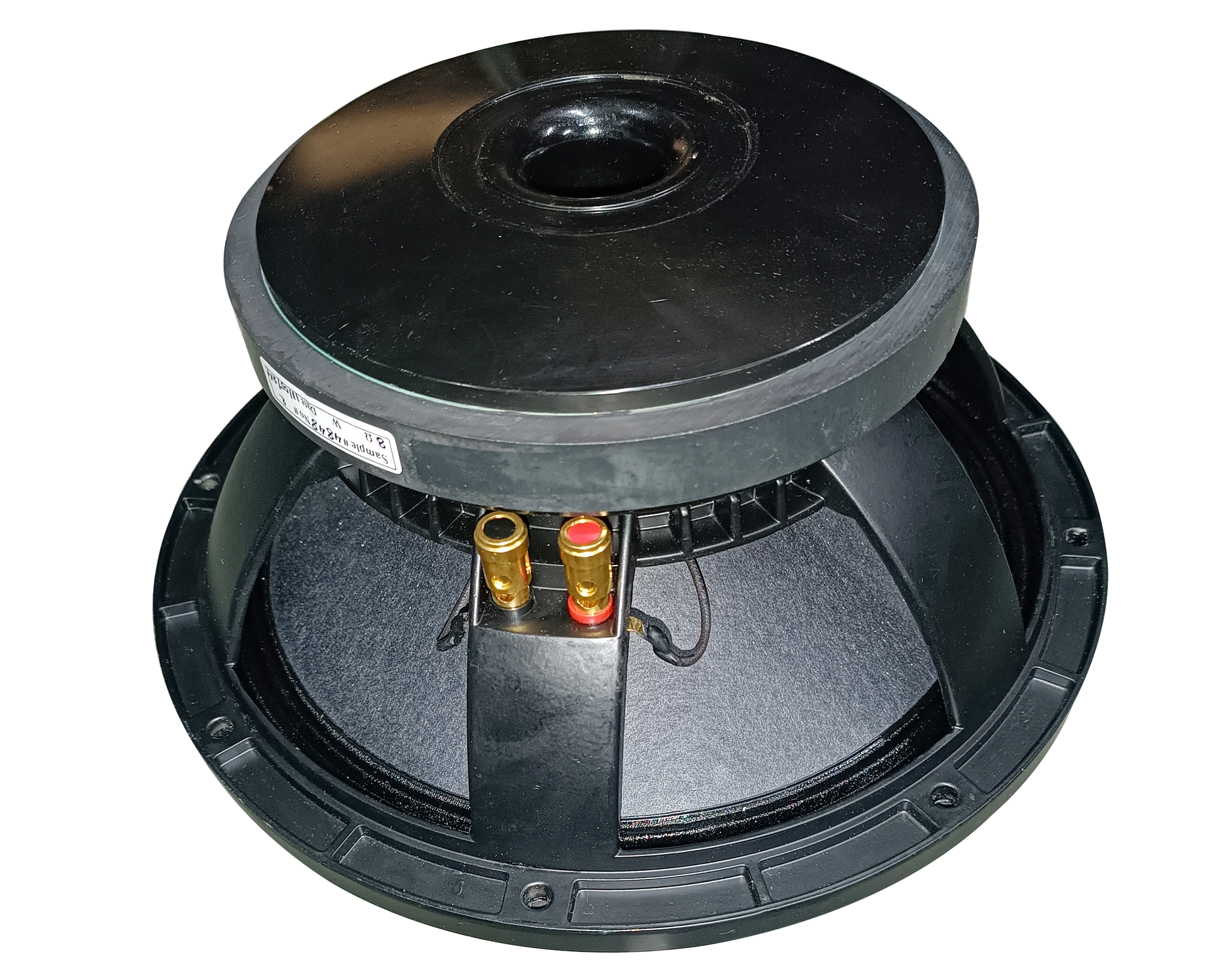

POWERX PRO 12 D 600

POWERX PRO 12 D 600

The 12 D 600 is another powerful speaker from the Dynam10 Series offering outstanding performance and durability. This speaker is perfect for a wide range of applications from live events to fixed installations. With its compact size and impressive features the 12 D 600 is an excellent choice for anyone seeking high-quality sound.

More Information

600 AES Watt
- 75 mm (3 inch voice coil)
- 47 Hz to 3 KHz Frequency response
- Ferrite magnet structure
- Air Dried Paper Cone

Technical Specification

Nominal Diameter: 12 inches
- Power Handling Capacity: 600 AES watts
- Max Power: 1200 watts
- Nominal Impedance: 8 ohms
- Sensitivity: 98 dB
- Frequency Range: 47-3KHz
- Voice Coil Diameter: 75 mm (3 inches)

Thiele-Small Parameters
Fs - 47.05 Hz
Re - 5.38 Ohms
Qms - 18.11
Qes - 0.312
Qts - 0.307
Vas - 75.61 liters
Mms - 58.08 grams
Cms - 0.196 mm/N
BL - 17.2 Tm
Le - 1.34 mH
Xmax - 7 mm
n0 - 1.35%
Sd - 0.088 cm^2

Dimensions
Overall Diameter - 315 mm
Bolt Circle Diameter - 282 mm
Baffle Cut-out Diameter - 282 mm
Overall Depth - 145 mm
Net Weight - 6.95 kg
