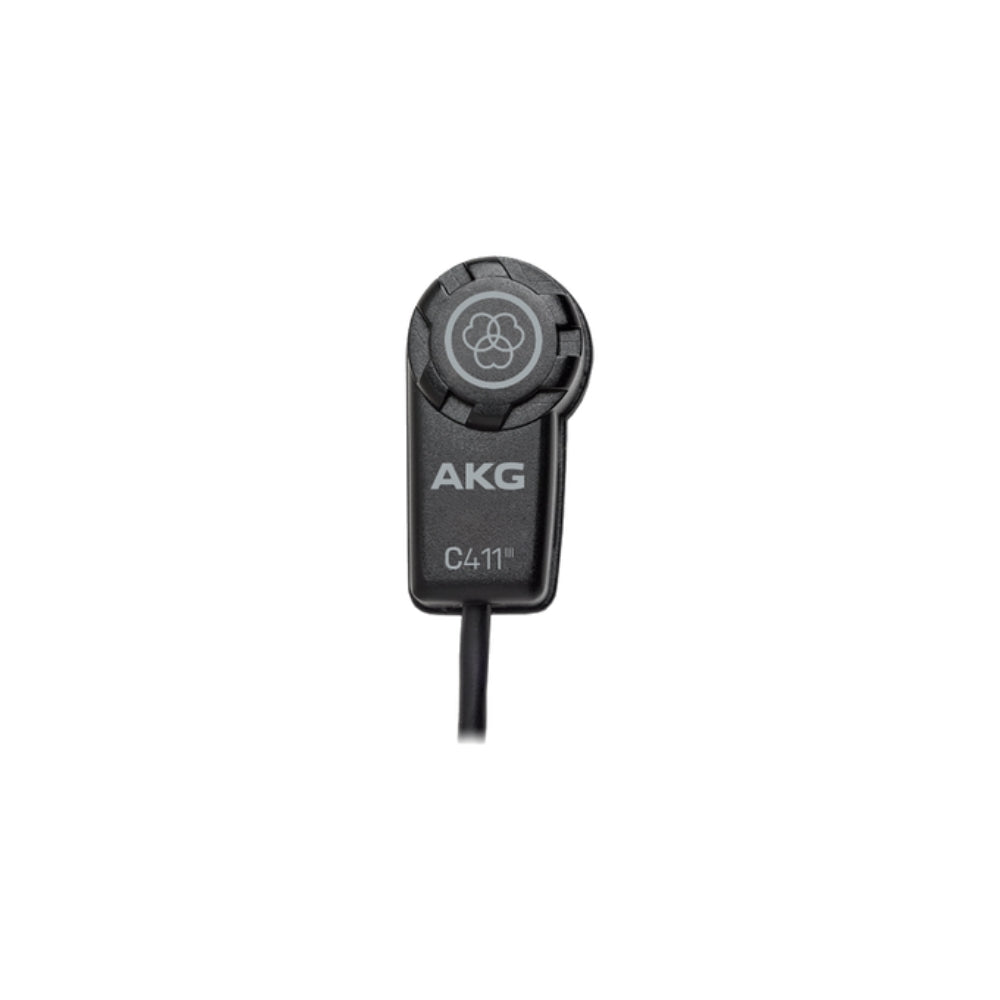

AKG C411 PP

The C411 is a miniature vibration pickup for acoustic guitar, mandolin, violin and most other string instruments. Its integrated condenser capsule will reproduce the sound of the instrument clearly and without coloration. The C411 ultralight pickup (18g/0.6oz) can be easily attached on or near the bridge with the included nonmarking, solvent-free adhesive pad without changing the balance of the instrument. The C411 is available in two versions. The C411 PP features a MPAV standard XLR connector while the C411 L provides a professional three-pin mini XLR connector that fits the body-pack transmitters of all AKG wireless microphone systems.

More Information

Miniature condenser vibration pickup for acoustic instruments
Ideal for guitar, violin, mandolin, ukulele, cello & other string instruments
Captures natural and uncolored sound reproduction
Figure-8 polar pattern for accurate vibration pickup
Lightweight design does not affect instrument balance
Easy mounting with non-marking adhesive compound
Sealed condenser transducer for low handling noise
Excellent feedback rejection during live performances

Technical Specification

General Specifications

Type:

Pre-polarized condenser transducer

Polar Pattern:

Figure of eight

Audio frequency bandwidth:

10 - 18000 Hz

Sensitivity:

2 mV/Pa

Electrical impedance:

200 Ohms

Recommended load impedance:

1000 Ohms

Max. SPL for 1%/3% THD:

96 dB / 103 dB

Current consumption:

approx. 2.2 mA

Dimensions

Length:

9.7 mm

Width:

14.2 mm

Height:

26.7 mm

Net Weight:

225 g (8 oz.)

Cable length:

3 m (10 ft.)
