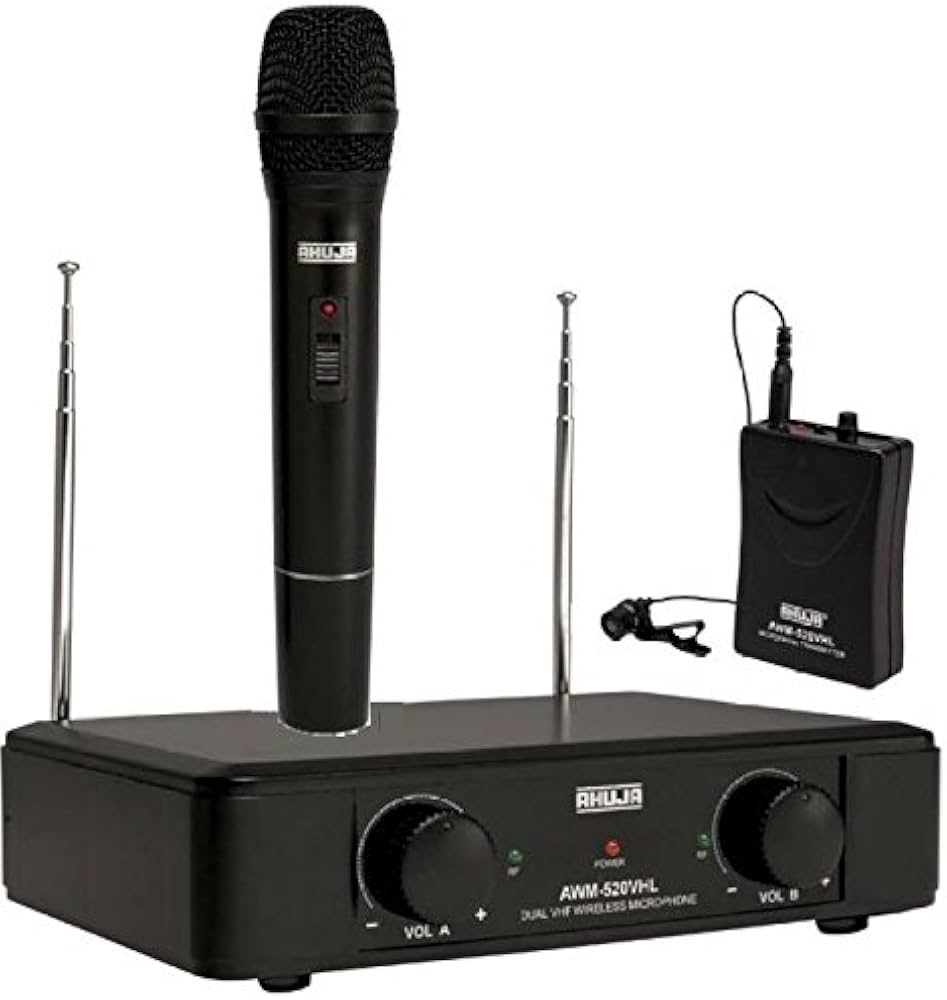

Ahuja Professional VHF Wireless PA Microphones Model AWM-520VHL
More Information
More Information
♦ Ahuja AWM-520VHL Professional Wireless PA Microphones
♦ Wireless Type Microphone
♦ Elegant and affordable dual channel VHF high band wirless microphones available in different frequencies.
♦ Consists of a handheld dynamic unidirectional transmitter and a bodypack transmitter.
♦ Stylish table-top receiver with noise squelch circuitry.
♦ ALC circuit handles high sound pressure levels without distortion.
♦ Separate output volume control for both channels on the front panel of the receiver.
♦ Power ON/OFF switch and 6.3mm(1/4") phone jack for audio output on the rear panel of the receiver.
♦ Each transmitter operates on 1 X 9v battery.
♦ Receiver operates on 12V DC through an AC adaptor, supplied along with the transmitter.
♦ Ideal for: PA Application.... Stage & Auditoriums ... Stadia... Seminar Halls... Places Of Worship.... Recreation Centres...
♦ Wireless Type Microphone
♦ Elegant and affordable dual channel VHF high band wirless microphones available in different frequencies.
♦ Consists of a handheld dynamic unidirectional transmitter and a bodypack transmitter.
♦ Stylish table-top receiver with noise squelch circuitry.
♦ ALC circuit handles high sound pressure levels without distortion.
♦ Separate output volume control for both channels on the front panel of the receiver.
♦ Power ON/OFF switch and 6.3mm(1/4") phone jack for audio output on the rear panel of the receiver.
♦ Each transmitter operates on 1 X 9v battery.
♦ Receiver operates on 12V DC through an AC adaptor, supplied along with the transmitter.
♦ Ideal for: PA Application.... Stage & Auditoriums ... Stadia... Seminar Halls... Places Of Worship.... Recreation Centres...
Technical Specification
Technical Specification
| Brand | Ahuja |
| Model | AWM-520VHL |
| Type | Wireless Microphones |
| HANDHELD TX> | |
|---|---|
| RF Output Power | 10mW(Max.) |
| Modulation Mode | FM |
| Microphone Element | Dynamic, cardioid |
| Frequency Response | 40-15,000Hz |
| Current Consumption | <30mA |
| Controls | On /Mute/Off Switch |
| Indication | Red LED for Mic ON |
| Dimensions | 48 X L240mm |
| Weight | 250g (w/o battery) |
| TIE-CLIP TX. | |
| RF Output Power | 10mW(Max.) |
| Modulation Mode | FM |
| Microphone Element | Condenser, cardioid |
| Frequency Response | 40-12,000Hz |
| Current Consumption | <30mA |
| Controls | On /Mute/Off Switch, Volume Control |
| Indication | Green LED indicating power of cells |
| Dimensions | W63 X H33 X D100mm |
| Weight | 90g (w/o battery) |
| RECEIVER | |
| Frequency Stability | 0.005% |
| Audio Output | 0-50mV |
| S/N Ratio | >90dB |
| Distortion | <0.5% |
| Antenna Type | Telescopic |
| Power Requirement | 220V-240V AC 50Hz for AC adaptor (supplied along with) |
| Controls | Power Switch, Output Volume Control |
| Indication | Red Led for Power ON, Green LEDs for RF indication |
| Dimension | W200 X H55 X D155 mm |
| Weight | 350g |
