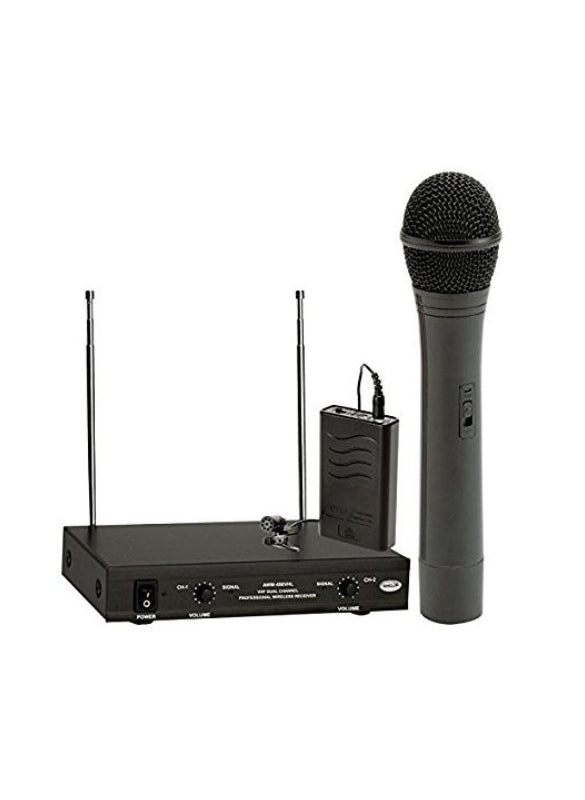

Ahuja AWM-490VHL DUAL PA Wireless Microphones

More Information

Ahuja AWM-490VHL DUAL PA Wireless Microphones
- Compact, lightweight, Single Channel VHF Wireless Microphone System.
- ALC circuit handles high sound pressure levels without distortion.Operates at Quartz Crystal Locked VHF High Band frequency and available in different frequencies.
- Internal Antenna in the Transmitter and a telescopic Antenna in the Receiver for clear and distortion free reception.
- Receiver operates on 9V DC through an AC Adaptor supplied along with the system. The transmitter operates with a 9V Dry Battery.
- Transmitter with 3-position slide switch for 'Audio On'-'Audio Mute'- 'Off' positions.
- Audio output from receiver available at OUT jack socket.

Technical Specification

Model No :AWM-490VHL

RF Output Power :15mw (max.)

Power Requirement :9V Battery

Type of Product : Microphones

Mic Type :Wirless

Modulation Mode: FM (F3E)

Controls:Mic On/Mute/Off Switch

Power Requirement:220V-240V AC 50Hz for AC adaptor (supplied alongwith)

Frequency Response :50-15,000Hz

Indications : Red LED for Mic ON

Audio Output: 0-55mV/1kΩ

Microphone Element : Dynamic, Cardioid

Current Consumption : < 60mA

Dimensions : Ø52 × L242 mm

Weight: 200g (w/o battery)

Frequency Stability: ± 0.005% Quartz Crystal Controlled

S/N Ratio: >100dB

Distortion: <0.5%

Antenna Type: Telescopic
