AHUJA AWM 400 UH

Name: AHUJA AWM 400 UH
Brand: DEV ELECTRONICS
Availability: OutOfStock

Rs. 0.00

Sale Sold out

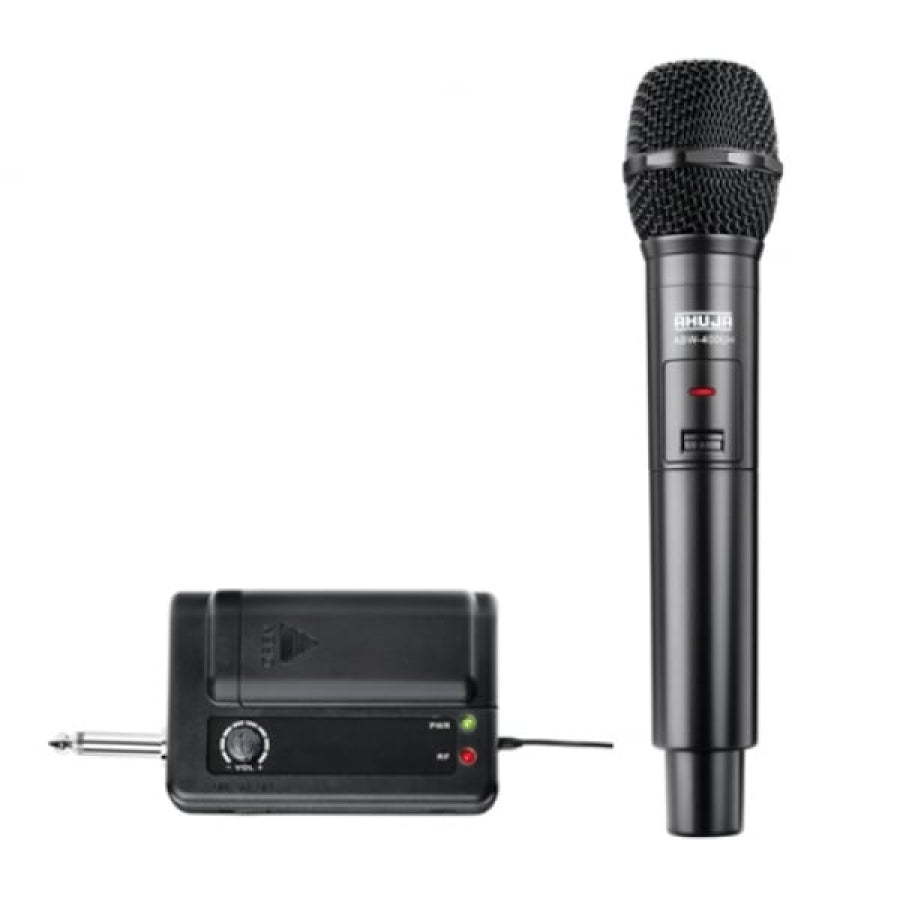

Ahuja ABW 400UH UHF Wireless Microphone

More Information

Attractive and versatile high performance single channel UHF wireless microphone available in different frequencies.
Bodypack receiver has built-in 6.3mm (¼”) jack plug which provides unbalanced audio output.
Volume control knob with RF & POWER LED on the front side of the receiver.
One handheld dynamic transmitter, operating on 2 × 1.5V AA pencil cells.
Receiver has a three position slide switch for ON/STANDBY/OFF position and operates on 2 × 1.5V AA pencil cells.
Ideal for: PA Applications… Stage & Auditoriums… Stadia… Seminar Halls… Places of Worship… Recreation Centres…

TRANSMITTER	.
RF Output Power	10mW (Max.)
Frequency Stability	±0.005%
Modulation Mode	FM
Microphone Element	Dynamic, Cardioid
Frequency Response	50-15,000Hz
Power Requirement	3V (2 × 1.5V AA Pencil Cells)
Current Consumption	≤ 150mA
Controls	Microphone ON/OFF switch
Indication	LED for microphone ON
Dimensions	Ø55 (L 250) mm
Weight	220g (w/o battery)
RECEIVER	.
Audio Output	Unbal. -10dBu
S/N Ratio	100dB
Distortion	≤ 1%
Frequency Response	50-15,000Hz
Power Requirement	3V (2 × 1.5V AA Pencil Cells)
Current Consumption	≤ 150mA
Controls	ON/OFF/SB Switch, Volume Control
Indications	LEDs for RF & Audio Signal
Dimensions	W62 × H128 × D26 mm
Weight	65g (w/o battery)
