SHURE AD1

SHURE AD1

AD1 delivers impeccable audio quality and RF performance with wide-tuning, High Density mode, and encryption. Features durable metal construction, optional rechargeable power with dockable charging, and TA4 and LEMO3 connector options.

More Information

  • Two transmission modes: Standard for optimal coverage and new High Density for maximum system channel count and robust coverage
  • Encryption-enabled, secure transmission
  • Two connector options: TA4 and LEMO3
  • Detachable ¼-wave antenna
  • AA or SB900C lithium-ion rechargeable batteries for convenient power options
  • External contacts for docked charging

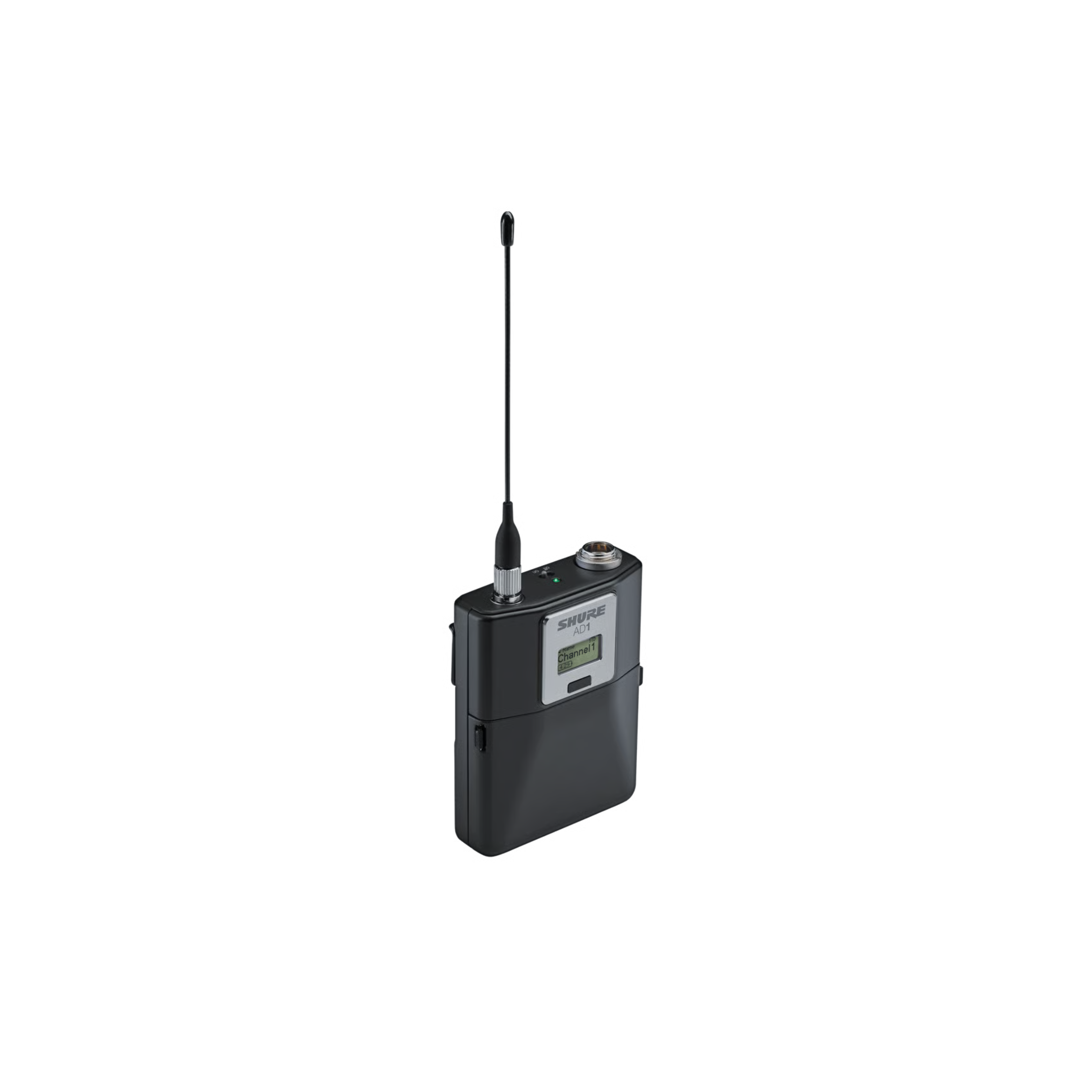

The AD1 is a wireless bodypack transmitter compatible with Axient® Digital Wireless Systems.

With breakthrough RF performance and wide tuning up to 184 MHz, the AD1 puts professional-quality wireless digital audio within reach.

When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.

Technical Specification

Performance

  • 20 Hz to 20 kHz range with flat frequency response
  • Automatic input staging optimizes gain setting
  • AES 256-bit encryption-enabled for secure transmission
  • >120 dB dynamic range
  • 100 meter (300 feet) line-of-sight operating range
  • Selectable modulation modes optimize performance for spectral efficiencyStandard – optimal coverage, low latencyHigh density – dramatic increase in max system channel count
  • Built-in tone generator and RF markers to facilitate walk-testing
  • Switchable Power Levels = 2/10/35 mW (region dependent)
  • Frequency Diversity selection using two bodypacks

Design

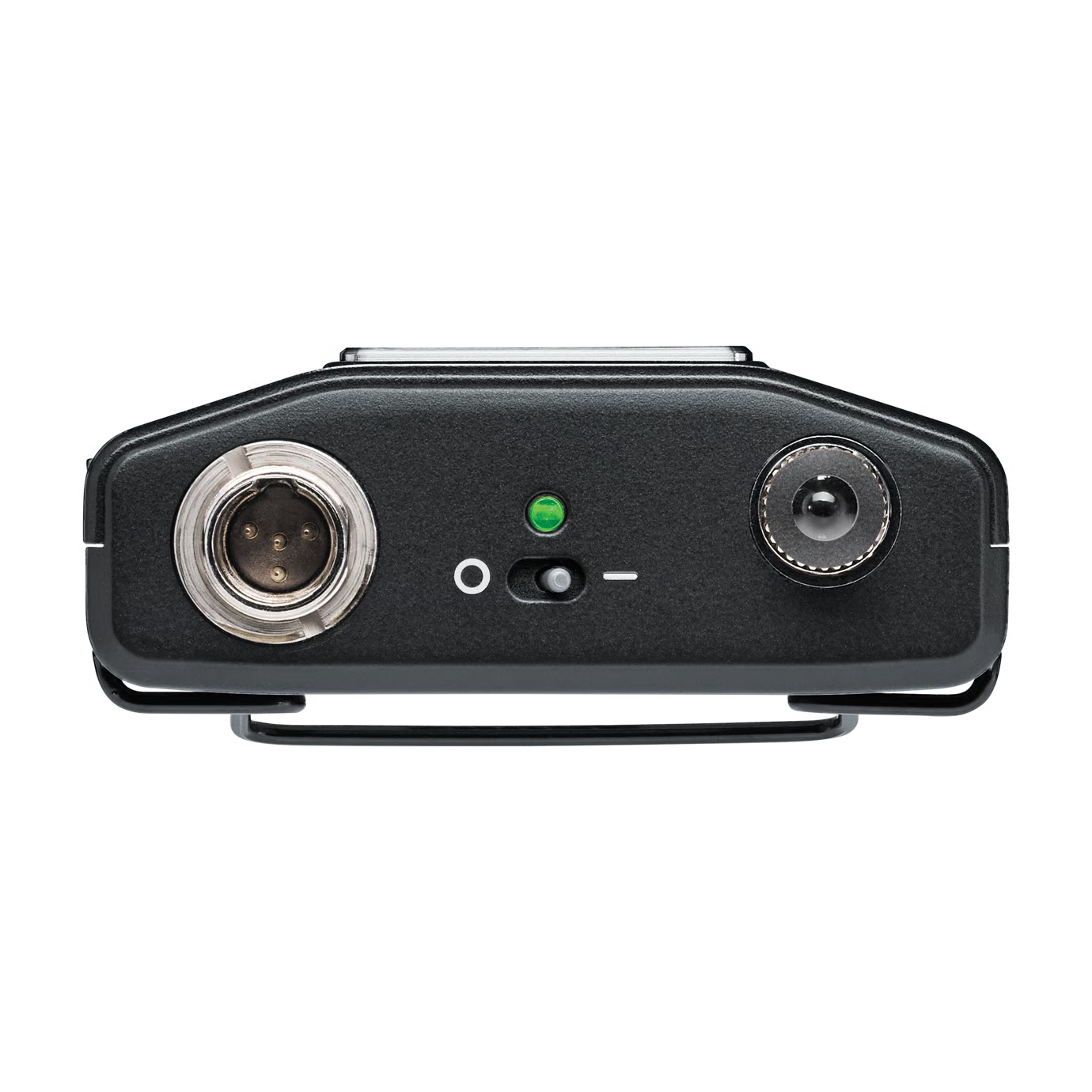

  • TA4 or LEMO3 audio connector option
  • Backlit LCD with easy to navigate menu and controls
  • Rugged metal construction
  • Flexible ¼ wave antenna
  • Menu and power lockout

Power

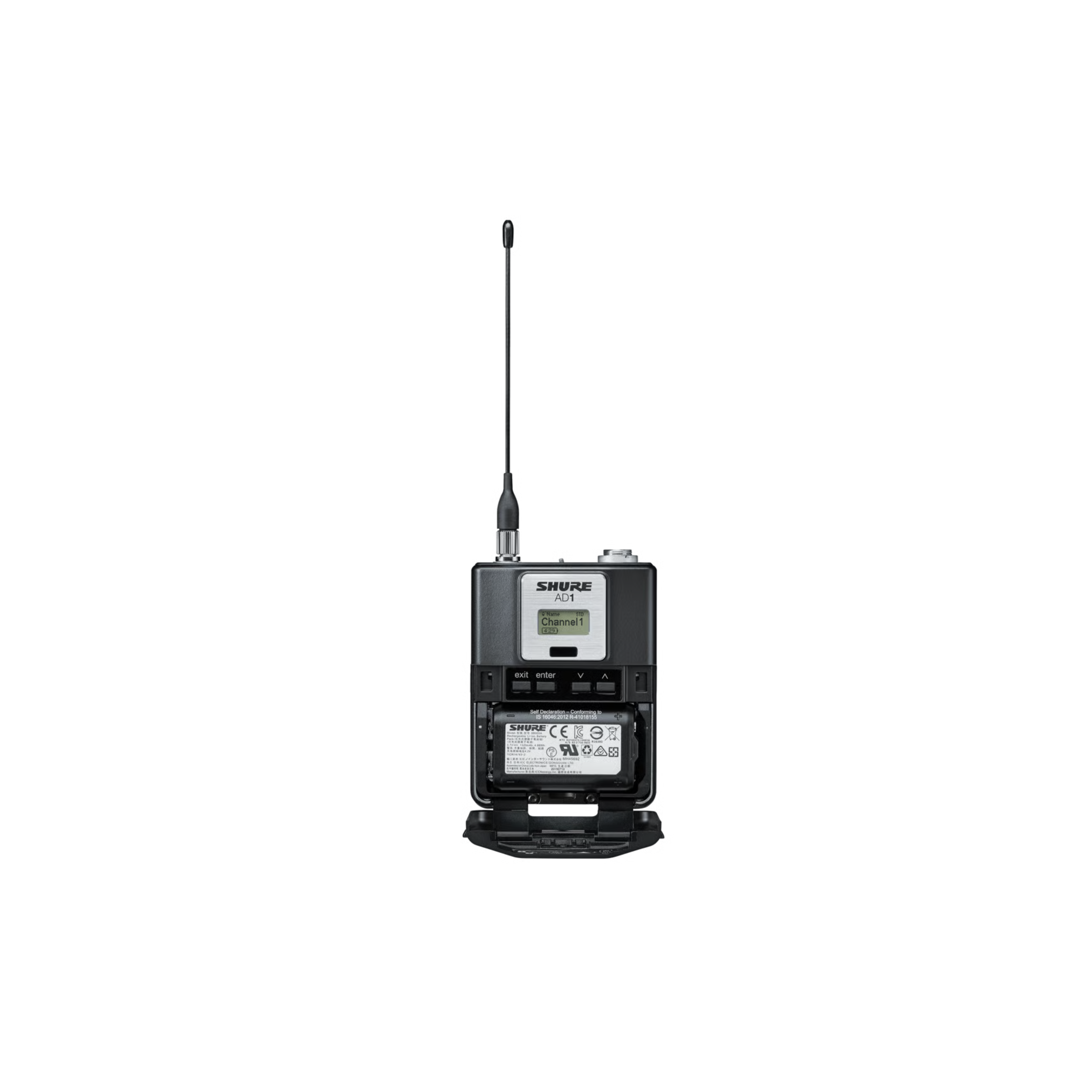

  • Over 8 hours continuous use with 2 x AA alkaline batteries
  • Shure SB900-series lithium-ion rechargeable battery provides extended battery life, precision metering, and zero memory effect
  • External charging contacts for docked charging
