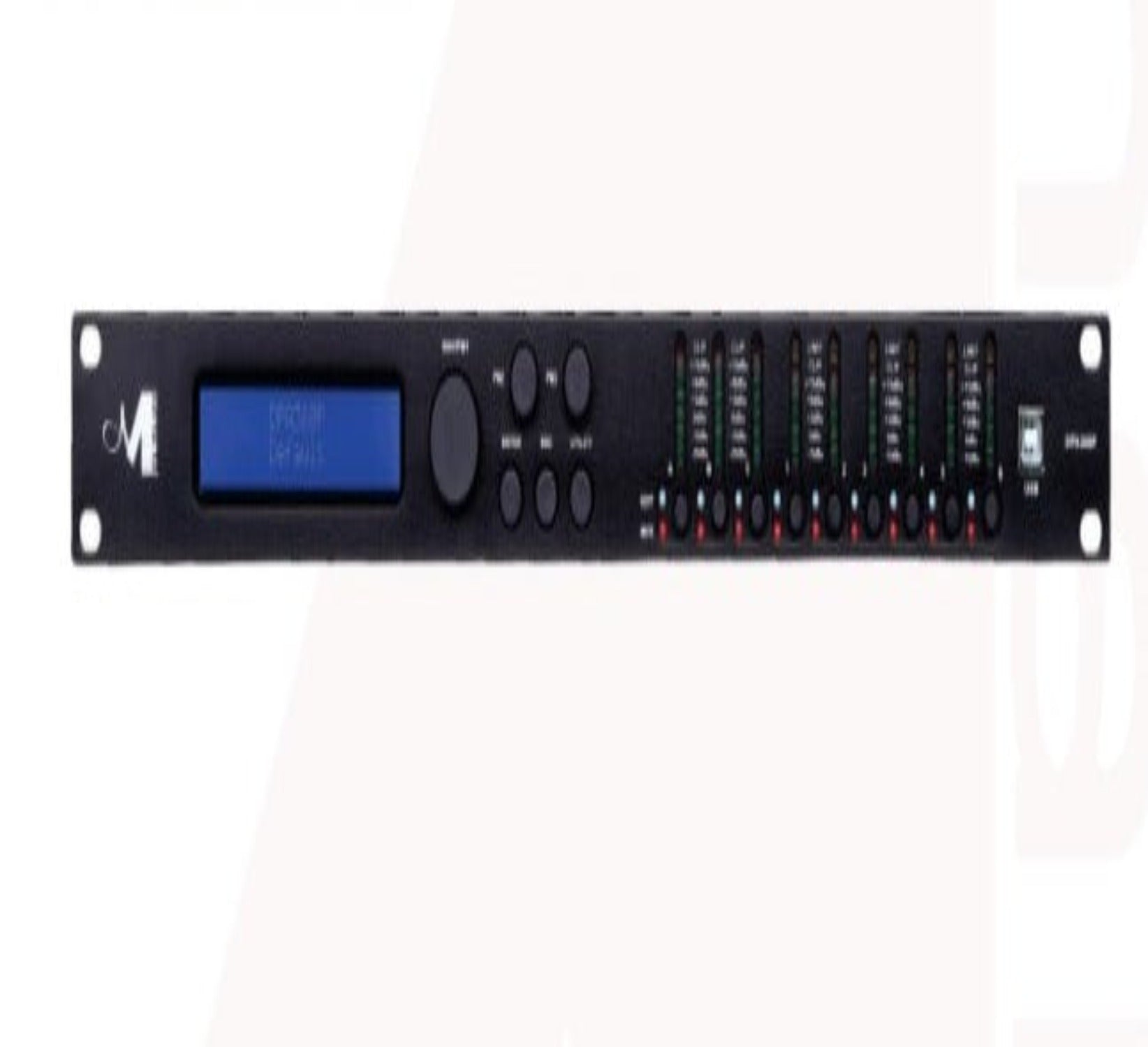

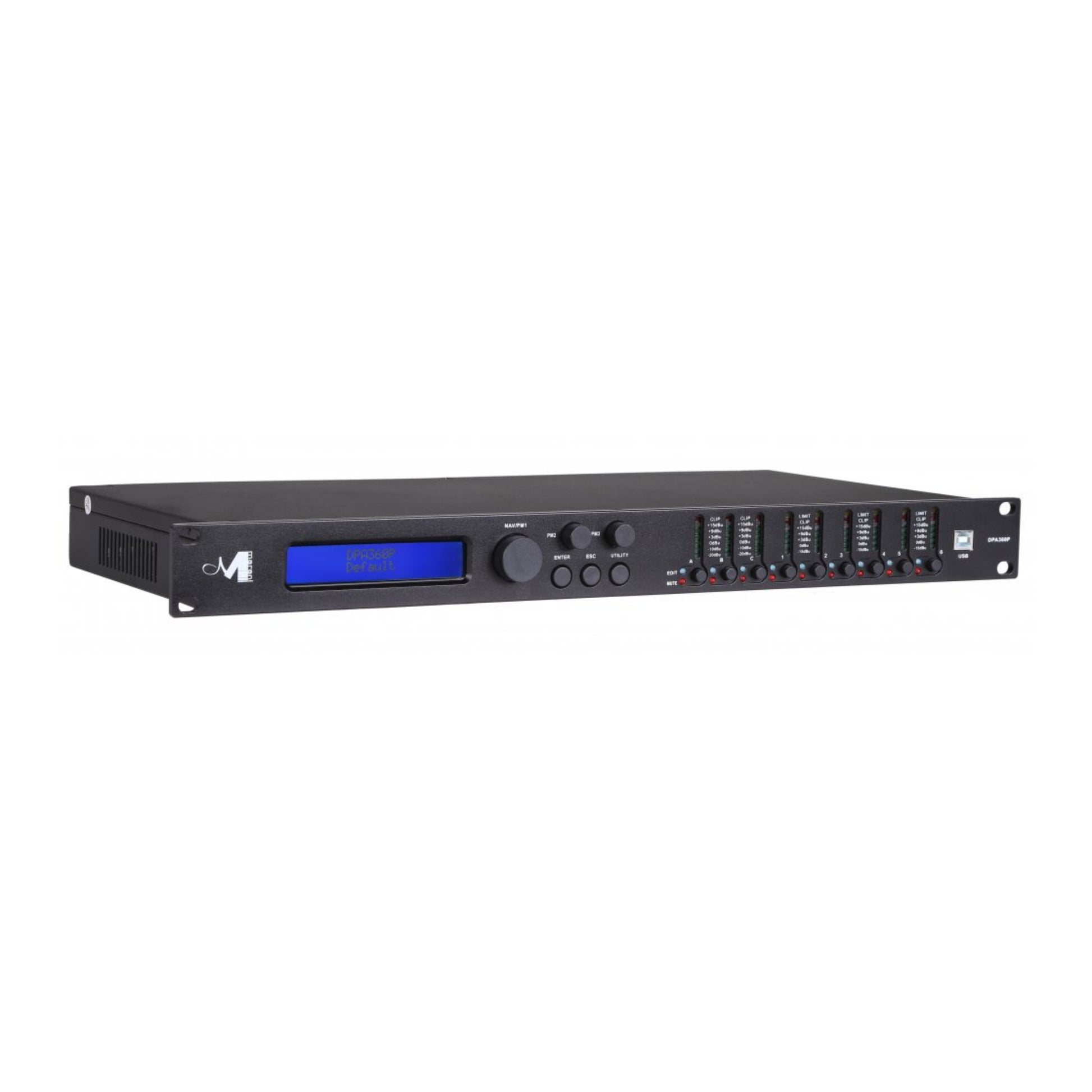

MARANI DPA360P
MARANI DPA360P
DPA360P is a cost-effective 3-IN/6-OUT digital speaker management system. Designed to be catered for any crossover configuration, it provides the suitable processing and control necessary for both live and fixed installation use. It offers 3 analog inputs, 6 analog outputs, managed by a powerful DSP Engine, in addition to high performance 24 bit AD/DA Converters. Each input channel provides a choice of EQ with 5-band Parametric EQ, Gain control and configurable Delay. Each output offers up to 8-band of parametric equalization, in addition to the crossover fi l ters which themsel ves prov ide slopes f rom 6dB/Octave up to 48dB/Octave. Each output path also features Peak Limiter and driver alignment Delay. The DPA360P supports a full matrix mixing mode where inputs may be routed/mixed in any ratio to any output. For remote configuration and control the DPA360P can be connected via USB or RS485 connections. The control remote PC software allows simultaneous control up to 32 units, setting all parameters and showing real time levels.
More Information
More Information
Technical Specification
Technical Specification
Analog input | 3 x XLR electronically balanced |
Analog Output | 6 x XLR electronically balanced |
Minimum Load | 150 ohm |
THD+N | 0.001% at 1kHz 0dBu |
S/N | >100 dBA |
Frequency Response | 20Hz - 20kHz; -0.5dBu at 20Hz and 20kHz |
AD & DA Converters | Cs42528 24bit |
