MACKIE PRO FX 22 V2

MACKIE PRO FX 22 V2

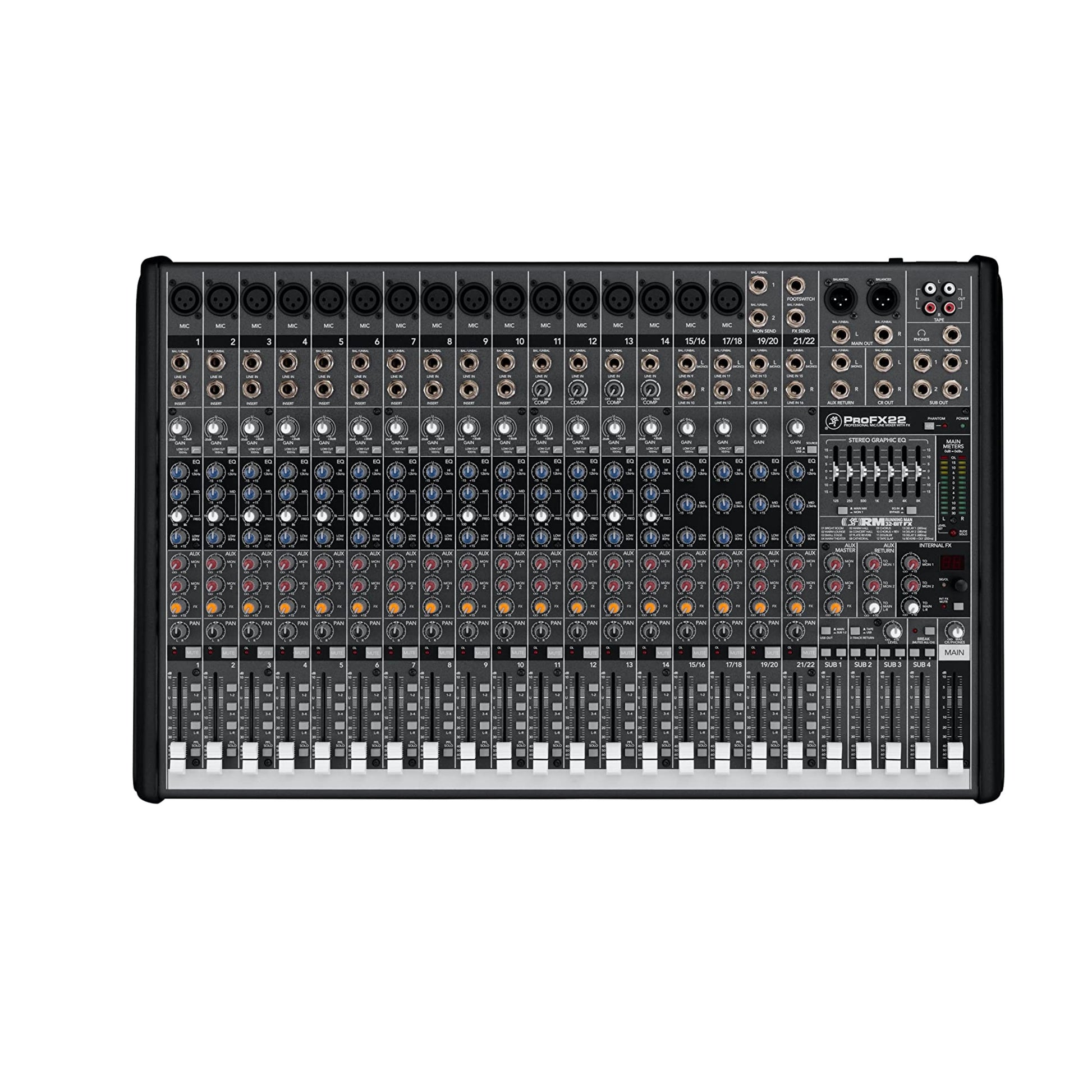

Think of the Mackie ProFX22 22-channel 4-bus mixer as your "audio swiss army knife." If you've got a band or a midsized venue that needs pro sound - but don't have the space or budget for mountains of outboard gear - the ProFX22 is your sonic problem solver. Onboard, you've got 16 Mackie low-noise mic preamps, 3-band EQ with sweepable mids, integrated gig-ready effects, precision 7-band GEQ, and more. You'd need a semi for all this in the old days. Now Mackie packs it all into a great-sounding, roadworthy mixer! If you're in need of a new mixer, the Mackie ProFX22 should be on your short list.

More Information

Mackie ProFX22v3 Professional Effects USB Mixer Features:
  • GigFX effects engine delivers 24 effects including reverbs, delays, and choruses
  • 17 Mackie Onyx mic preamps deliver clear signal and 60dB of gain
  • Rugged design will stand up to the wear and tear of the road
  • 3 Band EQ and 100Hz low-cut filter on all channels
  • Built-in channel compression
  • 48-volt phantom power on all mic channels
  • 24-bit/192kHz A/D for unmatched audio quality
  • USB for playback music and recording into your computer
  • Balanced XLR and balanced/unbalanced outputs
  • Headphone output has separate volume control for comfortable monitoring

Technical Specification

Tech Specs
  • Type:Analog Mixer with USB Interface
  • Channels:22 (14 x mono, 4 x stereo)
  • Computer Connectivity:USB (2 x 4)
  • A/D Resolution:24-bit/192kHz
  • Faders:22 x 60mm Faders
  • Inputs - Mic Preamps:2 x XLR-1/4" combo (mic/line/Hi-Z), 15 x XLR (mic)
  • Phantom Power:Yes
  • Inputs - Line:12 x 1/4", 6 x 1/4" (3 x stereo), 1 x 1/8" (stereo)
  • Outputs - Main:2 x XLR, 2 x 1/4" (L/R), 2 x 1/4" (control room)
  • Outputs - Other:4 x 1/4" (sub group out)
  • Aux Sends:1 x FX Send (post), 2 x Monitor Send (pre), 1 x Monitor Send (pre/post)
  • Send/Return I/O:1 x 1/4" (FX send), 3 x 1/4" (monitor send)
  • Busses/Groups:2 x Sub Group
  • Inserts:14 x 1/4" (channel)
  • Headphones:1 x 1/4"
  • USB:1 x Type B
  • Other I/O:1 x 1/4" (footswitch)
  • EQ Bands:3-band EQ with Variable Mid Frequency (mic channels), 100Hz Low-cut Filter
  • Signal Processing:12 x Channel Compressors
  • Effects:GigFX Engine: Reverbs, Chorus, Delay, Flange, Auto-Wah
  • Software:Waveform OEM DAW, FX Plug-in Collection
  • Power Source:Standard IEC AC cable
  • Height:4.4"
  • Width:17.1"
  • Depth:24.1"
  • Weight:19.8 lbs.
