WHARFEDALE PRO WLA 115 A

Name: WHARFEDALE PRO WLA 115 A
Brand: DEV ELECTRONICS
Availability: InStock

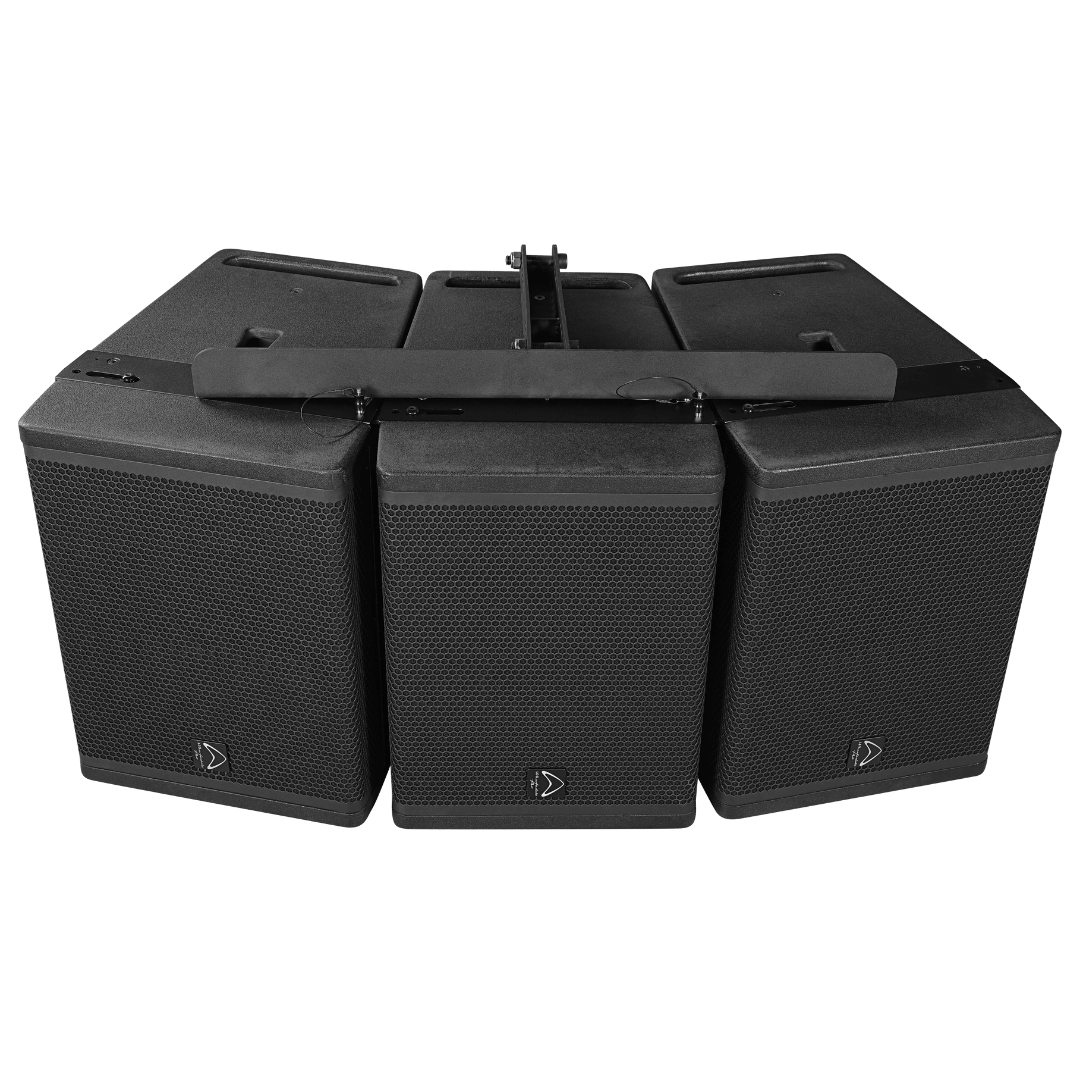

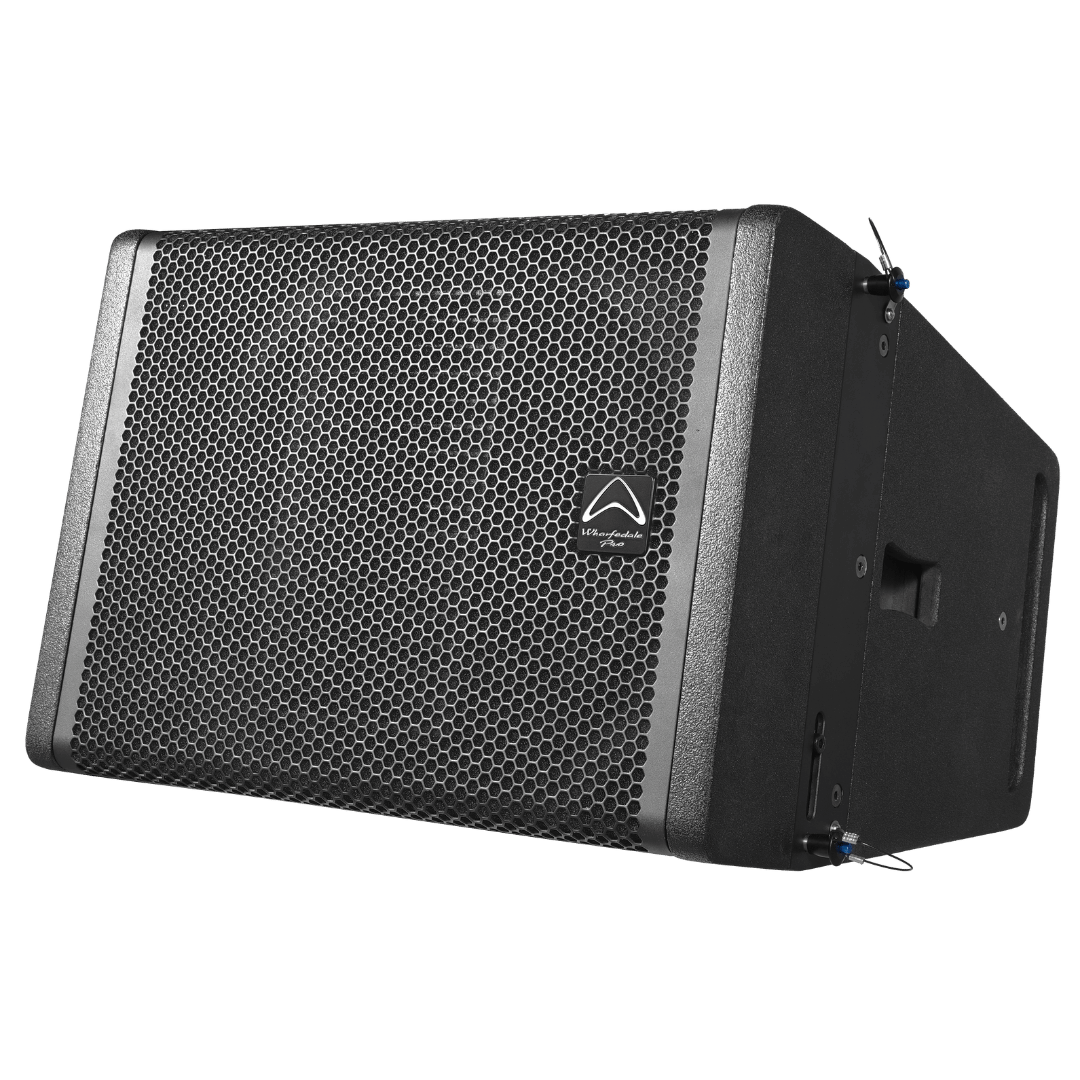

WLA-115A is a 15″ full-range active line array element from WLA-1A System — delivering enhanced low-frequency depth and output power through integrated amplification and precision DSP control.

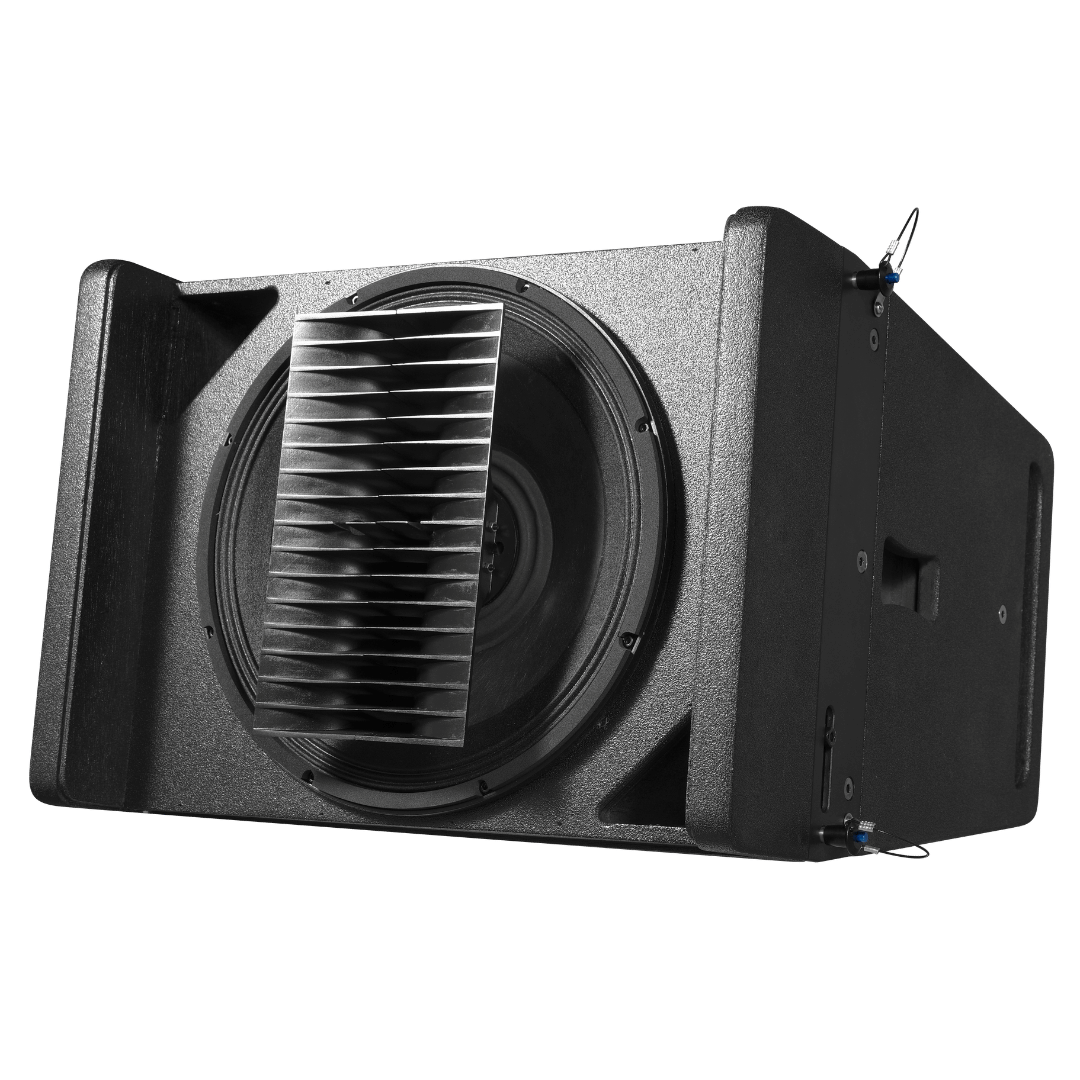

Equipped with a coaxial Beyma driver and our advanced EVO-Fold waveguide, it provides perfectly coherent coverage with exceptional clarity and tonal balance. Internal DSP with FIR filtering and software control with Pro=Link ensures optimal tuning, allowing seamless integration across any professional venue or touring setup.

More Information

With a 4.0″ LF driver voice coil and 2.87″ high-frequency voice coil, WLA-115A delivers 830 W continuous and 1660 W peak power, delivering a maximum SPL of 135 dB @ 1 m. Constructed from premium birch plywood with integral side plate rigging, it offers the power, precision and flexibility demanded by modern sound professionals.

Technical Specification

System Type: Active 15″ Coaxial Bi-Amplified
Frequency Response (+/-3 dB): 42 Hz – 20 KHz
Frequency Range (-10 dB): 25 Hz – 25 KHz
Maximum SPL (Peak): 141 dB (at 1 m, under free field conditions with dedicated preset)
Calculated Max SPL: 135 dB @ 1 m
Total Power Output: 1660 W Peak (1500 W LF + 160 W HF) / 830 W Continuous (750 W LF + 80 W HF)
LF Driver: 15″ Beyma Coaxial driver with 4.0″ voice coil
HF Driver: 2.87″ Voice coil, 1.5″ Exit
Waveguide: EVO-Fold®
Nominal Coverage (H x V): 100° x 20°
Amplifier Design: Class D, Dual Switching Mode Power Supply
