JTS CM-501

JTS CM-501

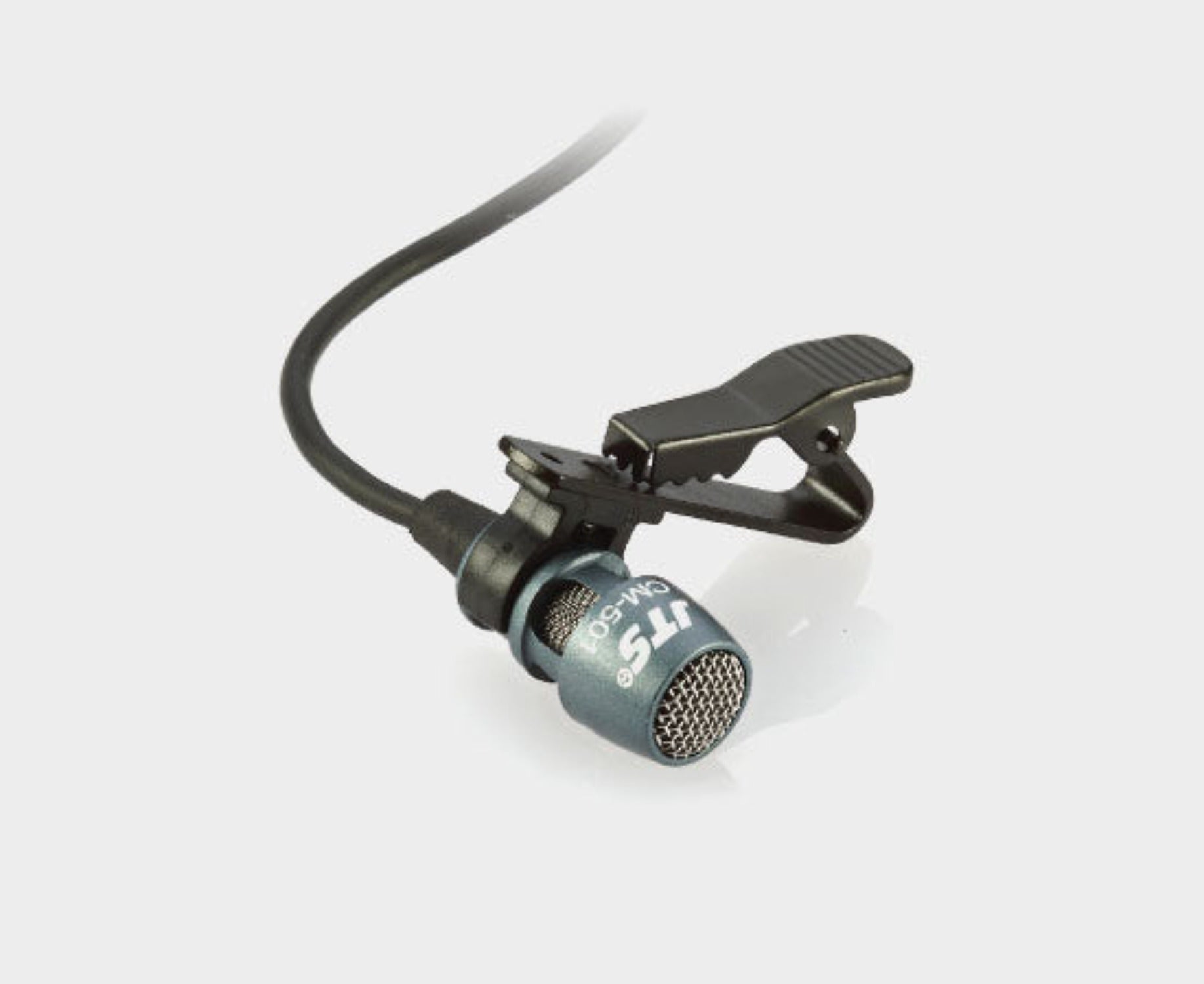

JTS CM 501 Electret Lavalier Microphone Overview:

  • For presentations and discussions
  • Good audibility, secure fit due to supplied tie clip, easy to attach
  • Cardioid polar pattern
  • Allows to pick up a precise voice of high quality over a wide dynamic range
  • Supplied with windshield

More Information

  • Uni-direction for high-quality voice pick-up.
  • Wide dynamic range and frequency response for excellent sound reinforcement.
  • Small size for minimum visibility.
  • Together with clip for easy attaching to a tie, lapel, dress etc.

Technical Specification

Specifications:

  • Transmission method: cable
  • Polar pattern: cardioid
  • System: electret
  • Audio frequency range: 100-15,000 Hz
  • Nominal impedance: 2.2 kΩ
  • Sensitivity: 3.2 mV/Pa
  • Max. sound pressure: 130 dB
  • Power supply: pocket transmitter
  • IN/PT/UF series or PS-500
  • Admiss. ambient temp: 0-40 °C
  • Weight: 20 g
  • Connection: 4-pole mini XLR
