ELECTRO VOICE EVID Compact Sound

ELECTRO VOICE EVID Compact Sound

The EVID Compact Sound speaker series continues the EVID family’s focus on form and function, with stylish, architecture-friendly design, a best-in-class performance-to-size ratio, and user-friendly installation and operation. The system is designed to provide exceptional background/foreground audio performance in retail spaces, restaurants, and similar environments – all while being heard but hardly seen.

In addition to EV-engineered components for superior quality and reliability, the system features quick-access connections, simple wiring, and flexible mounting options (hardware provided), and is compatible with a variety of existing EV amplifier products, making it a great choice for contractors and end-users alike. Available in black or white finish.

More Information

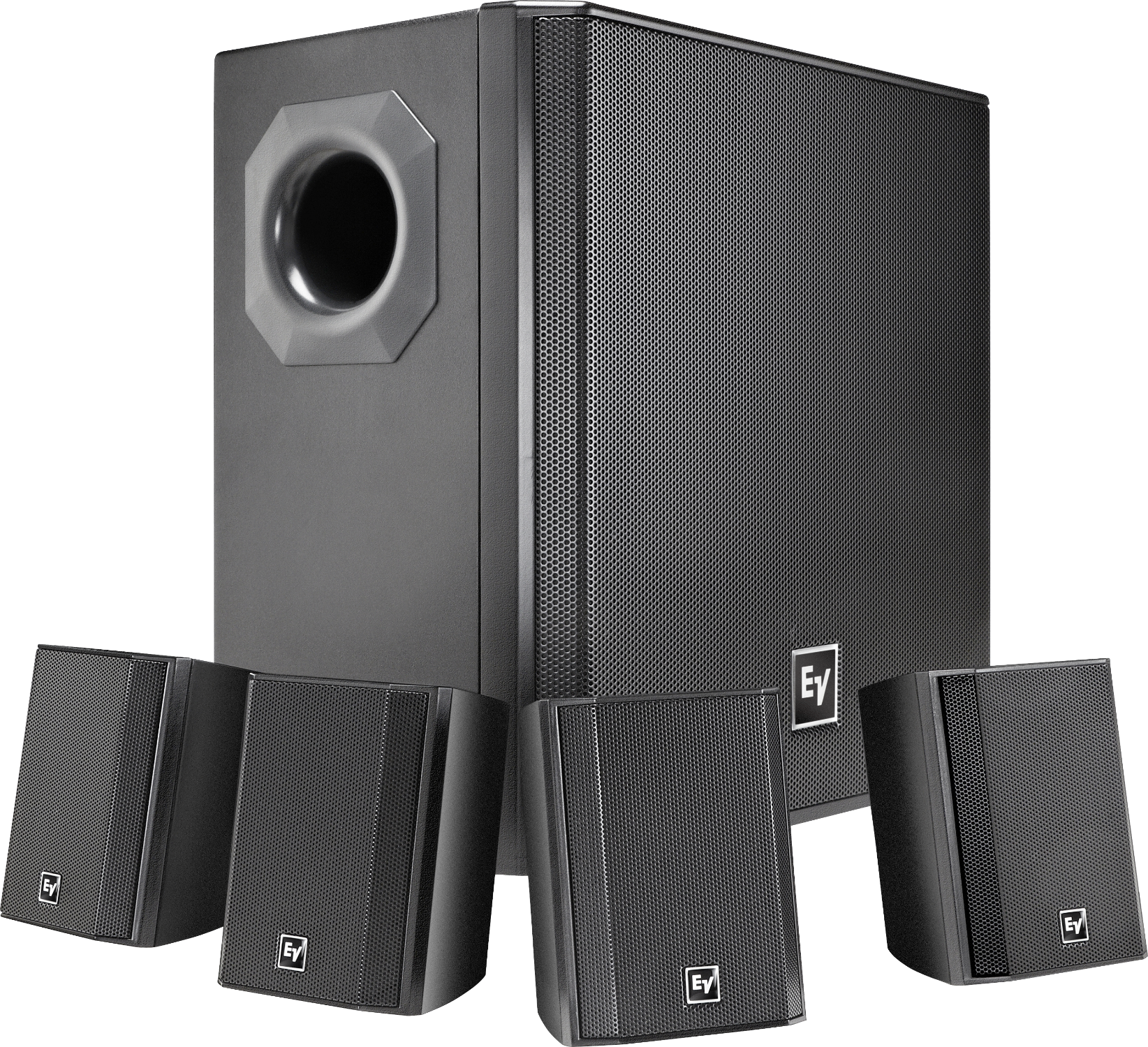

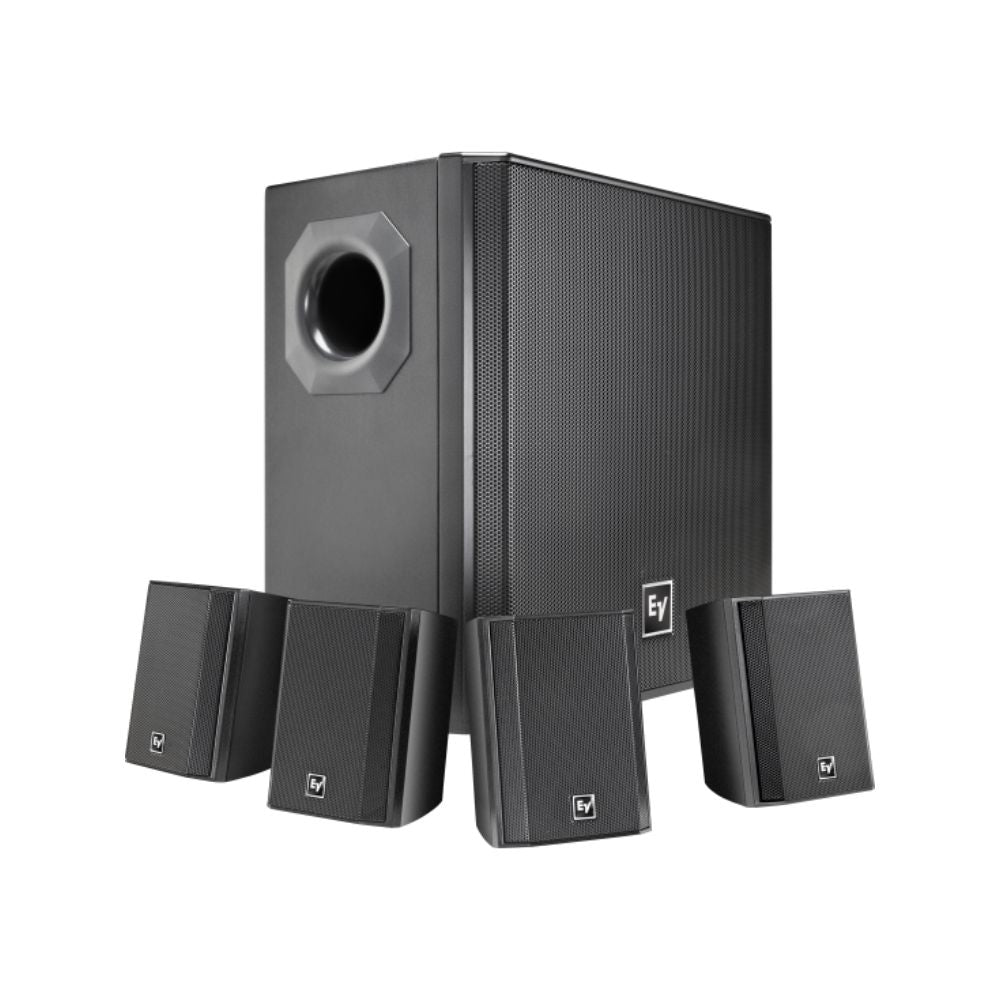

Compact full-range loudspeaker system

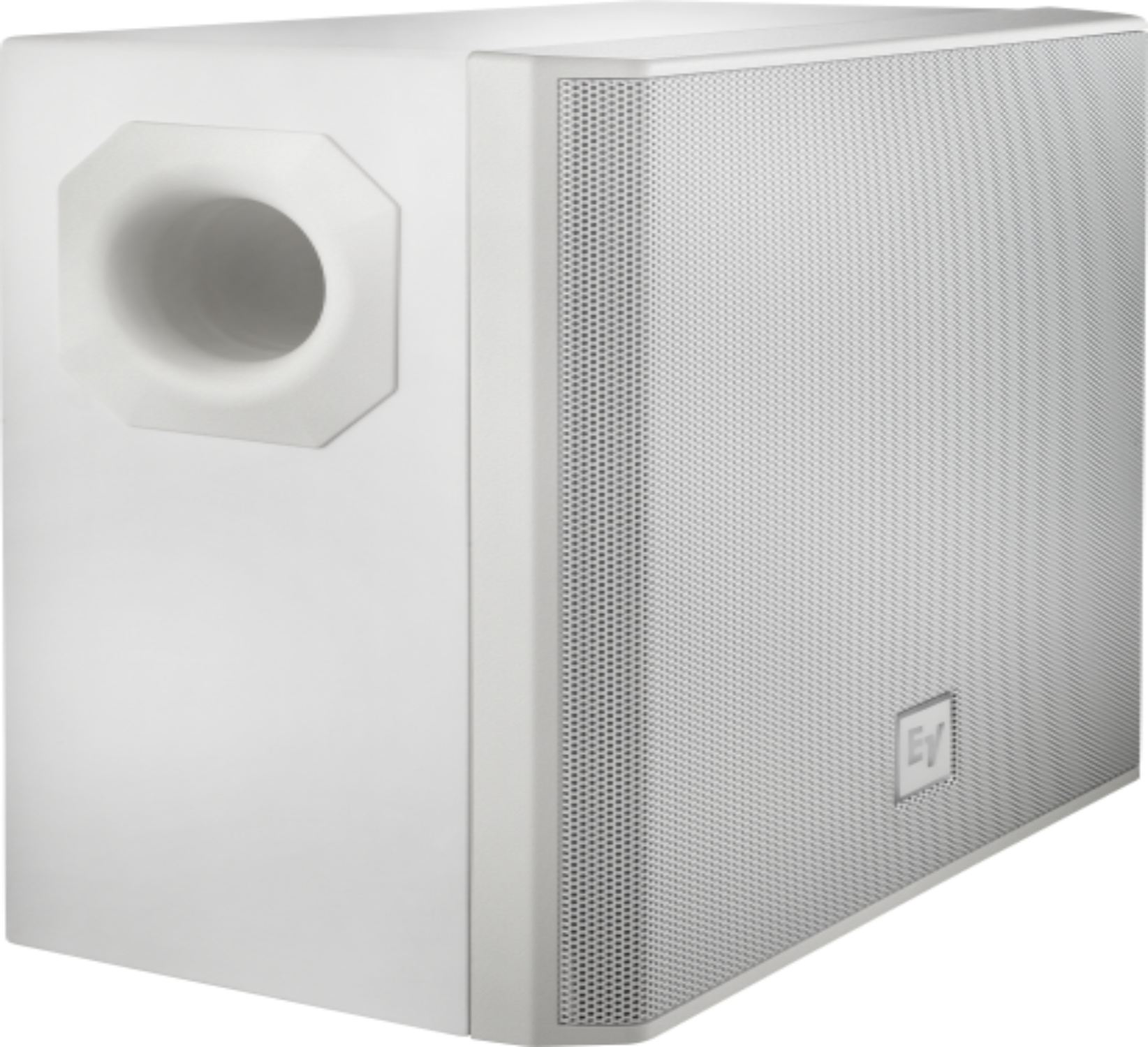

  • Subwoofer:
  • High-performance EV-engineered 8” transducer with high-efficiency multi-mode audio crossover network.
  • Compact, high-density wood enclosure with port for extended bass response, secure snapon speaker grille, and quick-mount slide-on bracket system.
  • Easy-access signal connections with Phoenix-style connectors for quick wiring, user-friendly mode selector for stereo or mono operation, and easy-tap selector dial (supports 4/8 ohm inputs or up to 100 W / 70/100 V audio connections).
  • Satellite Speakers:
  • 2” wide-range mid/high-frequency driver designed for broad, even coverage.
  • Multi-angle compact mounting bracket system allows for a variety of speaker angles.
  • Rigid high-impact ABS enclosure for durability.

Technical Specification



Frequency Range (-10 dB) EVID 2.1: 180 Hz - 20 kHz; EVID 40S: 180 Hz - 20 kkHz
Power Rating 200W
Connector Type Phoenix (2-pin)
SPECIFICATIONS
Enclosure Material EVID 2.1: ABS (fire rated); EVID 40S: Wood (MDF);
Sensitivity 1 W/1 m EVID 2.1: 84 dB; EVID 40S: 88dB
Available Color Black or white
Height EVID 2.1: 115mm; EVID 40S: 400mm
Width EVID 2.1: 85mm; EVID 40S: 400mm
Depth EVID 2.1: 95mm; EVID 40S: 230mm
Weight Net EVID 2.1: 0.5kg; EVID 40S: 12.05kg
Shipping Weight 1 sub and 4 satellites: 18.26kg
Impedance EVID 2.1: 16Ω; EVID 40S: Dual 8Ω / mono 4Ω
Power Handling (Continuous / Peak) EVID 2.1: 30 W; EVID 40S: 200W
Maximum SPL EVID 2.1: 100 dB; EVID 40S: 114dB
Coverage, Voice EVID 2.1: 150° x 150°; EVID 40S: Omnidirectional
Coverage, Music EVID 2.1: 100° x 100°; EVID 40S: Omnidirectional
Transducer size EVID 2.1: 50 mm (1.97 in); EVID 40S: 200
Bracket Adjustment Range EVID 2.1: 160° x 60° ; EVID 40S: Fixed
Included Accessories Wall bracket; hex wrench
Passive Power Handling 200W peak
Transformer Taps (Transformer Version Only) EVID 2.1: NA; EVID 40S: 100 W, 50 W, 25
