ELECTRO VOICE EVID C8.2
ELECTRO VOICE EVID C8.2

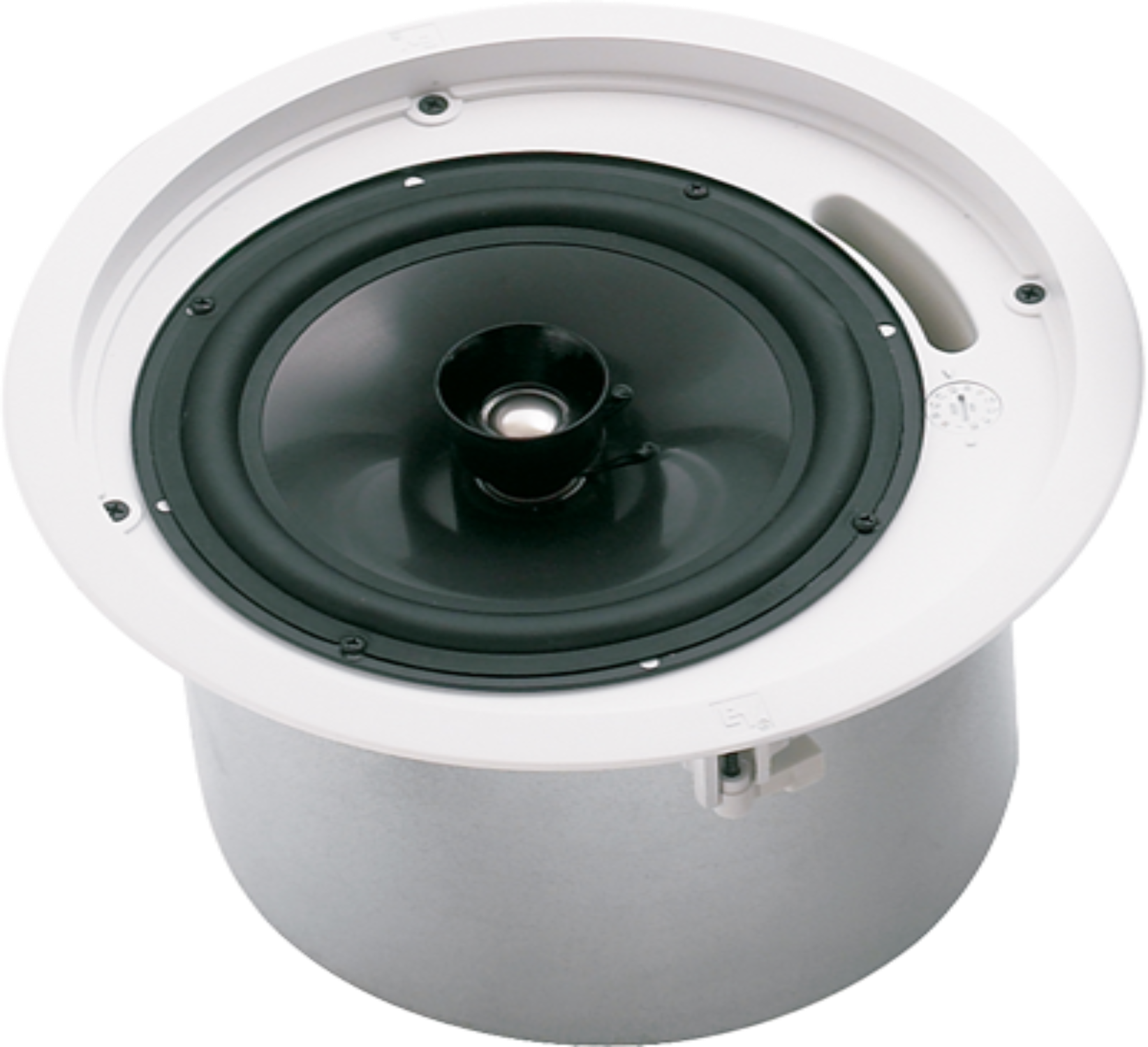

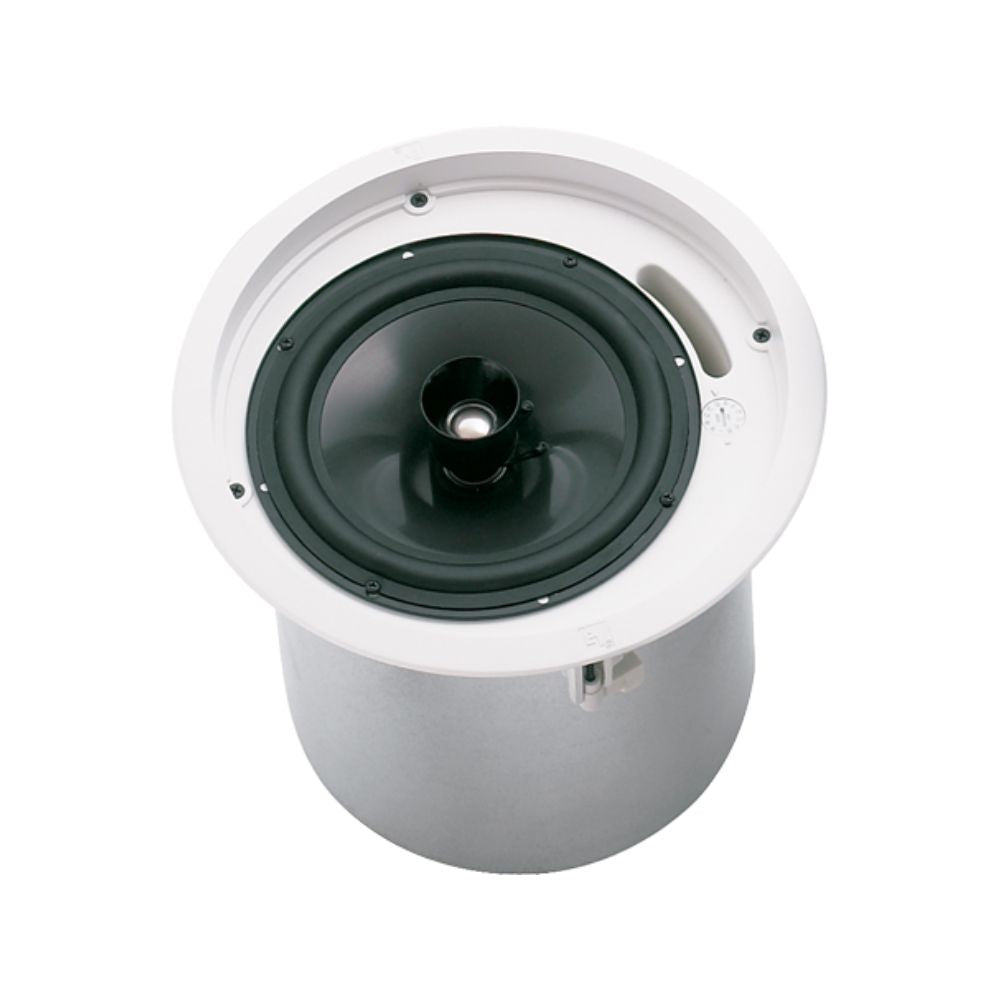

Each of the Electro-Voice EVID C8.2 (White) is an 8" coaxial flush-mount installation speaker designed to work within a multi-unit system in a wide variety of ceiling construction types. The high output and high-quality, extended frequency reproduction of this speaker are effectively combined for use as a background music and paging solution for offices, waiting rooms and other similar spaces.
The EVID C8.2 is equipped with a line-matching transformer for 70V/100V operation, and a transformer tap selector switch that includes 8 Ohm bypass operation, conveniently located on the front of the speaker. The enclosure is both ported and tuned, optimizing bass response, and the system is supplied with two speakers and a well-designed 3-point mounting system for simplified installation.
More Information
More Information
Technical Specification
Technical Specification
| SPECIFICATIONS | |
| Freq. Response (-10 dB): | 50 Hz - 20 kHz |
| Coverage (Conical): | 110° |
| Power Handling: | 75 W Cont. / 300 W Peak |
| SPECIFICATIONS | |
| Sensitivity (SPL 1W/1m): | |
| Max Calculated SPL: | 110 dB Cont. / 116 dB Peak |
| Impedance: | 8 Ohms nominal (transformer bypass) |
| Network: | Network and transducers protected, 12 dB/oct 2.6 kHz |
| LF Transducer: | 8 in. (200 mm) Polypropylene cone |
| HF Transducer: | 1 in (25 mm) Ti Mylar laminate |
| Transformer Taps: | 70V: 1.88, 3.75, 7.5, 15 or 30w 100V: 3.75, 7.5, 15 or 30W Bypass: 8 Ohms |
| Connectors: | C8.2: Phoenix type removable, with screw terminals and "loop-thru", accepts 12 ga wire C8.2D: Fire-safety rated input block, 3 terminal barrier strip accepts 12 ga wire |
| Enclosure Material: | Baffle- UL 94V-O rated ABS Backcan-Zinc plated steel |
| Grille: | Perforated powder coated steel with safety tether |
| Support Hardware: | Tile bridge, backing plate support, cutout template, paint shield |
| Dim (H x Dia.): | 10.0" x 10.6 (255mm x 270mm) |
| Cutout Size: | 10.75" (272mm) |
| Net Weight (each): | 11.0 lbs (5.0 kg) |
| Shipping Weight (pair): | 24.0 lbs (11.0 kg) |
| Safety Agency Ratings: | UL 1480 Safe for use in air handling spaces per UL 2043. |
