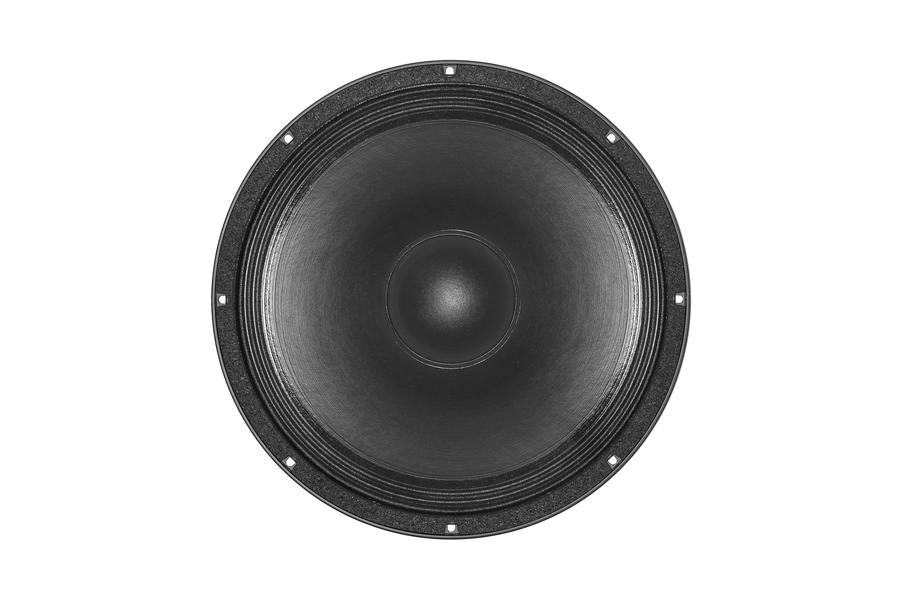

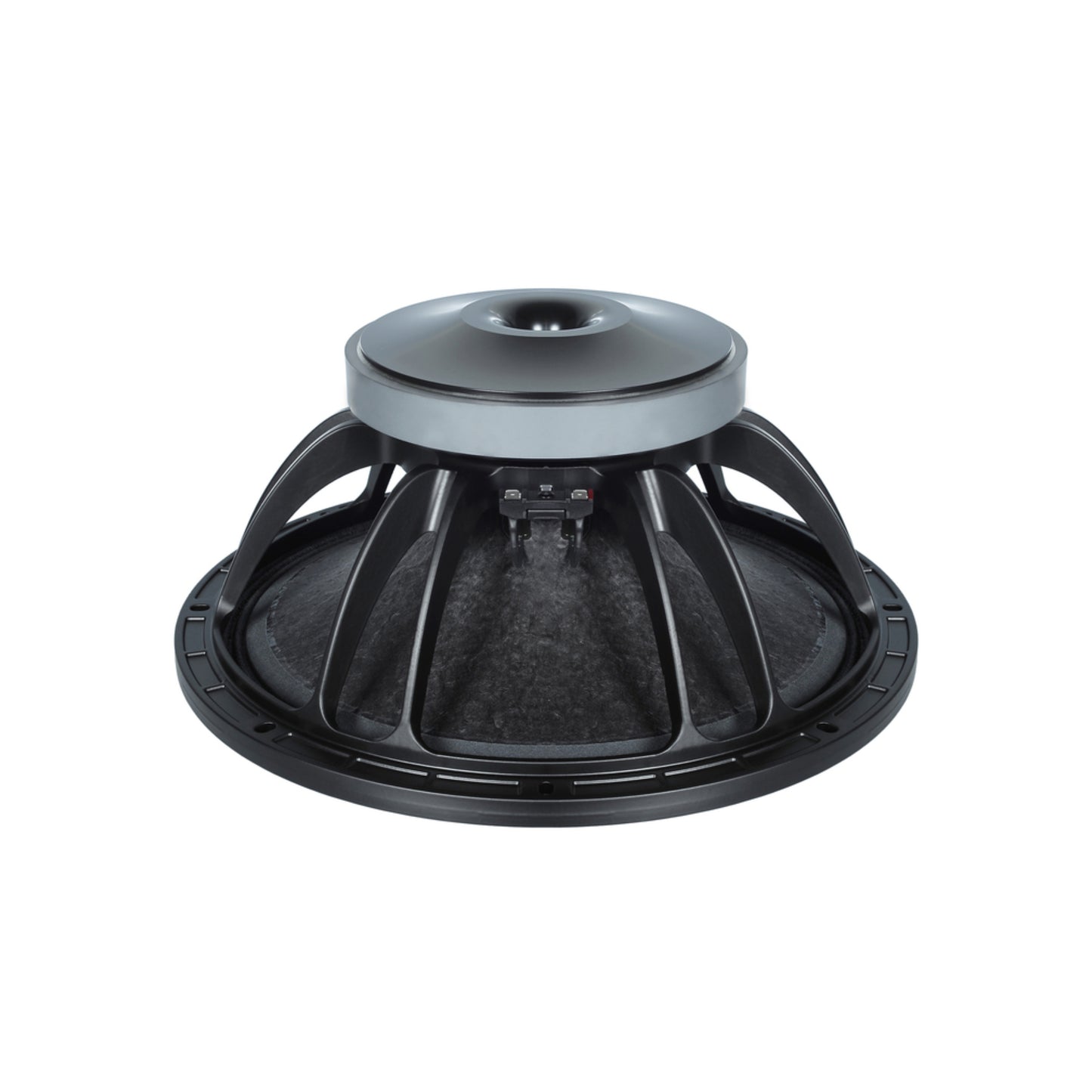

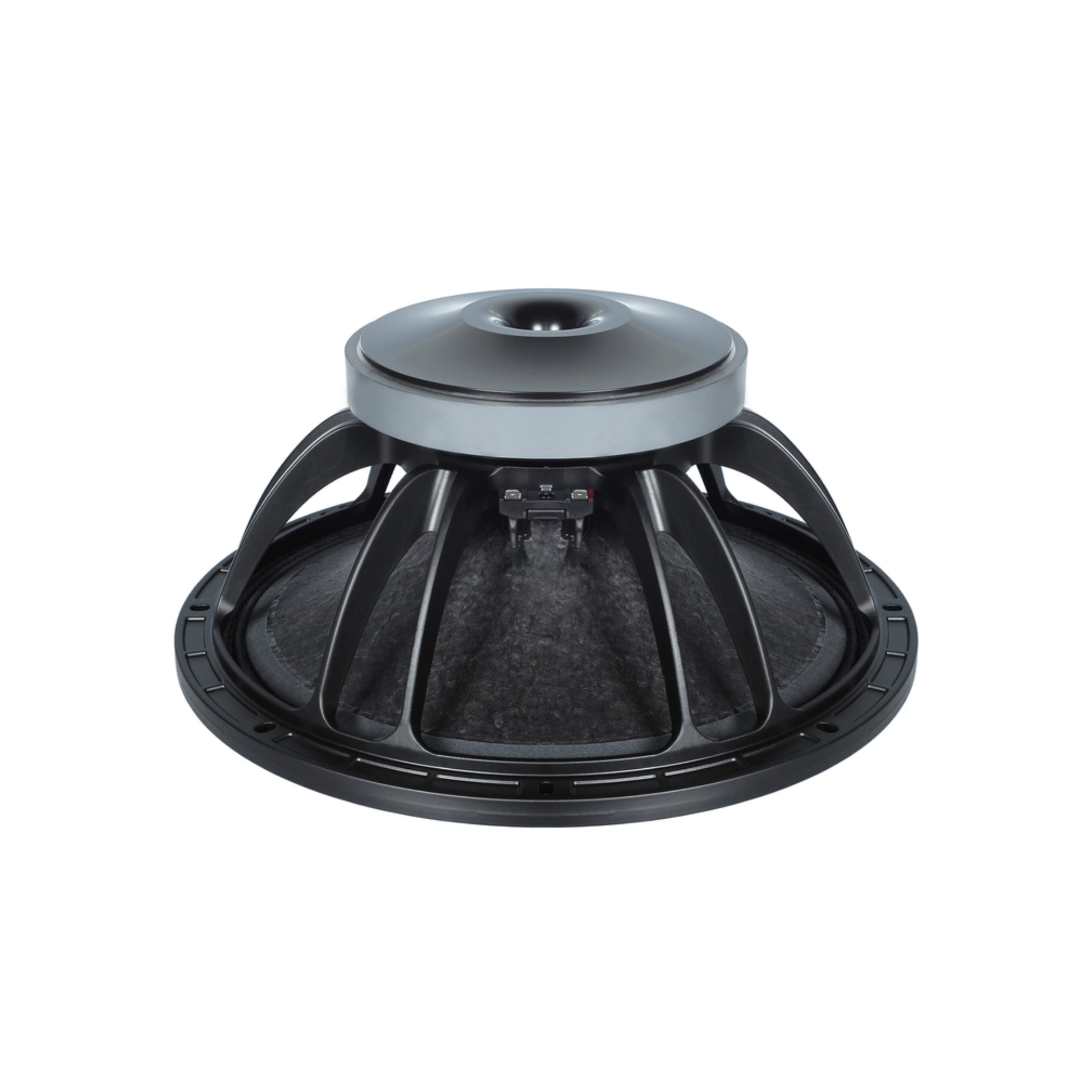

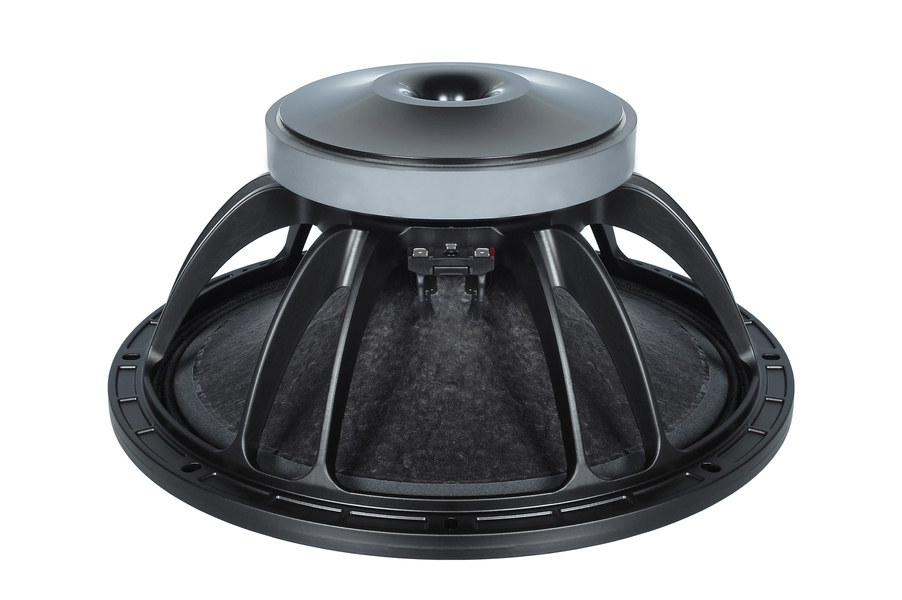

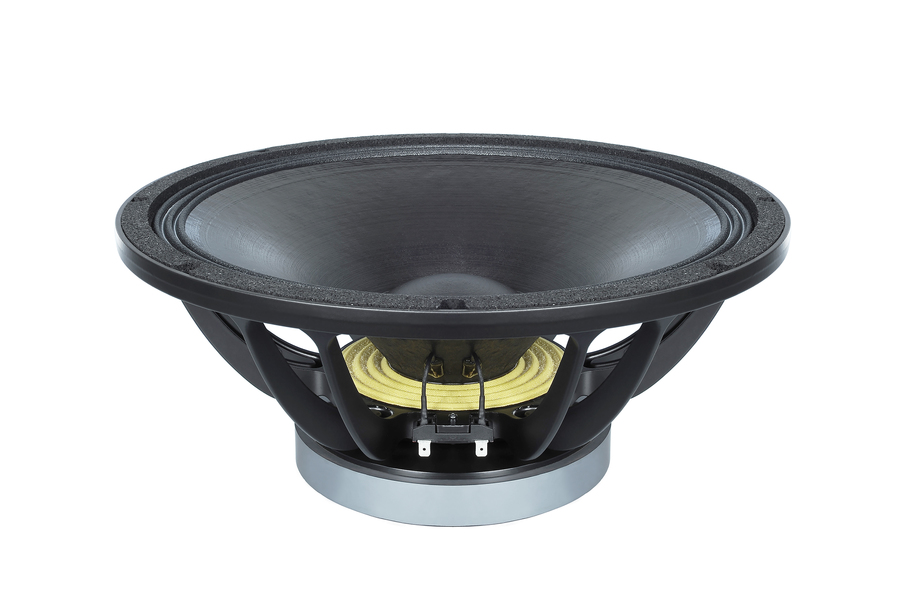

B&C 15 FW 76 LF Driver B&C 15 fw 76
More Information
More Information
Technical Specification
Technical Specification
| Product Specifications | |
| Nominal Diameter | 15" |
| Bolt Circle Diameter | 14.7 |
| Power Handling (RMS) | 500 Watts |
| Power Handling (MAX) | 1000 Watts |
| Impedance | 8Ω |
| Frequency Response | 40 to 2,000Hz |
| Sensitivity | 100dB 2.83V/1m |
| Voice Coil Diameter | 3" |
| Thiele-Small Parameters | |
| Resonant Frequency (Fs) | 40Hz |
| DC Resistance (Re) | 5Ω |
| Voice Coil Inductance (Le) | 1.4mH |
| Mechanical Q (Qms) | 5.1 |
| Electromagnetic Q (Qes) | 0.22 |
| Total Q (Qts) | 0.21 |
| Compliance Equivalent Volume (Vas) | 4.9ft³ |
| BL Product (BL) | 26.2T·m |
| Diaphragm Mass Inc. Airload (Mms) | 117g |
| Maximum Linear Excursion (Xmax) | 7mm |
| Surface Area of Cone (Sd) | 855cm² |
| Materials of Construction | |
| Cone Material | |
| Surround Material | Cloth |
| Voice Coil Wire Material | Copper |
| Voice Coil Former | Fiberglass |
| Basket / Frame Material | Cast Aluminum |
| Magnet Material | Ferrite |
| Mounting Information | |
| Overall Outside Diameter | 15.5" |
| Baffle Cutout Diameter | 13.9" |
| Depth | 6.9" |
| # Mounting Holes | 8 |
| Parts Express Staff Recommended Enclosure Volume | |
| Vented Volume | 3ft³ |
| Vented F3 | 44.6Hz |
