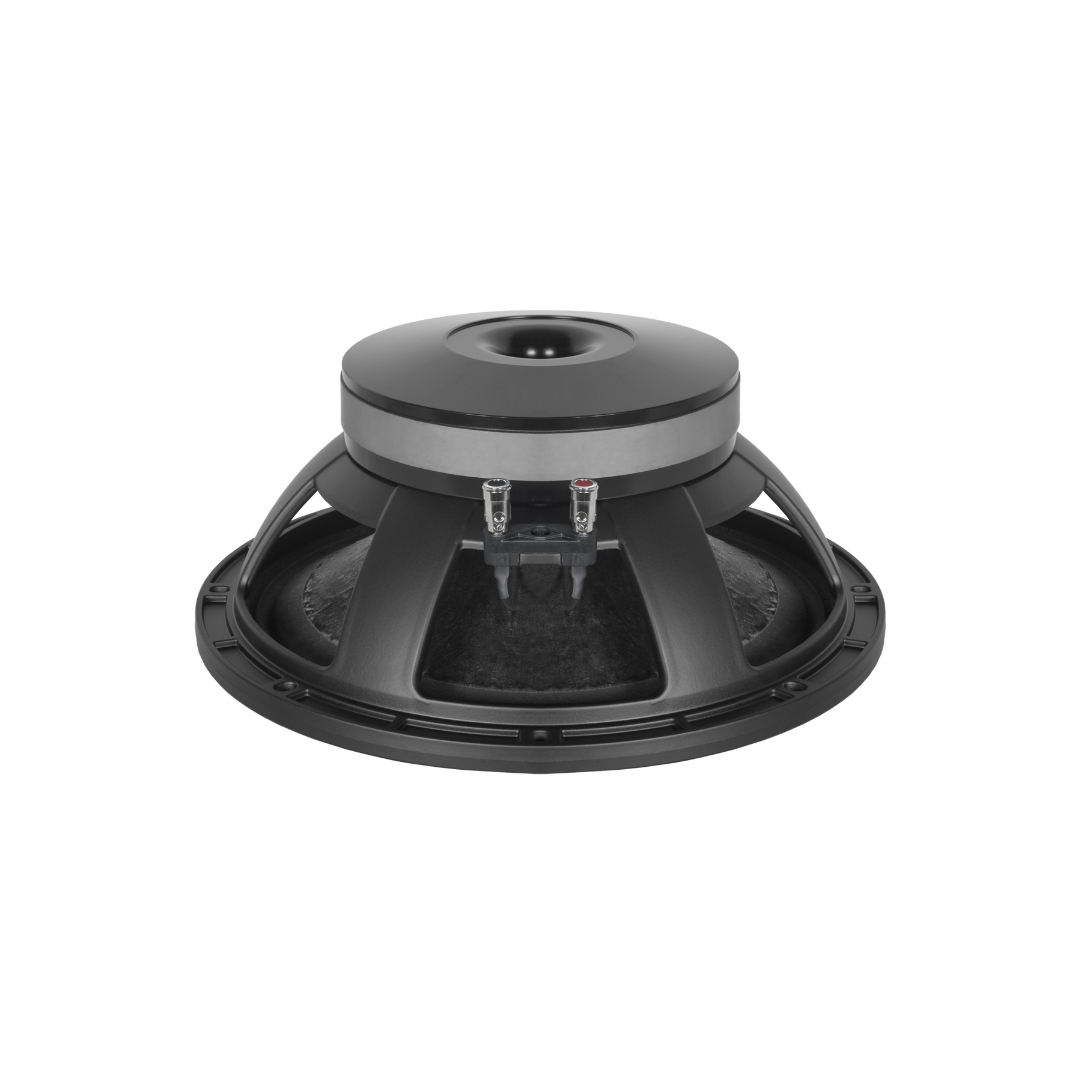

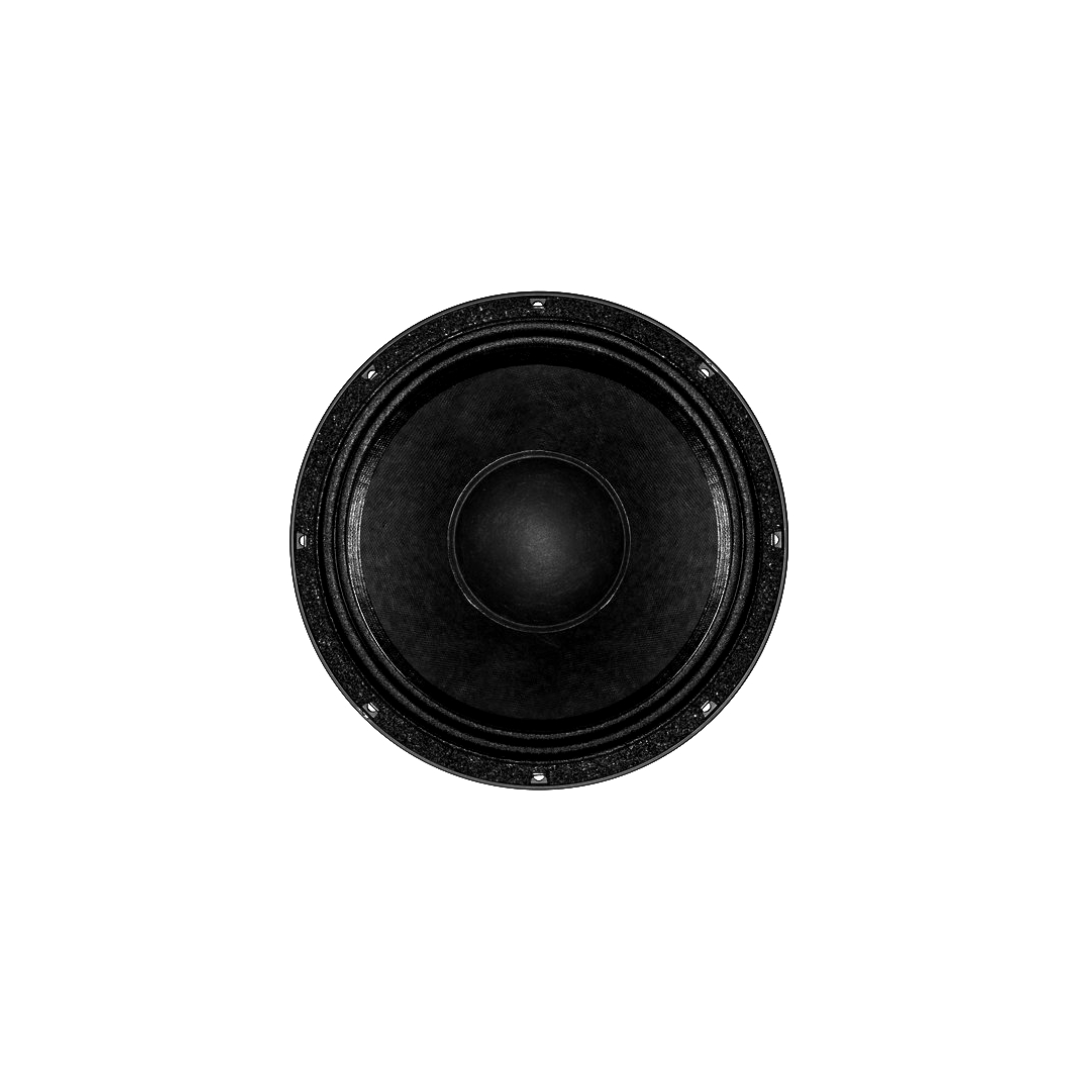

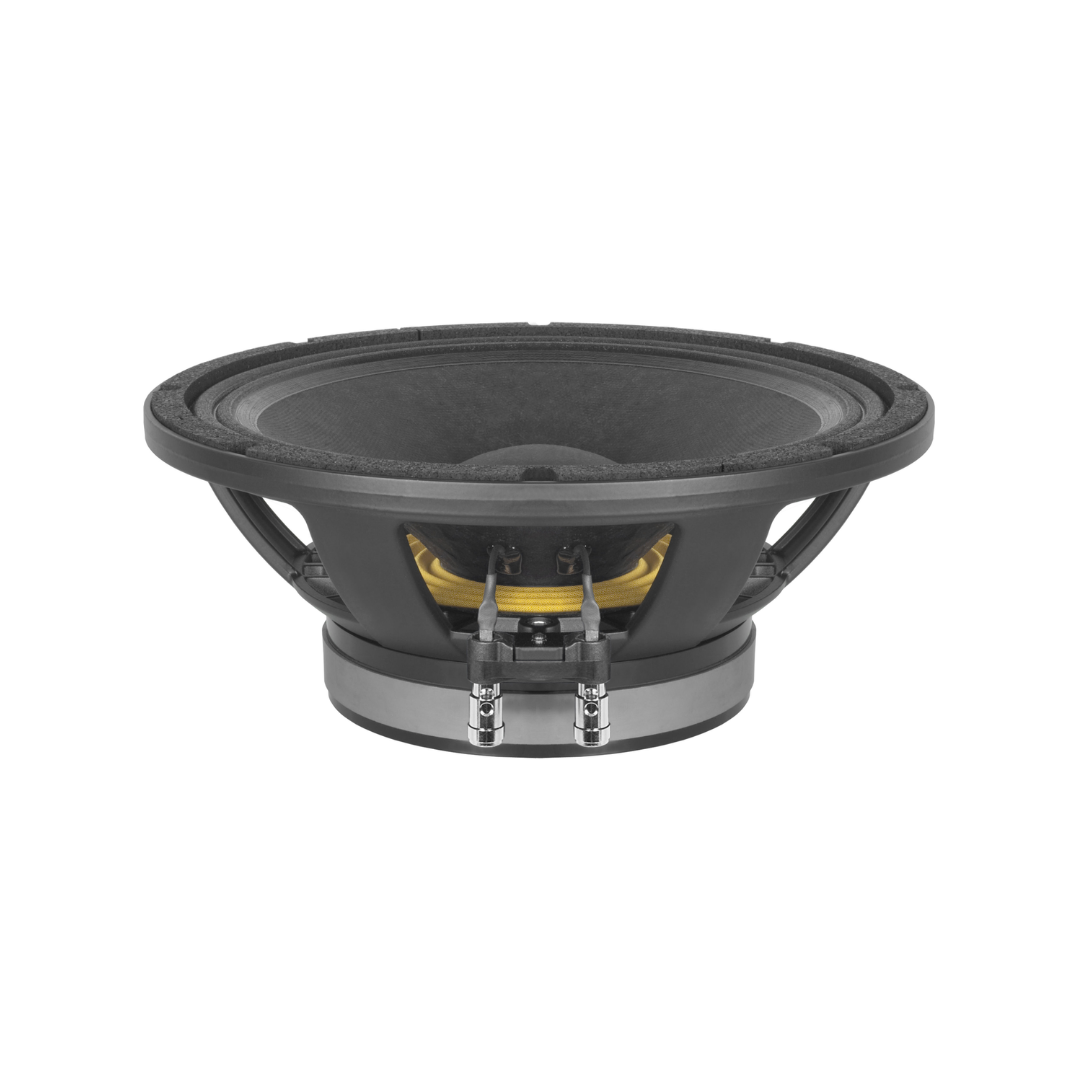

B&C 12 PLB 76
B&C 12 PLB 76
Since 1946, B&C Speakers has been one of the largest and most prestigious professional loudspeaker transducer manufacturers in the world. In addition to designing and distributing components under the B&C brand name, they also supply OEM components to many of the top professional audio brands in the market today.
More Information
More Information
Technical Specification
Technical Specification
| Nominal Diameter | 320 mm (12 in) |
| Minimum Impedance | 6.4 Ω |
| Continuous Power Handling | 700 W |
| Frequency Range | 50 Hz - 2000 Hz |
| Winding Material | Aluminium |
| Winding Depth | 16 mm (0.62 in) |
| Flux Density | 1.05 T |
| Nominal Impedance | 8 Ω |
| Nominal Power Handling | 350 W |
| Sensitivity | 99 dB |
| Voice Coil Diameter | 76 mm (3 in) |
| Former Material | Glass Fibre |
| Magnetic Gap Depth | 11 mm (0.4 in) |
| Woofer Cone Treatment | None |
