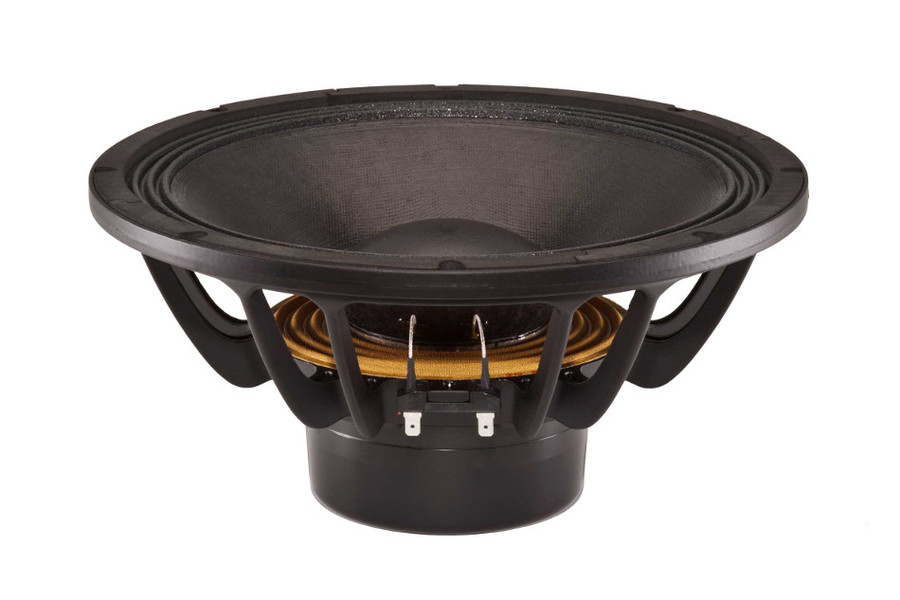

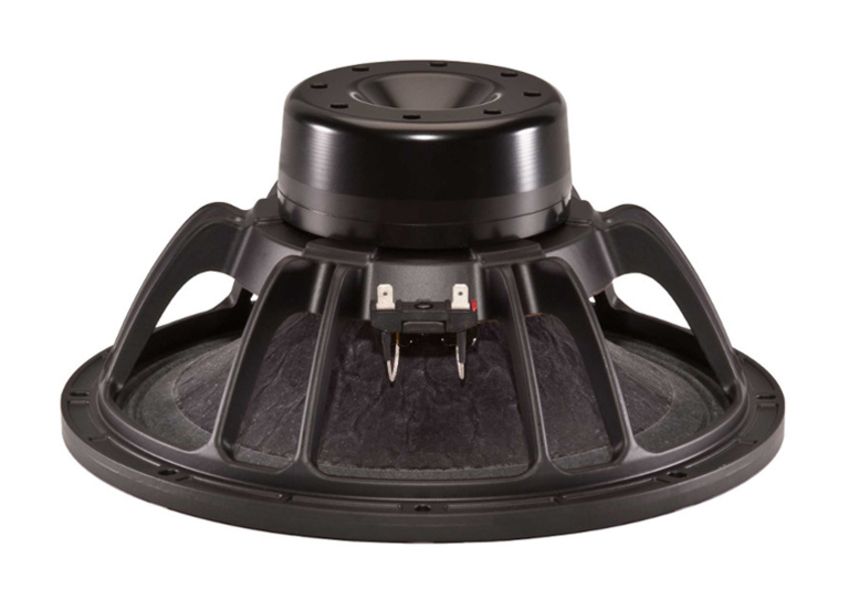

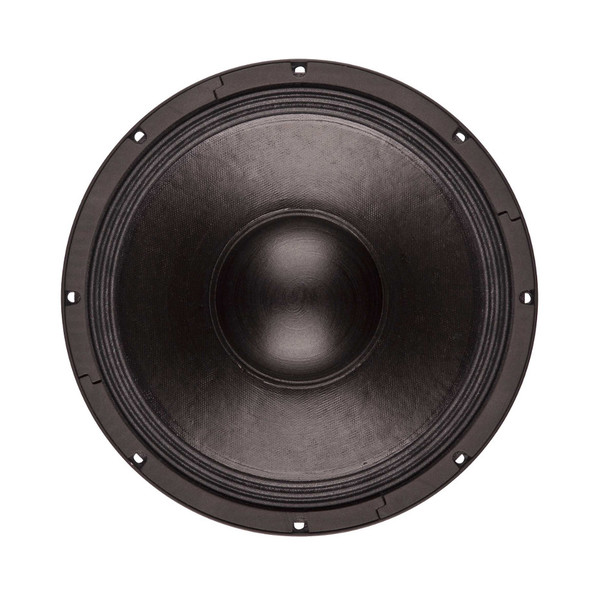

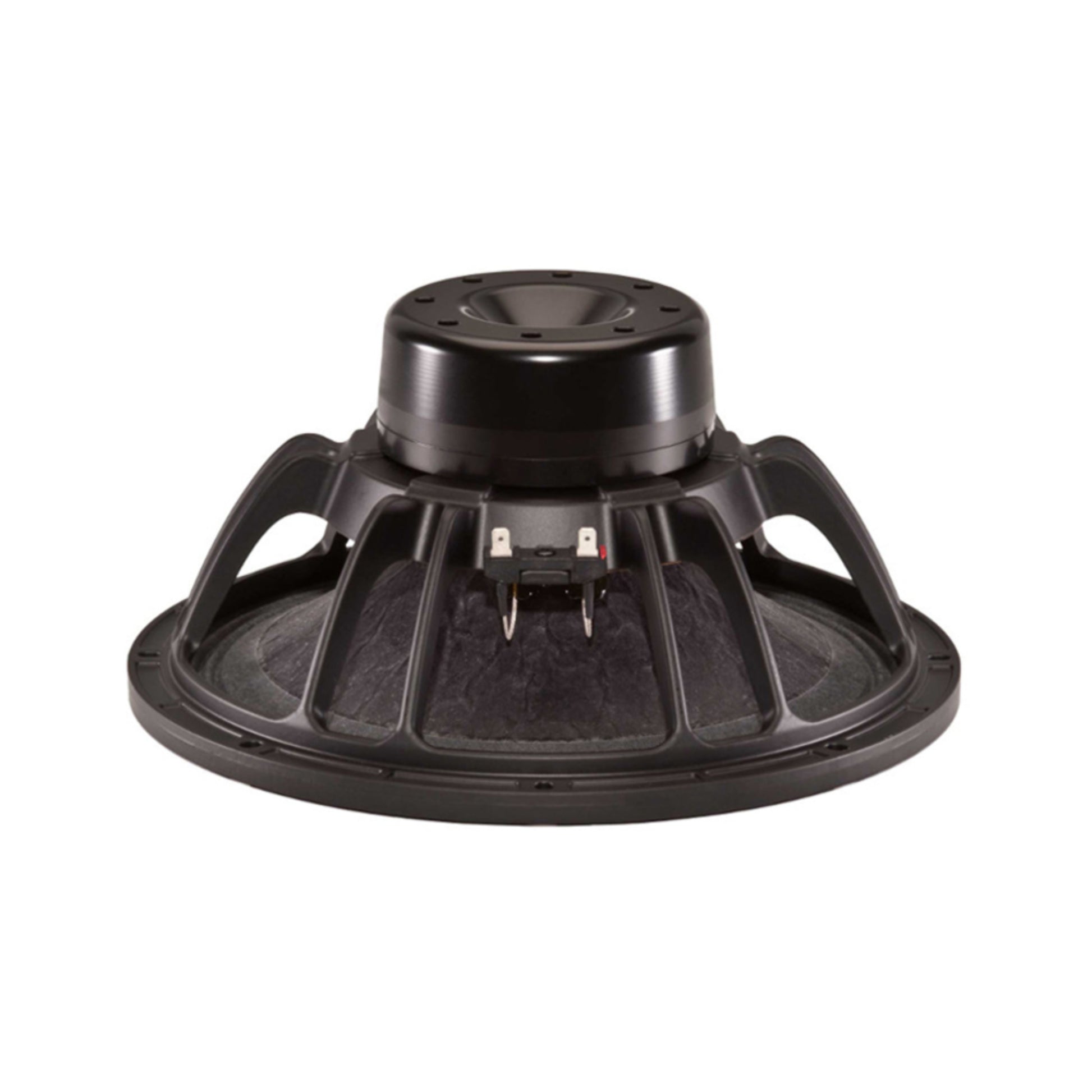

B&C 12 NDL 88

B&C 12 NDL 88

The NDL88 series is perfectly balanced for the loudspeaker systems of today. Incorporating a high temperature neodymium magnet inside the 3.5” (88mm) voice coil reduces the amount of steel needed in the motor structure, saving cost and weight. Unexpected low frequency output and midrange extension to meet with almost any driver for two way applications is the hallmark of this new performance-oriented woofer line from B&C Speakers. Do more, with less, with the NDL88 series.


More Information

  • B&C 12NDL88 IS A 12" MID-BASS / BASS SPEAKER THAT HANDLES 700 WATTS AES STANDARD & 1,400 WATTS PROGRAM
  • FEATURES A 3.5" VOICE COIL, WATERPROOF FRONT AND BACK CONE & LIGHTWEIGHT NEODYMIUM MAGNET
  • NEW STYLE CAST FRAME FOR INCREASED STRENGTH AND BETTER COOLING
  • NICE COMBINATION OF GOOD POWER HANDLING & WARM  MIDRANGE AND VERY STRONG TIGHT BASS
  • HIGH XMAX OF 8.0MM WITH GOOD EFFICIENCY OF 98DB SPL

Technical Specification



SPECIFICATIONS
Nominal Basket Diameter 12" / 320mm
Impedance 8 ohms
AES Power Rating 700 Watts
Program Power 1,400 Watts
Frequency Response 50Hz - 3.0kHz
Sensitivity (1W/1m) 98dB
Voice Coil Diameter 3.5" / 88mm
Winding Material Aluminum
Former Material Glass Fibre
Winding Depth .85" / 21mm
Magnetic Gap Depth .4" / 10.5mm
Flux Density 1.15T

MOUNTING INFORMATION
Overall Diameter 12.4" / 315mm
Bolt Circle Diameter 11.73" / 298mm
Baffle Cutout Diameter 11.1" / 282mm
Depth 5.51" / 140mm
Flange & Gasket Thickness .51" / 13mm
No. Of Mounting Holes 8
Net Weight 8.6 lbs./ 3.9 kg.
Shipping Weight 9.92 lbs./ 4.5 kg.


THIELE-SMALL PARAMETERS
Resonant Frequency (fs) 51 Hz
Impedance (Re) 5.0 ohms
Electrical Factor(Qes) 0.29
Mechanical Q (Qms) 5
Total Q (Qts) 0.27
Compliance Equiv. Vol. (Vas) 52 Liters/1.84cu. ft.
Voice Coil Overhang (Xmax) 8.0mm
Reference Efficiency 2.30%
BL Factor 19.9 T-M
Surface Area of Cone (Sd)m2 0.0522m2
Diaphragm Mass (Mms) 71 Grams
Coil Inductance 1.3mH
