B&C 12 NDL 76

B&C 12 NDL 76

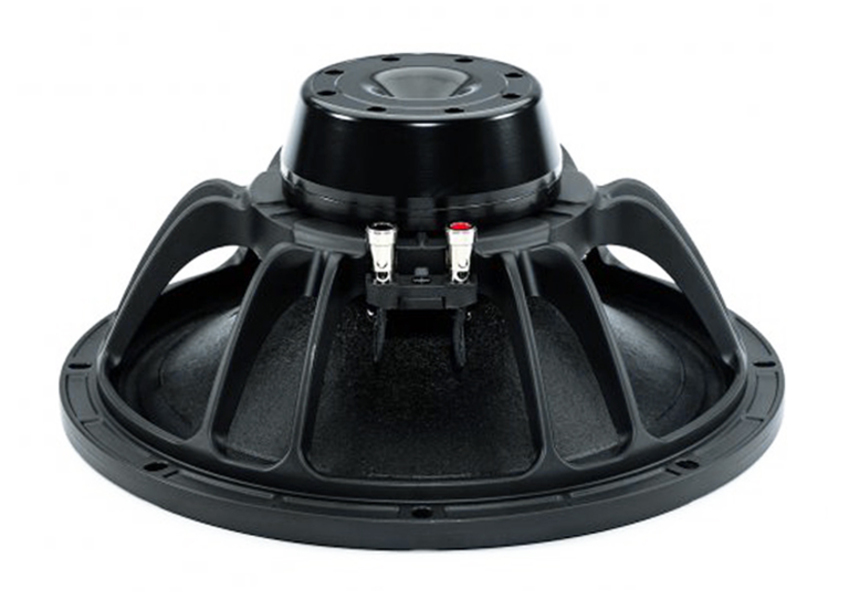

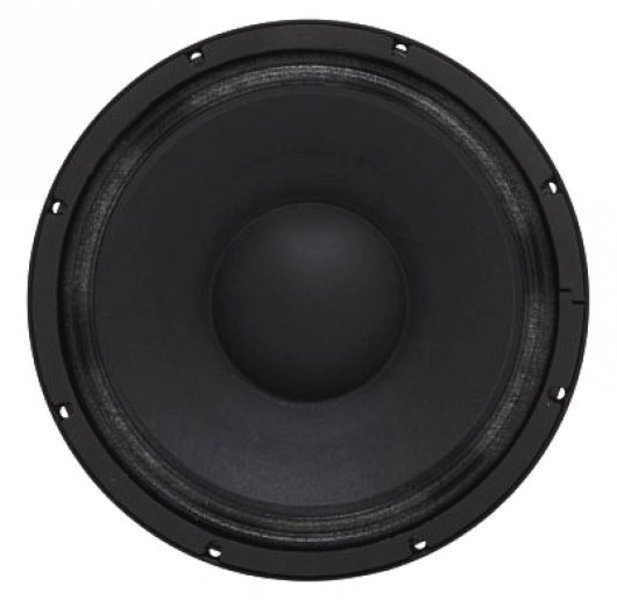

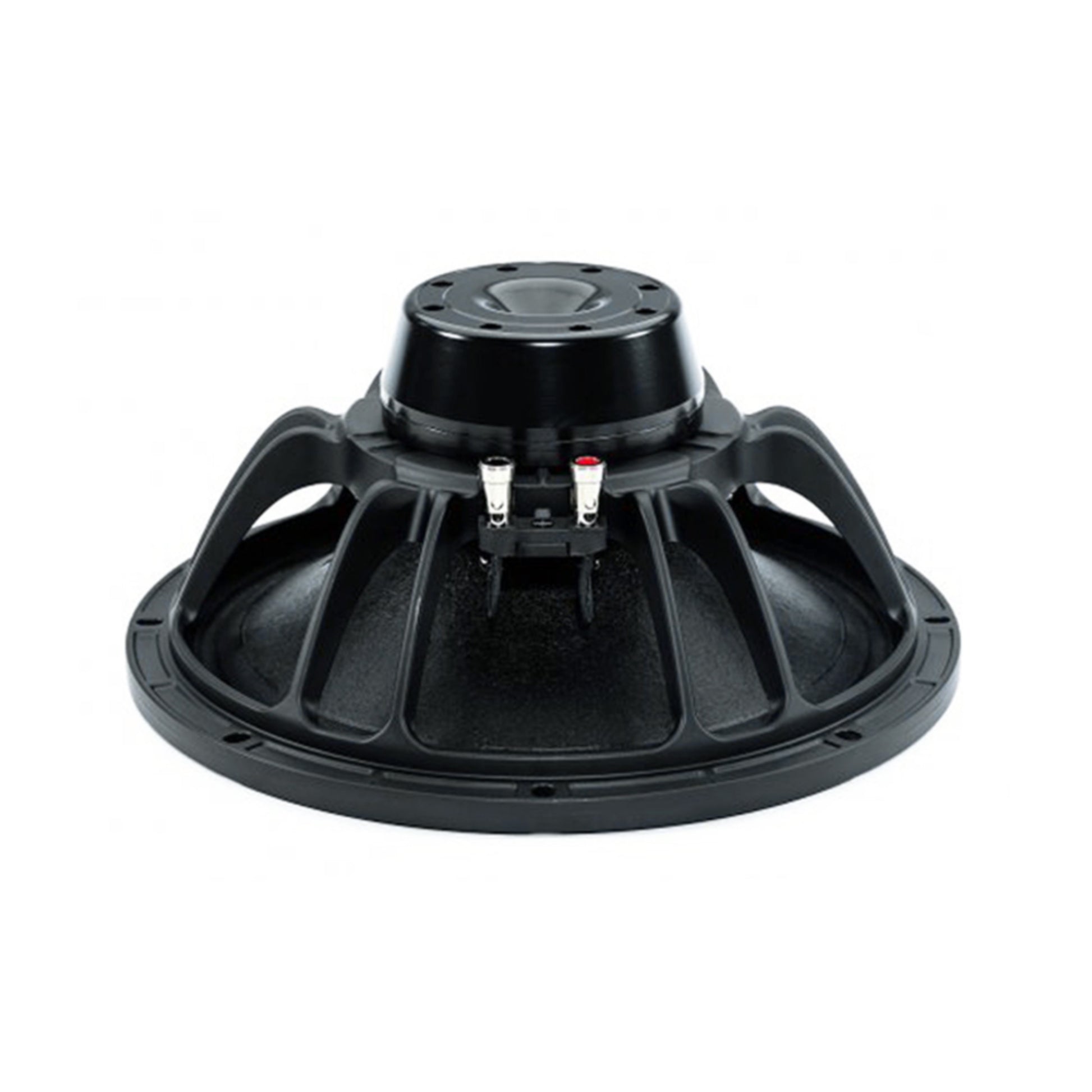

Speaker B&C Speakers 12NDL76, 8 ohm, 12 inch

More Information

  • 800 W continuous program power capacity
  • 76 mm (3 in) aluminium voice coil
  • 50 - 2000 Hz response
  • 100 dB sensitivity
  • Neodymium magnet allows a very light yet powerful motor assembly
  • Ventilated voice coil gap for reduced power compression

Technical Specification

Nominal Basket Diameter : 12" / 319mm

Impedance : 4 or 8 ohms

RMS Power Rating : 400 Watts

Program Power : 800 Watts

Progrm Power : 800 Watts

Frequency Response : 50Hz - 2.0kHZ

Sensitivity (1W/1 m) : 100dB

Voice Coil Diameter : 3" / 76mm

Winding Material : aluminum

Former Material : Fiberglass

Winding Depth : .63" / 16mm

Magnetic gap depth : .4" / 10.5mm

Flux Density : 1.25T
